Generac Guardian 10kW - Compact Essential Circuit Protection
10,000 Watts (LP). 16-Circuit Switch Included. WiFi Enabled.

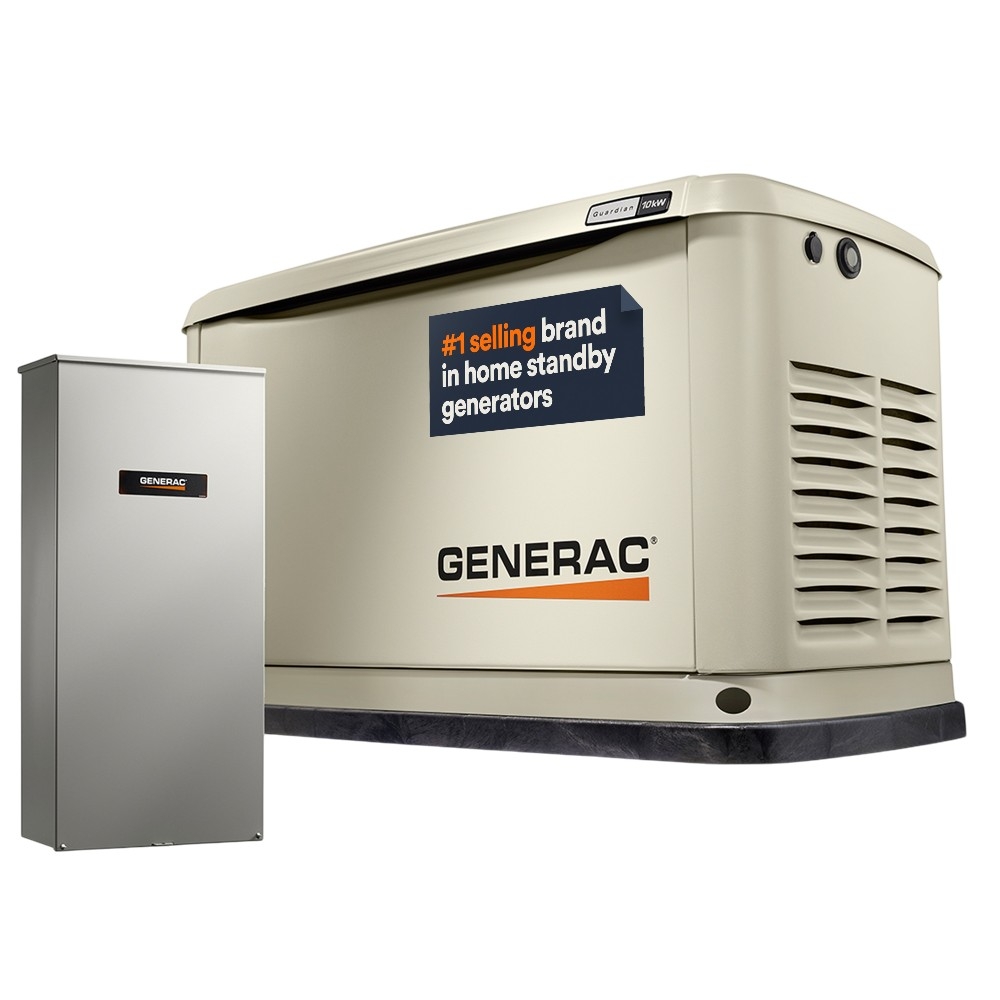

The Generac Guardian® 10kW (Model 7172) provides a reliable, automatic backup solution for homeowners who need to power their most essential circuits. This package includes a 100-Amp, 16-circuit transfer switch, allowing for a seamless transition during outages. Powered by the G-Force 460cc engine and featuring True Power™ Technology, it delivers clean, stable electricity safe for all your sensitive home electronics.
Advanced Technology & Smart Monitoring
Stay informed no matter where you are with integrated Mobile Link™ Wi-Fi. Monitor your generator's status, receive maintenance alerts, and view performance data directly on your smartphone, tablet, or PC. The Evolution™ 2.0 Controller offers a multilingual LCD display for intuitive operation, while the Quiet-Test™ Mode ensures the unit runs its weekly exercise cycle at a lower RPM to reduce noise and conserve fuel.
True Power™ Technology
Delivers utility-grade power with less than 5% total harmonic distortion (THD), ensuring your laptops, smart TVs, and appliances run smoothly and safely.
RhinoCoat™ Aluminum Enclosure
The corrosion-resistant aluminum housing is finished with RhinoCoat™ powder coating, providing superior durability against harsh outdoor elements and coastal salt air.
Technical Specifications
| GENERAC GUARDIAN 10kW (7172) DATA SHEET | |
|---|---|
| Rated Watts (LP / NG) | 10,000 Watts (LP) / 9,000 Watts (NG) |
| Transfer Switch Included | 100-Amp, 16-Circuit, NEMA 3R (Outdoor-Rated) |

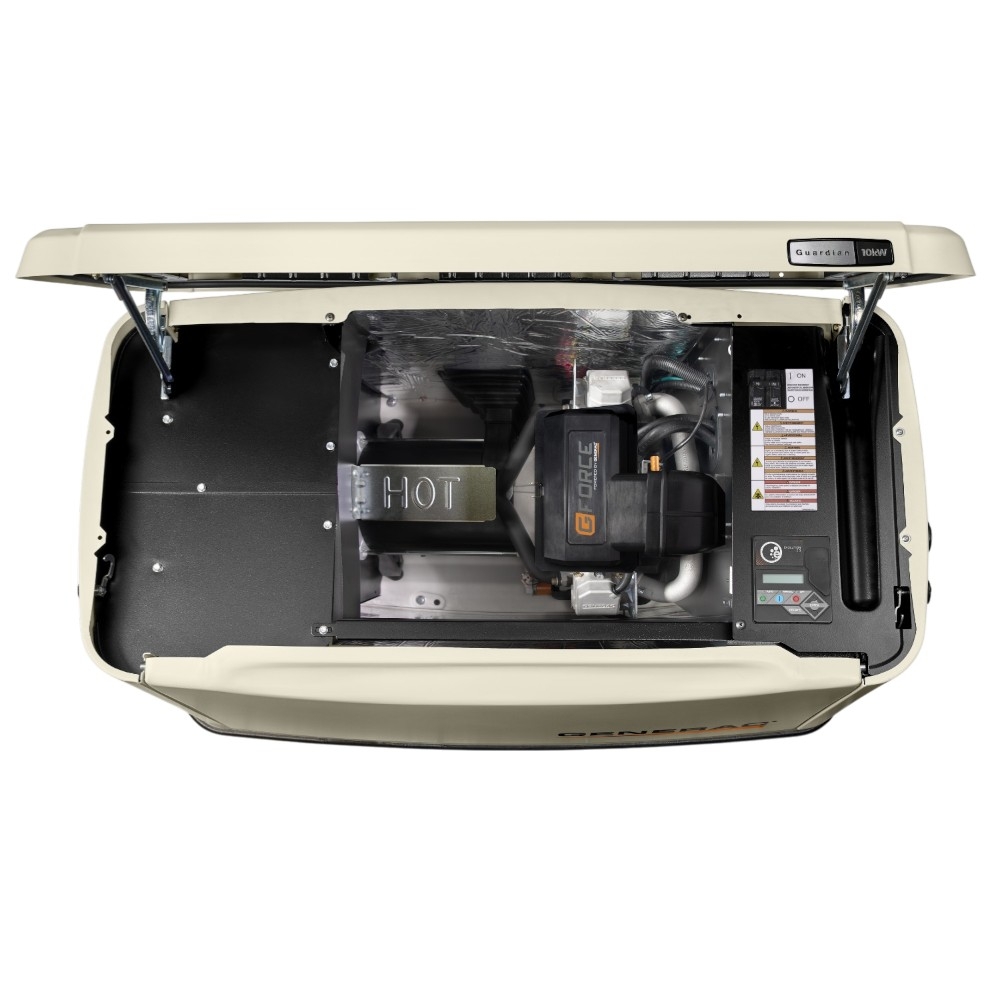

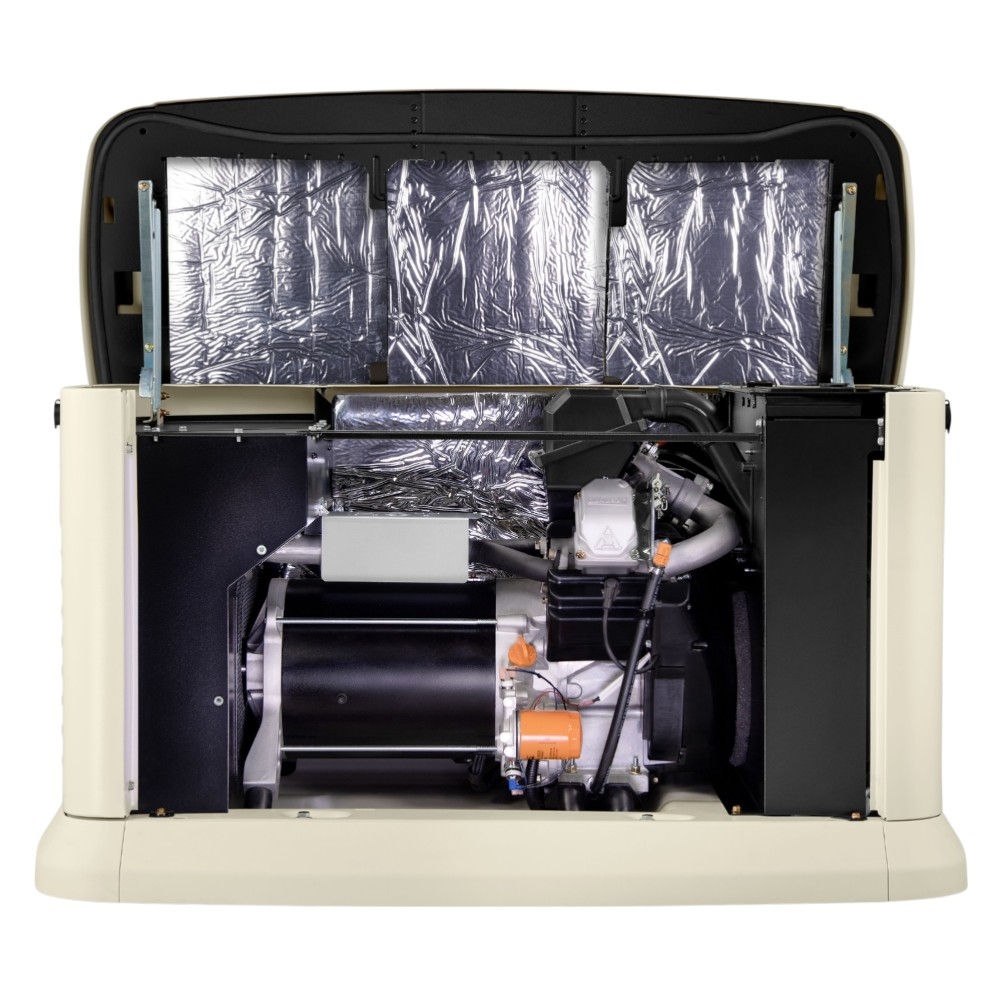

| Engine Type | Generac 460cc OHVI G-Force |
| Voltage / Frequency | 120/240V | 60Hz (Single-Phase) |
| Fuel Consumption (LP @ 50%) | 0.97 gal/hr |
| Fuel Consumption (NG @ 50%) | 101 ft³/hr |
| Noise Level (@ 7m) | 61 dB |
| THD (Total Harmonic Distortion) | Less than 5% |
| Weight & Dimensions | 335 lbs | 48" x 25" x 29" |
Core Features & Benefits
- Automatic Operation: Constantly monitors utility power and kicks in automatically when power is lost.
- 16-Circuit Switch: Safely powers your home's most essential 120V and 240V circuits including lights, fridge, and HVAC components.
- Flexible Fuel Options: Easily switches between Liquid Propane (LP) and Natural Gas (NG) during installation.
- Low Maintenance: Full-pressure lubrication system with a 2-year oil change interval.
- Certified 18" Installation: Third-party certified for placement as close as 18" from the home (subject to local fire codes).
What's Included?
- 10kW Air-Cooled Standby Generator (7172)
- 100-Amp 16-Circuit NEMA 3R Automatic Transfer Switch
- 14" Flexible Fuel Line Connector & Smart Battery Charger
- Composite Mounting Pad (Safe for direct installation on soil)
- Battery Not Included: Requires 12V Group 26R 540 CCA (Minimum).
Brand: Generac Power Systems
Warranty: 5-Year Limited Warranty (Consumer & Commercial)
Certifications: UL Listed / CSA Certified / Made in USA
Note: Professional installation by a licensed electrician and gas technician is required.
Generac Standby Generator, 10kW | With 16-Circuit Transfer Switch | WiFi Enabled
- Product Code: G0071720
Generac Guardian 10kW - Compact Essential Circuit Protection
10,000 Watts (LP). 16-Circuit Switch Included. WiFi Enabled.
The Generac Guardian® 10kW (Model 7172) provides a reliable, automatic backup solution for homeowners who need to power their most essential circuits. This package includes a 100-Amp, 16-circuit transfer switch, allowing for a seamless transition during outages. Powered by the G-Force 460cc engine and featuring True Power™ Technology, it delivers clean, stable electricity safe for all your sensitive home electronics.
Advanced Technology & Smart Monitoring
Stay informed no matter where you are with integrated Mobile Link™ Wi-Fi. Monitor your generator's status, receive maintenance alerts, and view performance data directly on your smartphone, tablet, or PC. The Evolution™ 2.0 Controller offers a multilingual LCD display for intuitive operation, while the Quiet-Test™ Mode ensures the unit runs its weekly exercise cycle at a lower RPM to reduce noise and conserve fuel.
True Power™ Technology
Delivers utility-grade power with less than 5% total harmonic distortion (THD), ensuring your laptops, smart TVs, and appliances run smoothly and safely.
RhinoCoat™ Aluminum Enclosure
The corrosion-resistant aluminum housing is finished with RhinoCoat™ powder coating, providing superior durability against harsh outdoor elements and coastal salt air.
Technical Specifications
| GENERAC GUARDIAN 10kW (7172) DATA SHEET | |
|---|---|
| Rated Watts (LP / NG) | 10,000 Watts (LP) / 9,000 Watts (NG) |
| Transfer Switch Included | 100-Amp, 16-Circuit, NEMA 3R (Outdoor-Rated) |
| Engine Type | Generac 460cc OHVI G-Force |
| Voltage / Frequency | 120/240V | 60Hz (Single-Phase) |
| Fuel Consumption (LP @ 50%) | 0.97 gal/hr |
| Fuel Consumption (NG @ 50%) | 101 ft³/hr |
| Noise Level (@ 7m) | 61 dB |
| THD (Total Harmonic Distortion) | Less than 5% |
| Weight & Dimensions | 335 lbs | 48" x 25" x 29" |
Core Features & Benefits
- Automatic Operation: Constantly monitors utility power and kicks in automatically when power is lost.
- 16-Circuit Switch: Safely powers your home's most essential 120V and 240V circuits including lights, fridge, and HVAC components.
- Flexible Fuel Options: Easily switches between Liquid Propane (LP) and Natural Gas (NG) during installation.
- Low Maintenance: Full-pressure lubrication system with a 2-year oil change interval.
- Certified 18" Installation: Third-party certified for placement as close as 18" from the home (subject to local fire codes).
What's Included?
- 10kW Air-Cooled Standby Generator (7172)
- 100-Amp 16-Circuit NEMA 3R Automatic Transfer Switch
- 14" Flexible Fuel Line Connector & Smart Battery Charger
- Composite Mounting Pad (Safe for direct installation on soil)
- Battery Not Included: Requires 12V Group 26R 540 CCA (Minimum).
Brand: Generac Power Systems
Warranty: 5-Year Limited Warranty (Consumer & Commercial)
Certifications: UL Listed / CSA Certified / Made in USA
Note: Professional installation by a licensed electrician and gas technician is required.
- Brand: Generac
- Availability: In Stock
USD 2,100.00
