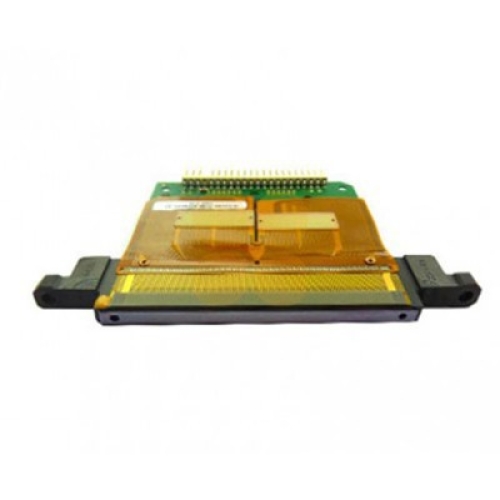

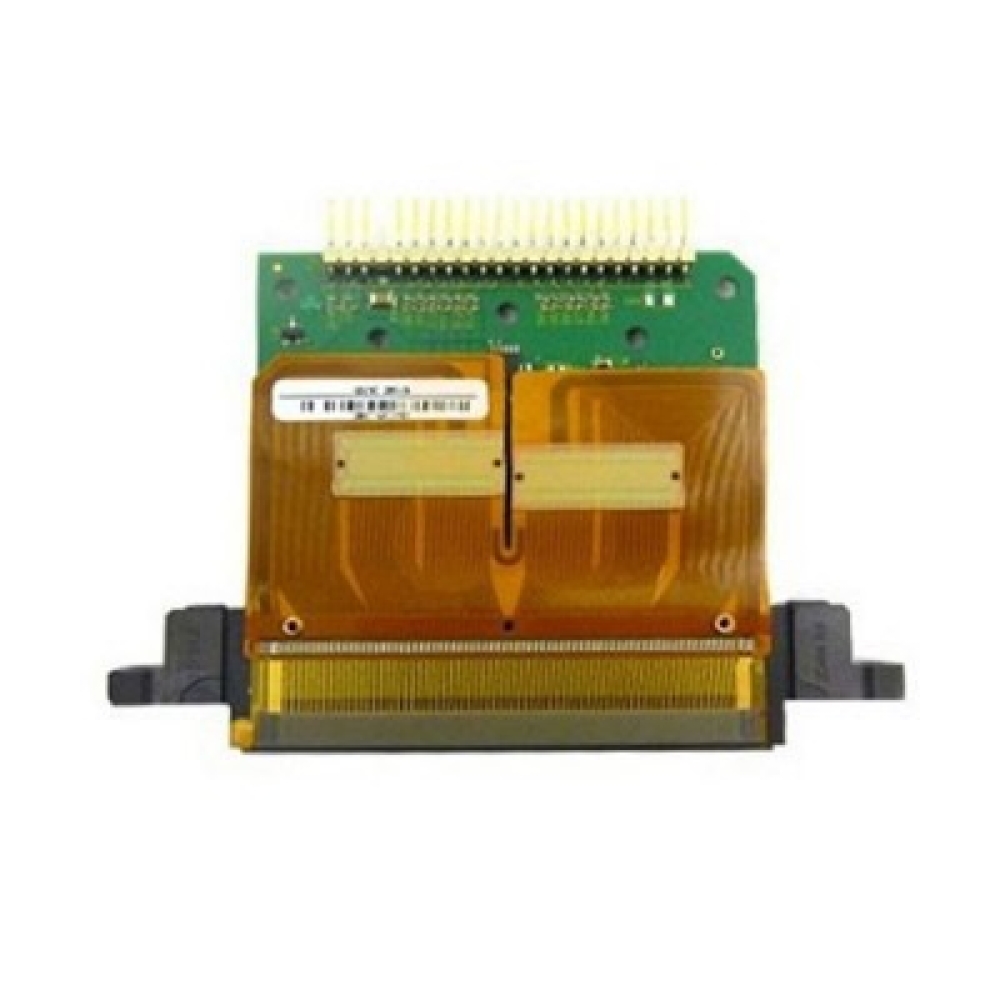

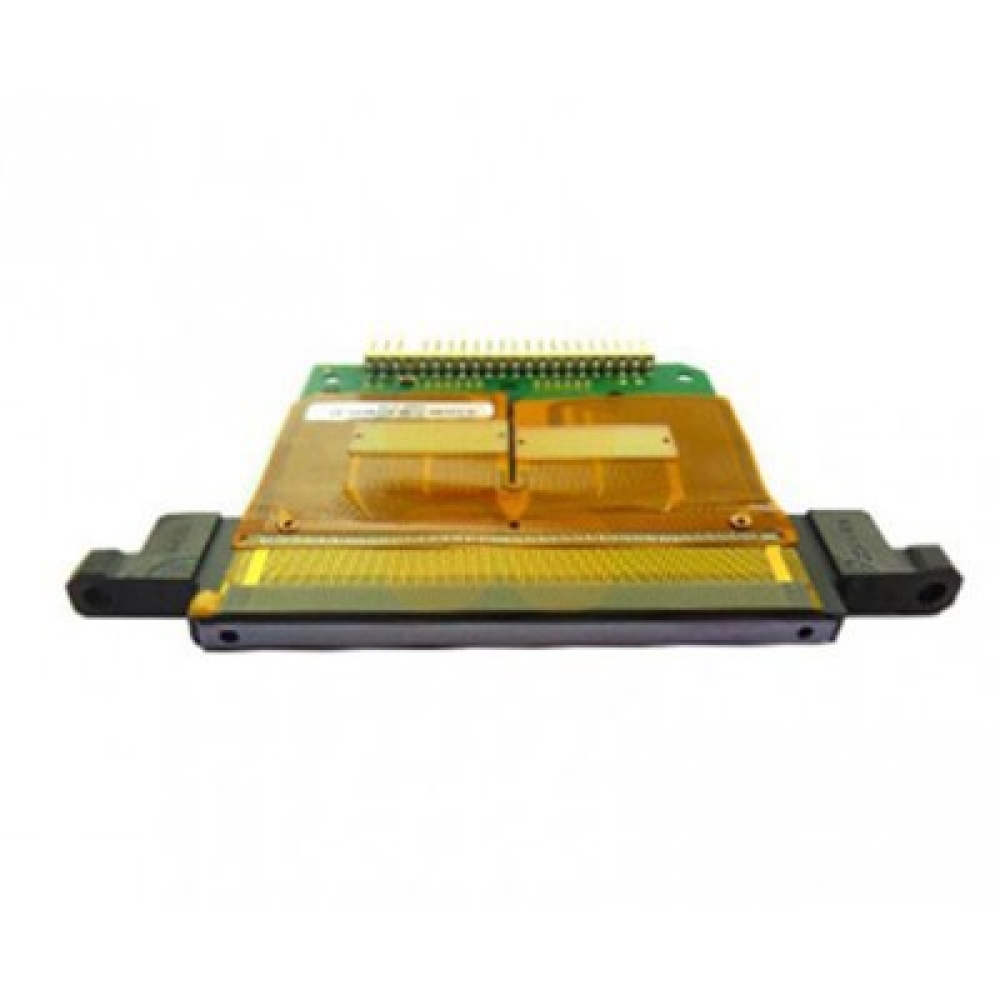

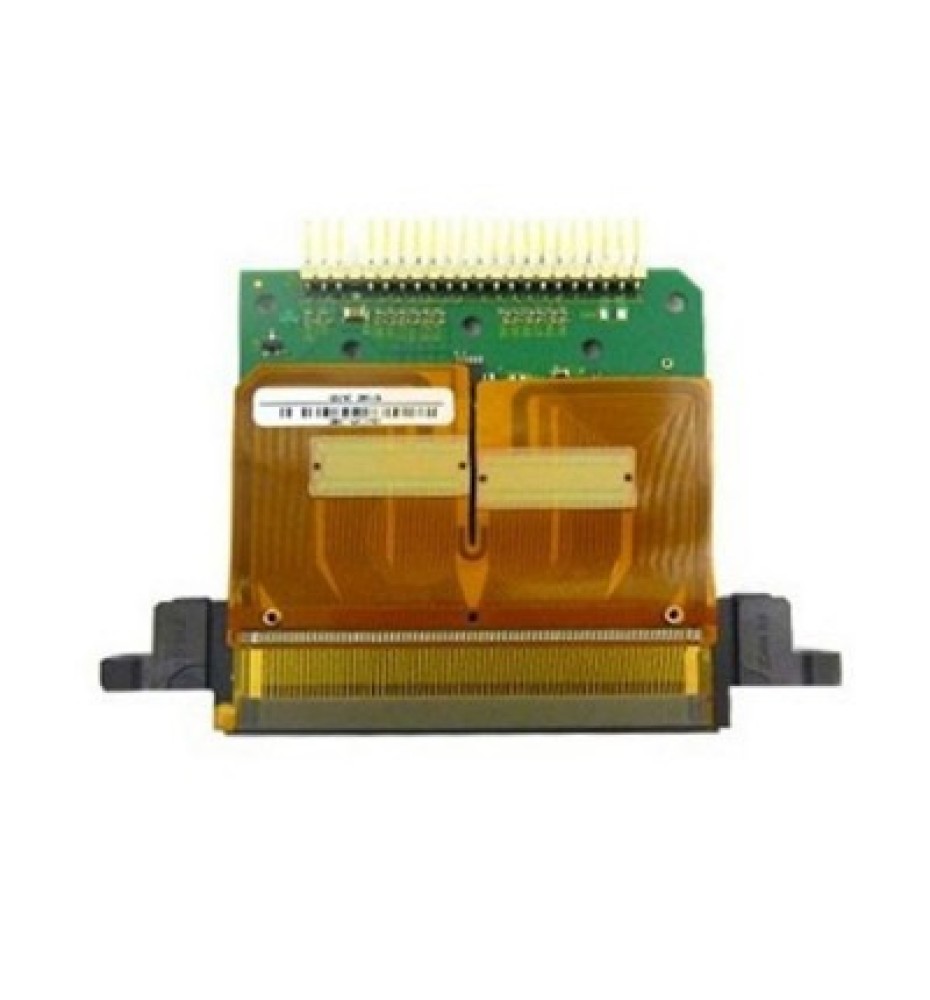

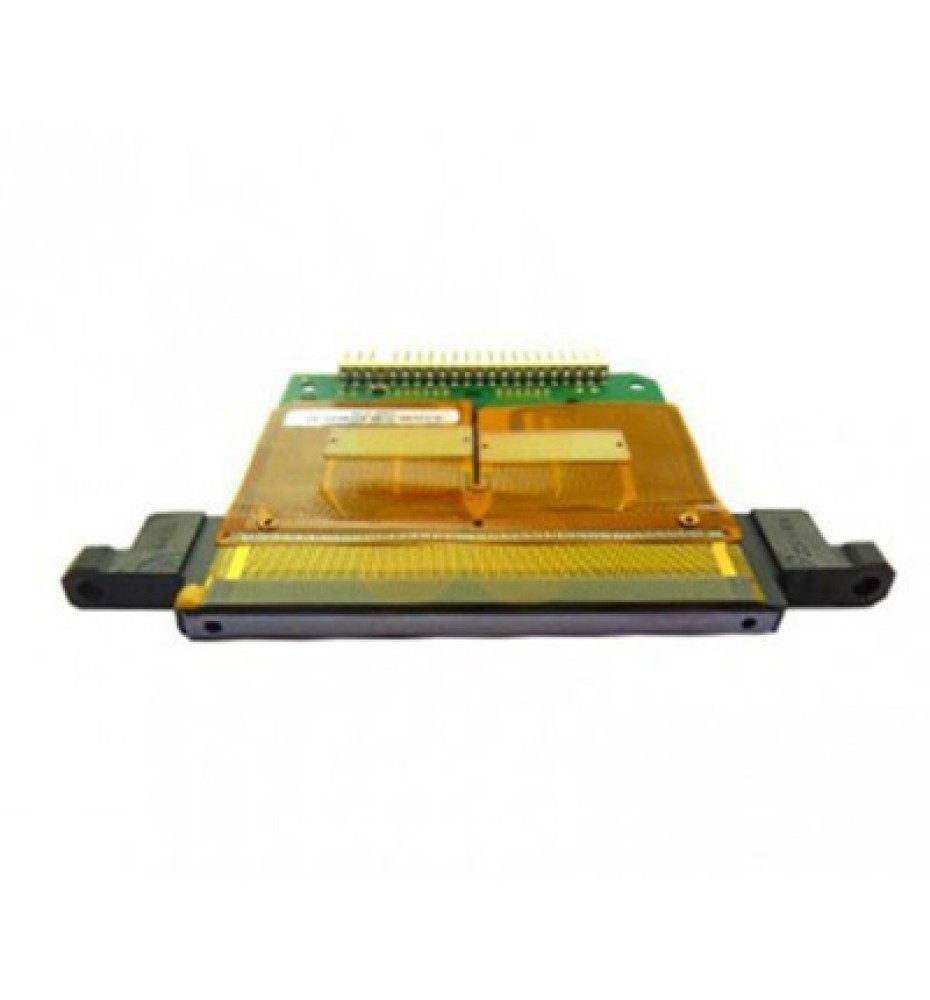

SPECTRA SAPPHIRE QS-256 / 10PL PRINTHEAD
To be used with:
Spectra Sapphire QS-256
Durst Rho P10 160 / Rho 1012 / Rho 500R / Rho 750 HS / Rho 750 Presto / Rho P10 200 / Rho P10 250 / Rho P10 320R
Fujifilm DMP-3000 / DMP-5000
Inktec Jetrix 2513FRQ / Jetrix 3015FQ / Jetrix 2513FQ
Polytype VIRTU Quantum 25 / VIRTU Quantum 35
WP Digital RS25 / RS35
Remarks: Original
| Model | PRH-SPE-015 |
| Technology | VersaDrop™ jetting |
| Print Width | 64.77mm (2.55") |
| Nominal Drop Size | 10 picoliter |
| Adj. Range for Droplet Size | 10 to 30 picoliter |
| Tot. Amount of Nozzles | 256 |
| Nozzle Spacing | 254 microns |
| Firing Frequency | 50 kHz (16 kHz for 30 picoliter droplets) |
| Operating Temperature | up to 90°C |
| Ink Compatibility | UV curable, Organic solvents, and aqueous inks |
Spectra Sapphire QS-256 / 10PL Printhead
- Product Code: SP36341
SPECTRA SAPPHIRE QS-256 / 10PL PRINTHEAD
To be used with:
Spectra Sapphire QS-256
Durst Rho P10 160 / Rho 1012 / Rho 500R / Rho 750 HS / Rho 750 Presto / Rho P10 200 / Rho P10 250 / Rho P10 320R
Fujifilm DMP-3000 / DMP-5000
Inktec Jetrix 2513FRQ / Jetrix 3015FQ / Jetrix 2513FQ
Polytype VIRTU Quantum 25 / VIRTU Quantum 35
WP Digital RS25 / RS35
Remarks: Original
| Model | PRH-SPE-015 |
| Technology | VersaDrop™ jetting |
| Print Width | 64.77mm (2.55") |
| Nominal Drop Size | 10 picoliter |
| Adj. Range for Droplet Size | 10 to 30 picoliter |
| Tot. Amount of Nozzles | 256 |
| Nozzle Spacing | 254 microns |
| Firing Frequency | 50 kHz (16 kHz for 30 picoliter droplets) |
| Operating Temperature | up to 90°C |
| Ink Compatibility | UV curable, Organic solvents, and aqueous inks |
- Brand: Spectra
- Availability: In Stock
USD 1,145.00
Tags:Spectra Printhead
