Module Types: Q56-100G-SR2H-A

Brand: NVIDIA/Mellanox Compatible / Generic

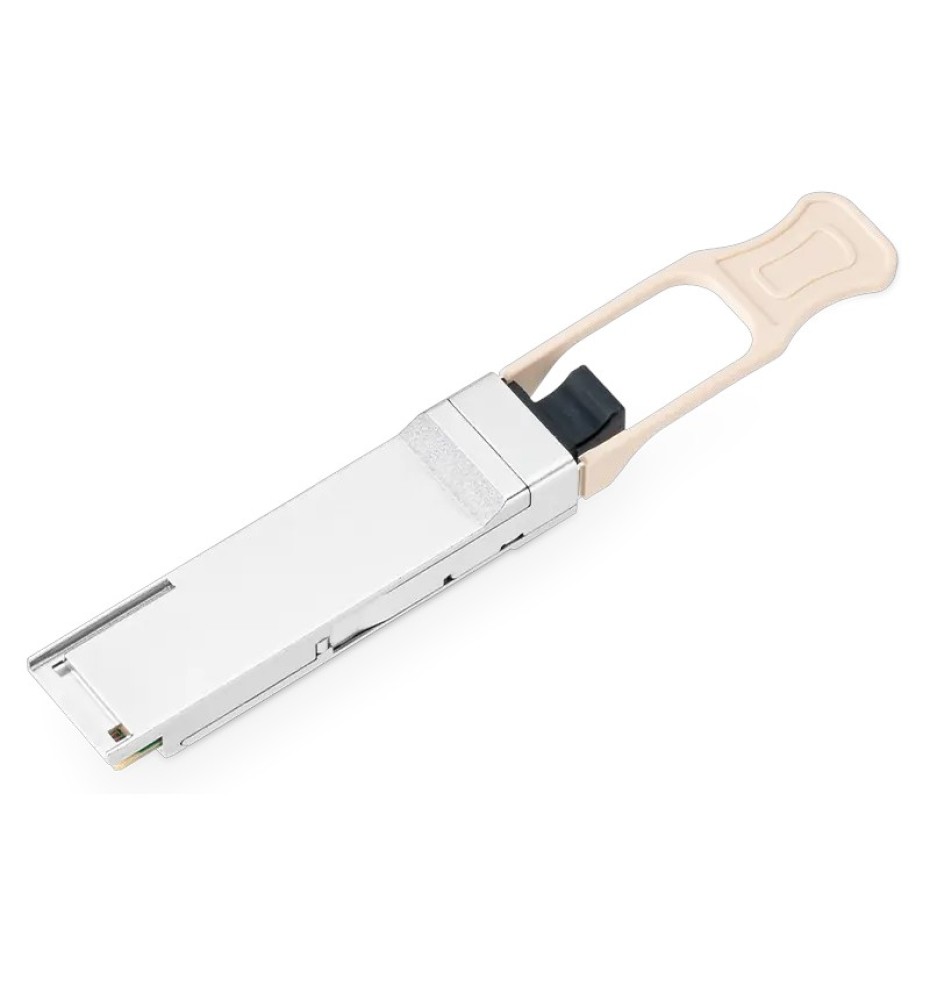

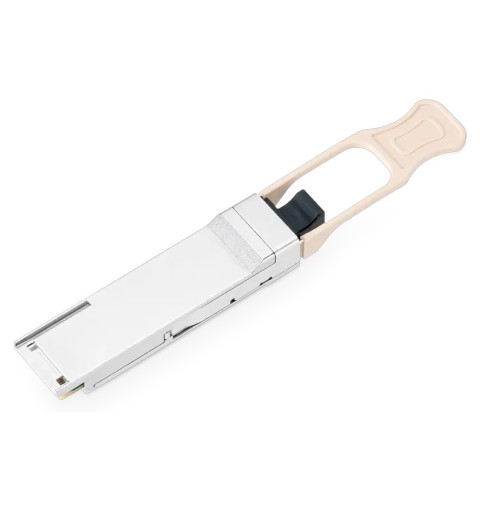

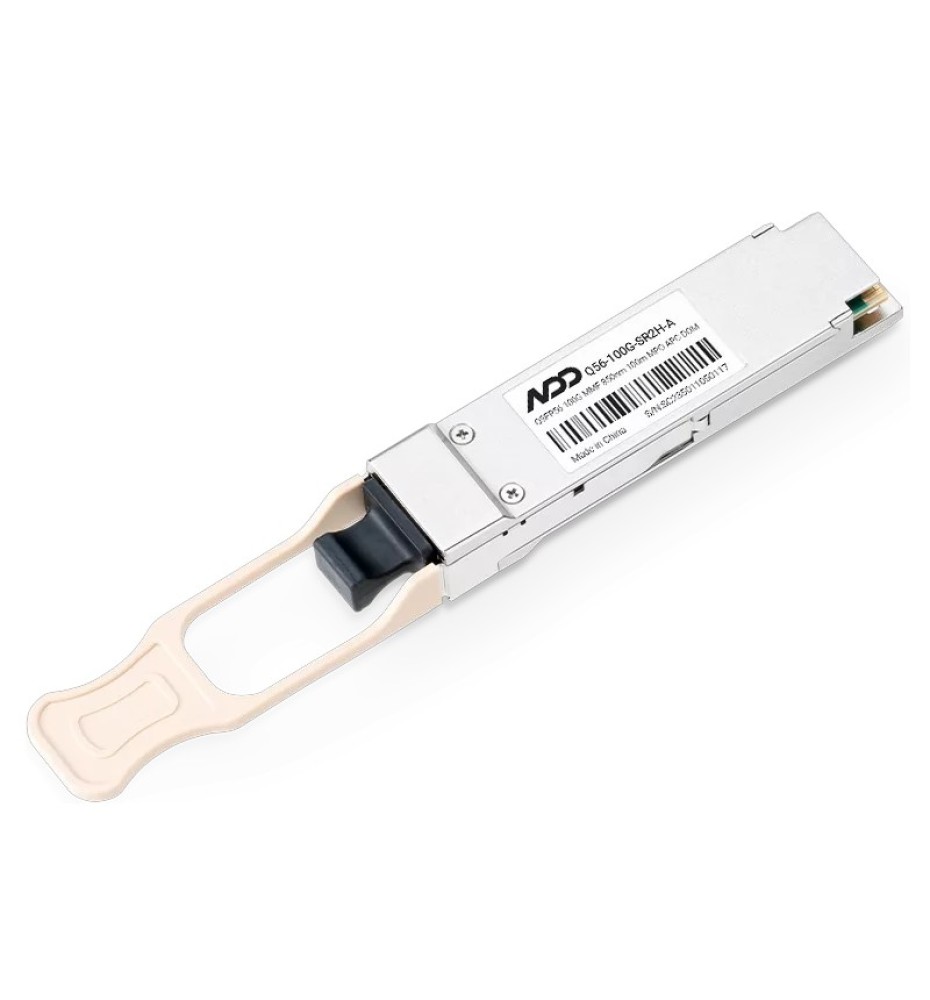

Transceiver : NVIDIA/Mellanox Q56-100G-SR2H-A Compatible 100GBASE-SR2 / InfiniBand HDR QSFP56 Optical Transceiver Module, 850nm VCSEL Transmitter, PIN Receiver Array, Up to 100m Reach over OM3/OM4 Multimode Fiber (MMF), MPO-12/APC or MTP-12 APC Connector, DOM/DDM Support, 2x53.125Gb/s PAM4 Electrical/Optical Modulation, Max Power Consumption ≤3.5W

The NVIDIA/Mellanox Q56-100G-SR2H-A Compatible 100G SR2 QSFP56 Optical Transceiver Module is a high-performance 100Gb/s 2-channel optical transceiver designed for demanding High-Performance Computing (HPC), AI supercomputing, and cloud data center environments. Utilizing 2 independent 53.125Gb/s PAM4 optical channels at an 850nm wavelength, this transceiver converts electrical data for up to 100 meters high-speed transmission over multimode fiber (MMF).

Engineered with an MPO-12/APC (Angled Physical Contact) connector interface, this QSFP56 transceiver minimizes optical back reflection to maximize signal integrity in high-density optical fabrics. It fully complies with InfiniBand HDR protocols, QSFP56 MSA standards, IEEE 802.3 100GBASE-SR2, and 100G Ethernet specifications. Equipped with integrated Digital Diagnostic Monitoring (DOM/DDM) via the I2C interface, it provides real-time tracking of operating temperature, supply voltage, laser bias current, and optical transmit/receive power levels. It is 100% verified for seamless plug-and-play compatibility with NVIDIA Quantum QM8700 / QM8790 InfiniBand Switches and ConnectX-6 / ConnectX-7 / BlueField-3 DPU Network Interface Cards (NICs / HCAs).

Key Features

• Optimized 100G PAM4 Architecture: Integrates two 53.125Gb/s PAM4 optical lanes to achieve an aggregated 100Gb/s throughput with ultra-low power and latency.

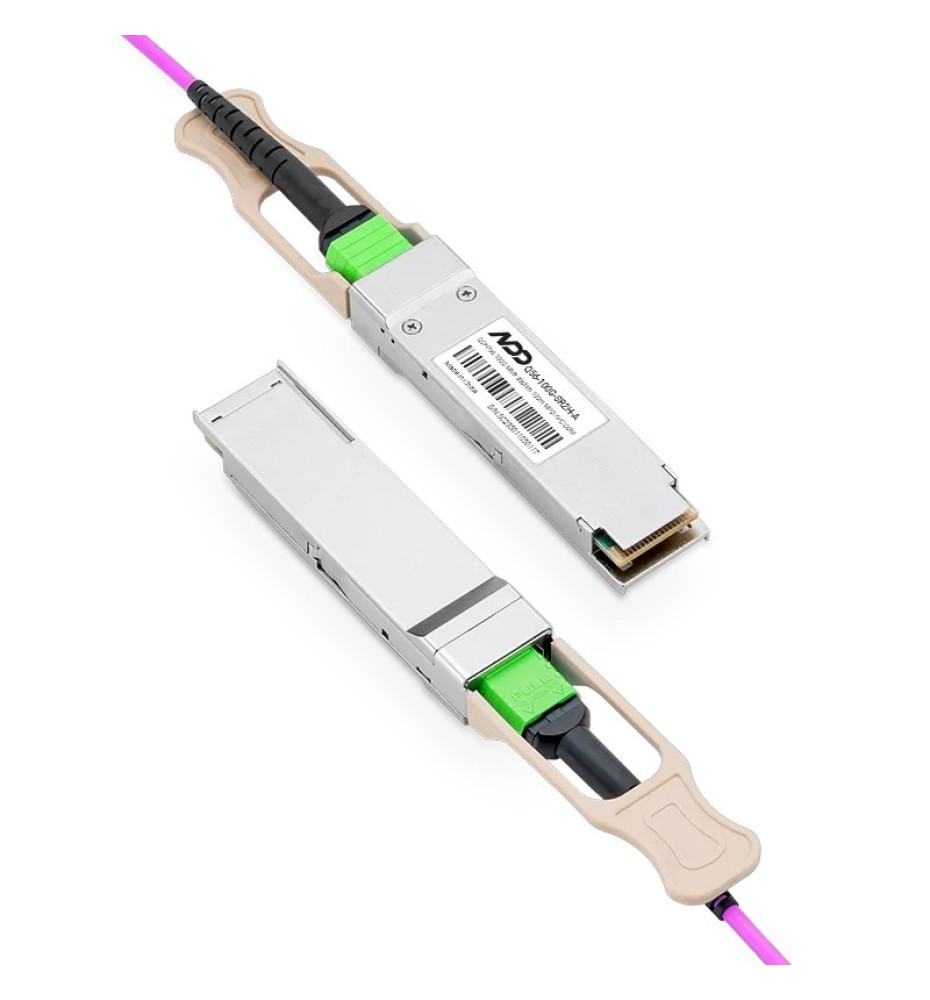

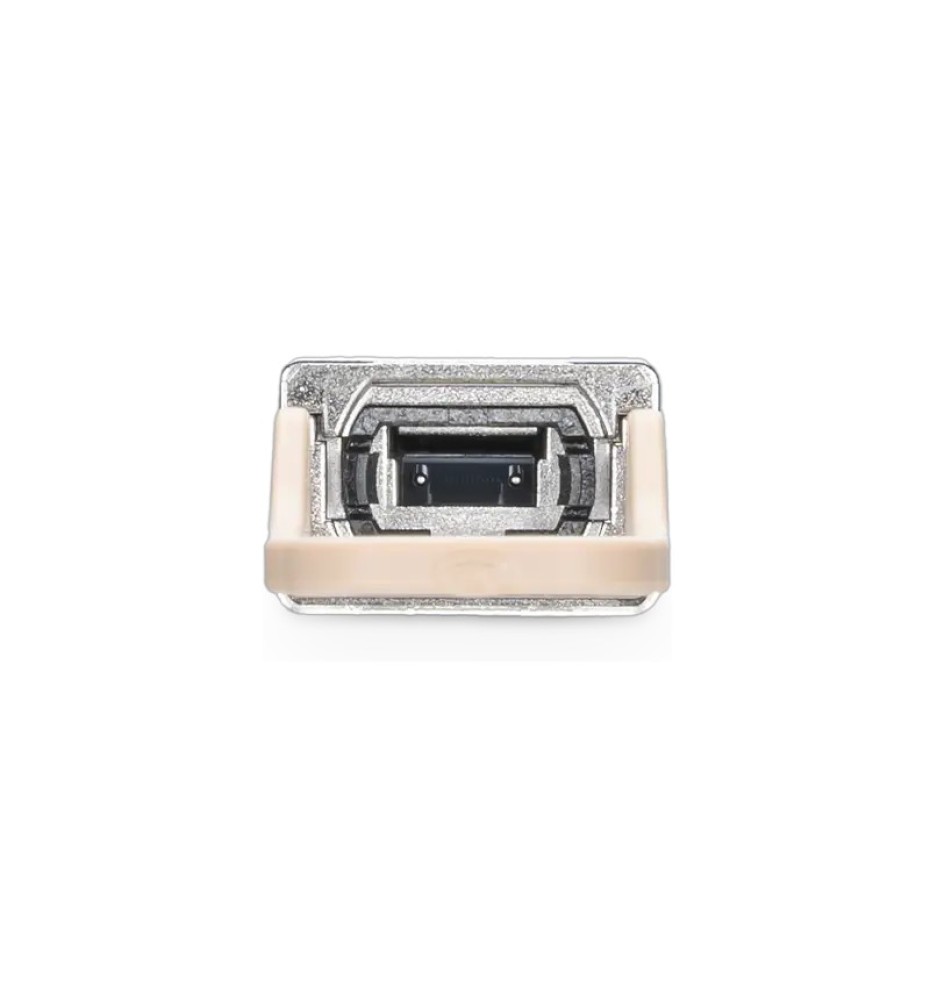

• MPO-12 APC Interface: Features an Angled Physical Contact (APC) MPO-12 connector to reduce optical return loss and ensure superior signal clarity.
• Multimode Fiber Reach: Supports reliable links up to 100 meters over OM4 MMF (up to 70m over OM3 MMF) using standard 850nm VCSEL technology.
• Real-Time Digital Diagnostics (DOM): Full Digital Diagnostic Monitoring support tracking operational parameters with customizable warning and alarm thresholds.
• Low Power Consumption: Operates efficiently with a maximum power consumption of ≤3.5W to reduce thermal load in high-density rack configurations.
• 100% Hardware Interoperability: Built to QSFP56 MSA specifications, fully compliant with IBTA Industrial BER standards and RoHS protocols.

Technical Specifications
