Cable Types: MFS1S00-H Series (MFS1S00-H003E / MFS1S00-H003V / MFS1S00-H003-LL / 980-9I124-00H003 / 980-9I457-00H003)

Brand: NVIDIA/Mellanox Compatible / Generic

Cable : 3m (10ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 5m (16ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 7m (23ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 10m (33ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 15m (49ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 20m (66ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 25m (82ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 30m (98ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 35m (115ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 40m (131ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 50m (164ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 60m (197ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 70m (230ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 80m (262ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 90m (295ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

Cable : 100m (328ft) Compatible 200G AOC QSFP56 4x50G PAM4 Active Optical Cable

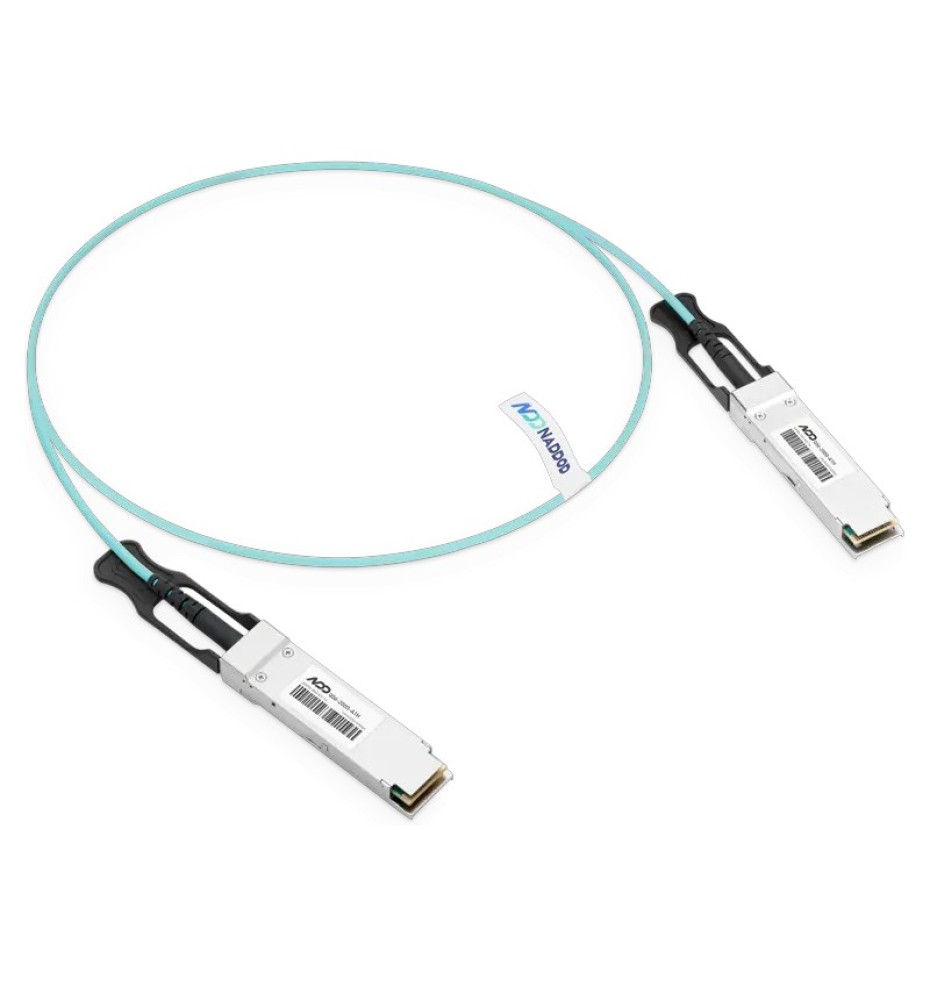

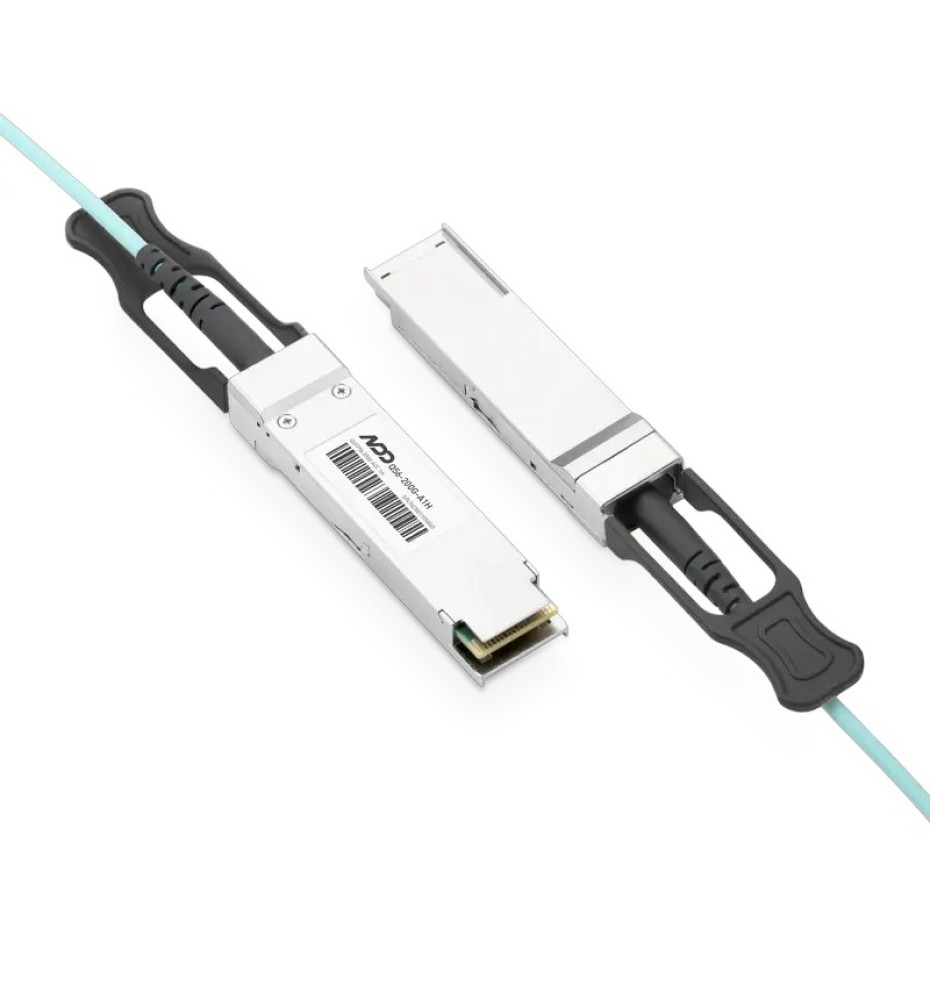

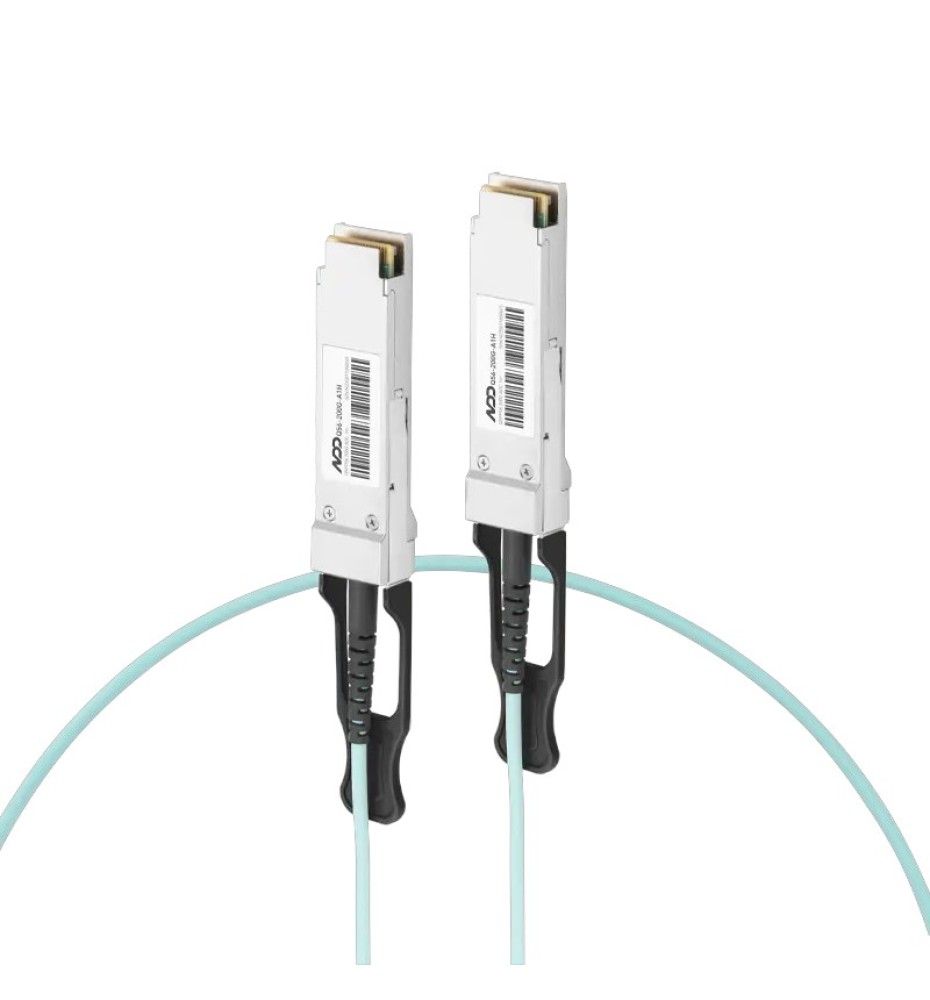

The NVIDIA/Mellanox MFS1S00-H Compatible 200G AOC QSFP56 Active Optical Cable is a high-speed, 4-channel active optical cable assembly designed for short to medium-range interconnects in High-Performance Computing (HPC), AI supercomputing clusters, and high-density 200G data center fabrics. Utilizing 850nm VCSEL technology and operating over 4x50G PAM4 optical channels, this cable provides a power-efficient alternative to copper cables for lengths up to 100 meters.

Engineered with hot-pluggable QSFP56 connectors on both ends and an eco-friendly LSZH (Low Smoke Zero Halogen) cable jacket, this active optical cable ensures lightweight, flexible routing with tight bend radiuses in dense switch racks. It fully complies with InfiniBand HDR protocols, QSFP56 MSA specifications, and 200G Ethernet standards. It is 100% verified for seamless plug-and-play operation with NVIDIA Quantum QM8700 / QM8790 InfiniBand Switches and ConnectX-6 / ConnectX-7 Network Interface Cards (NICs / HCAs).

Key Features

• High-Throughput 200G PAM4 Architecture: Integrates four 50G PAM4 electrical/optical channels to deliver an aggregated 200Gb/s throughput with ultra-low transmission latency.
• Lightweight & Flexible LSZH Assembly: Constructed with a Low Smoke Zero Halogen jacket and a tight 30mm minimum bend radius for easy cable management in crowded racks.
• Power-Efficient VCSEL Technology: Features low power consumption of approximately 4.35W per cable end, helping lower overall data center cooling overhead.
• Extended Reach Capabilities: Available in precise lengths ranging from 3m up to 100m over multimode fiber (MMF) infrastructure.
• Data Center Ready: Fully compliant with QSFP56 MSA, IBTA Industrial BER standards, IEEE 802.3 Ethernet protocols, and RoHS environmental guidelines.

Technical Specifications
