Model / Part Number: B3220 | 900-9D3B6-00SV-AA0 (Crypto Disabled) / 900-9D3B6-00CV-AA0 (Crypto Enabled)

Brand: NVIDIA

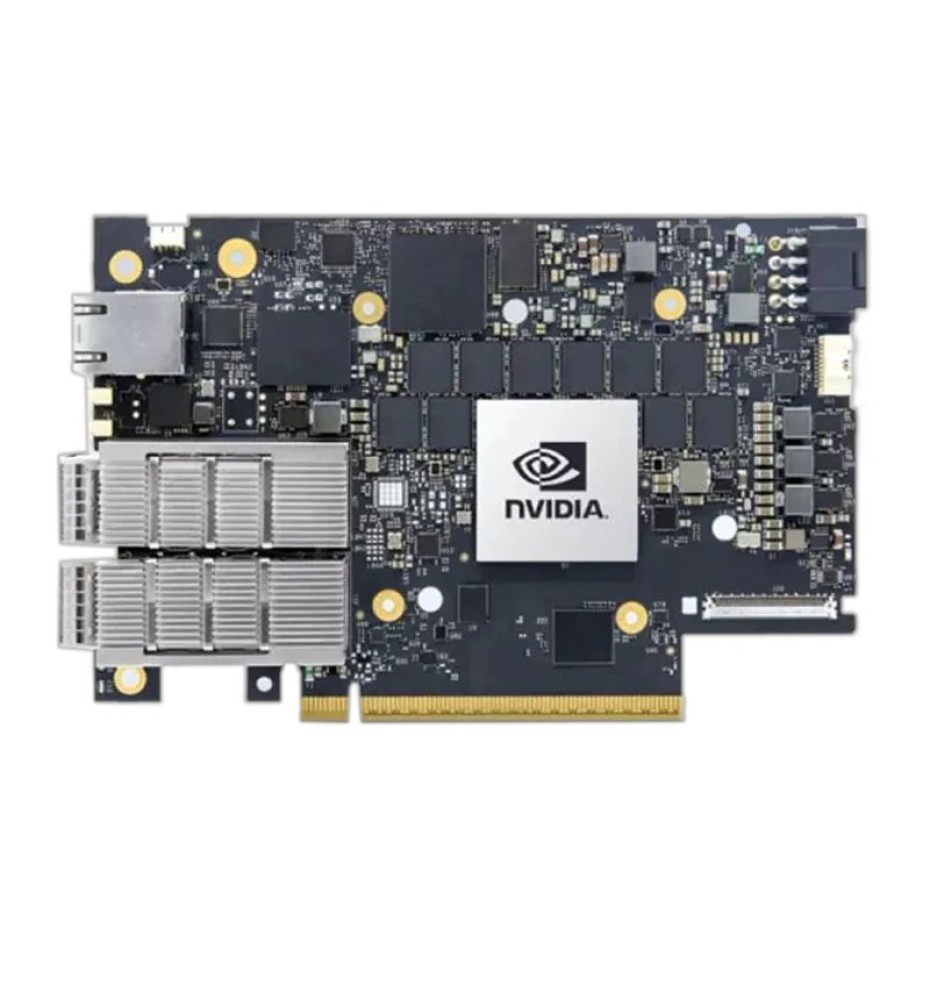

Adapter Card : NVIDIA B3220 BlueField-3 DPU, P-Series FHHL, 200GbE (Default Mode) / NDR200 IB, Single-Slot Dual-port QSFP112, PCIe Gen5.0 x16 with x16 PCIe Extension Option, 16x Arm Cores, 32GB Onboard DDR, Integrated BMC, Tall Bracket (Crypto Enabled & Disabled Options)

The NVIDIA B3220 BlueField-3 DPU (Data Processing Unit) is an advanced cloud infrastructure processor engineered to transform enterprise data centers, AI fabrics, and edge environments into software-defined, hardware-accelerated infrastructures. Featuring a Dual-port QSFP112 network interface, the B3220 delivers aggregate throughputs of up to 200Gb/s Ethernet (default) or NDR200 InfiniBand per port, offloading network traffic, storage protocols, and security tasks directly from the host CPU.

Built on a Full-Height Half-Length (FHHL) P-Series form factor, the B3220 integrates 16 Arm cores paired with 32GB of onboard DDR memory, an integrated Baseboard Management Controller (BMC), and a PCIe 5.0 x16 host interface with optional x16 PCIe extension via auxiliary passive card support. By isolating infrastructure management from tenant application workloads, the BlueField-3 DPU establishes a zero-trust architecture, streamlines operational efficiency, and significantly reduces overall Total Cost of Ownership (TCO). Available in both Crypto Disabled (900-9D3B6-00SV-AA0) and Crypto Enabled (900-9D3B6-00CV-AA0) variants to suit varied compliance and security specifications.

Key Features

• Dual-Port 200Gb/s Connectivity: Features dual QSFP112 ports supporting 200GbE (default) and NDR200 InfiniBand speeds, backward compatible with HDR/EDR/FDR and 100G/50G/25G rates.
• 16 Arm Core Infrastructure Engine: Powered by 16 Arm cores and 32GB onboard DDR memory to offload software-defined networking, storage virtualization, and management workloads.
• Crypto Enabled & Disabled Options: Available in Crypto Disabled (900-9D3B6-00SV-AA0) for general environments and Crypto Enabled (900-9D3B6-00CV-AA0) for hardware-accelerated encryption.
• PCIe Gen 5.0 x16 Expansion Capability: High-bandwidth host connection with SERDES @ 32GT/s, supporting additional PCIe x16 expansion via auxiliary passive cards and Cabline SA-II Plus harnesses.
• Zero-Trust Cloud Architecture: Completely decouples data center infrastructure operations from business applications for isolated, secure multi-tenant hosting.
• FHHL Single-Slot Profile with Tall Bracket: Standard Full-Height Half-Length dimensions (111.15mm x 167.65mm) with integrated BMC for enterprise rack servers.
