Model / Part Number: MMS4X50-NM (980-9I30L-00N000 / OSFP-800G-2xFR4H)

Brand: Broadcom DSP Compatible (NVIDIA / Mellanox Original Equivalent)

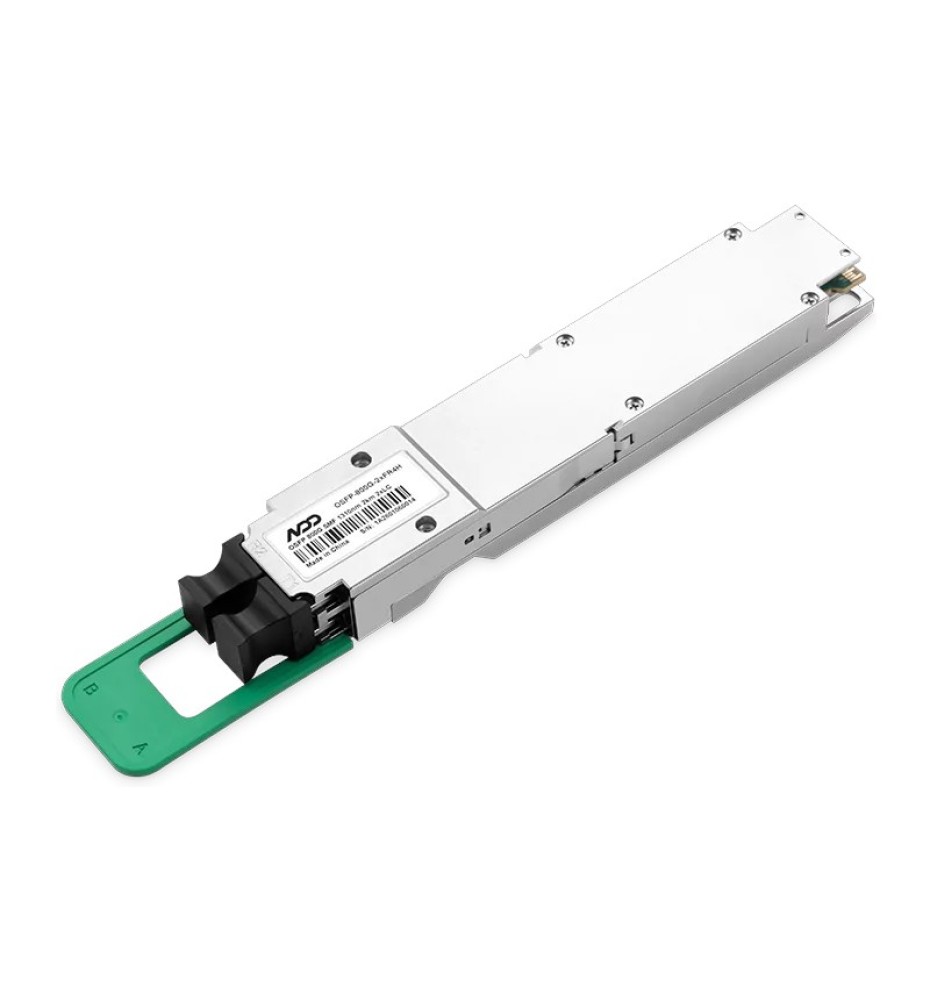

Transceiver Module : NVIDIA/Mellanox MMS4X50-NM Compatible 800G 2xFR4 InfiniBand NDR / 800G Ethernet Optical Transceiver Module, Twin-port OSFP Form Factor, 1310nm CWDM4 Wavelength, Single-Mode Fiber (SMF), Up to 2km Reach, Dual LC Duplex Optical Connectors, DOM Support, Finned Top / IHS Shell

The MMS4X50-NM (980-9I30L-00N000 / OSFP-800G-2xFR4H) is a cutting-edge 800Gb/s (2x400Gb/s) Twin-port OSFP optical transceiver built for hyperscale AI data centers, High-Performance Computing (HPC), and distributed arithmetic networks. Engineered with an advanced Broadcom DSP chip and 1310nm CWDM4 multi-wavelength multiplexing technology, this module converts 8 channels of 106.25Gb/s electrical data to optical signals, providing low-latency 2km long-distance transmission over Single-Mode Fiber (SMF).

Unlike traditional MPO-based transceivers, the MMS4X50-NM features a Dual LC Duplex interface that greatly enhances cabling flexibility, simplifies installation, and lowers infrastructure maintenance costs in high-density rack deployments. Designed with a Finned-Top / Integrated Heat Sink (IHS) OSFP shell, it delivers optimal thermal dissipation inside air-cooled switches such as NVIDIA Quantum-2 (QM9700 / QM9790), Q3200-RA, and 1.6T XDR / 800G NDR platforms.

Key Features

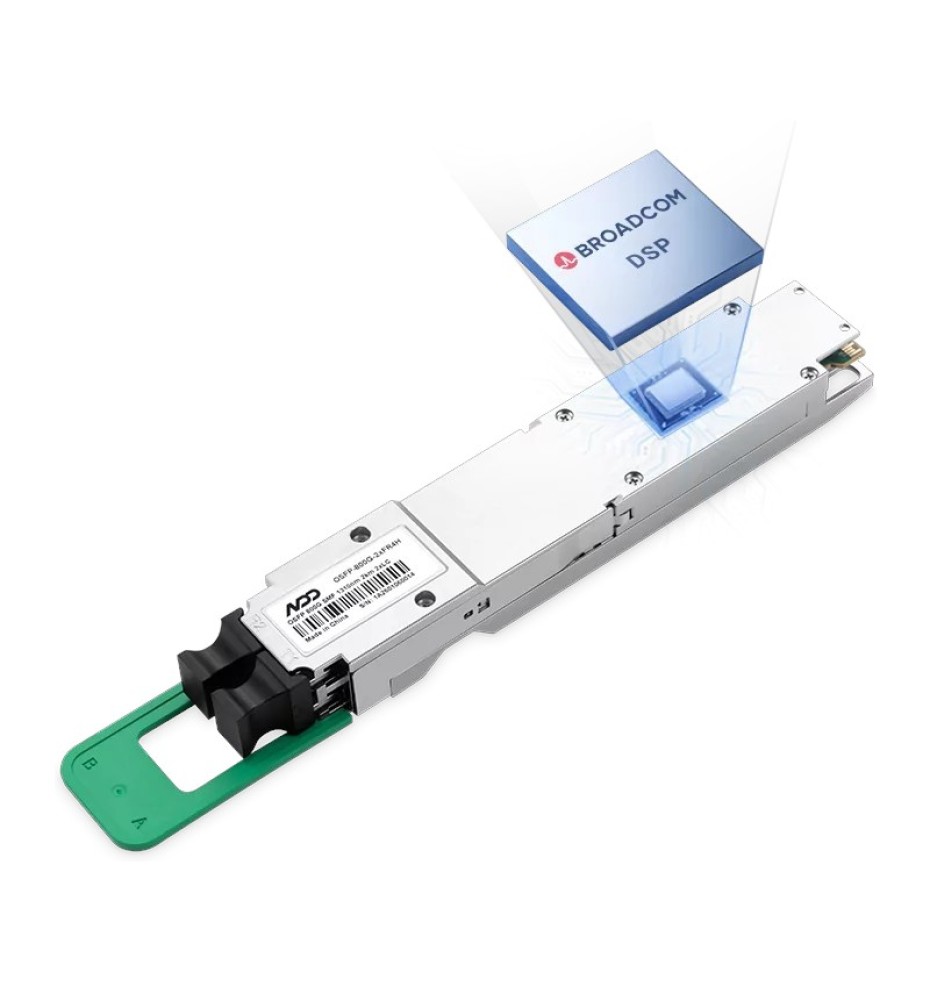

• Broadcom DSP & Advanced Packaging: Incorporates premier Broadcom DSP silicon and nanometer-precision optical alignment to minimize signal loss, crosstalk, and BER.
• Extended 2km SMF Transmission: Break through distance limitations with 2xFR4 CWDM4 technology supporting up to 2km reach across single-mode fiber links.

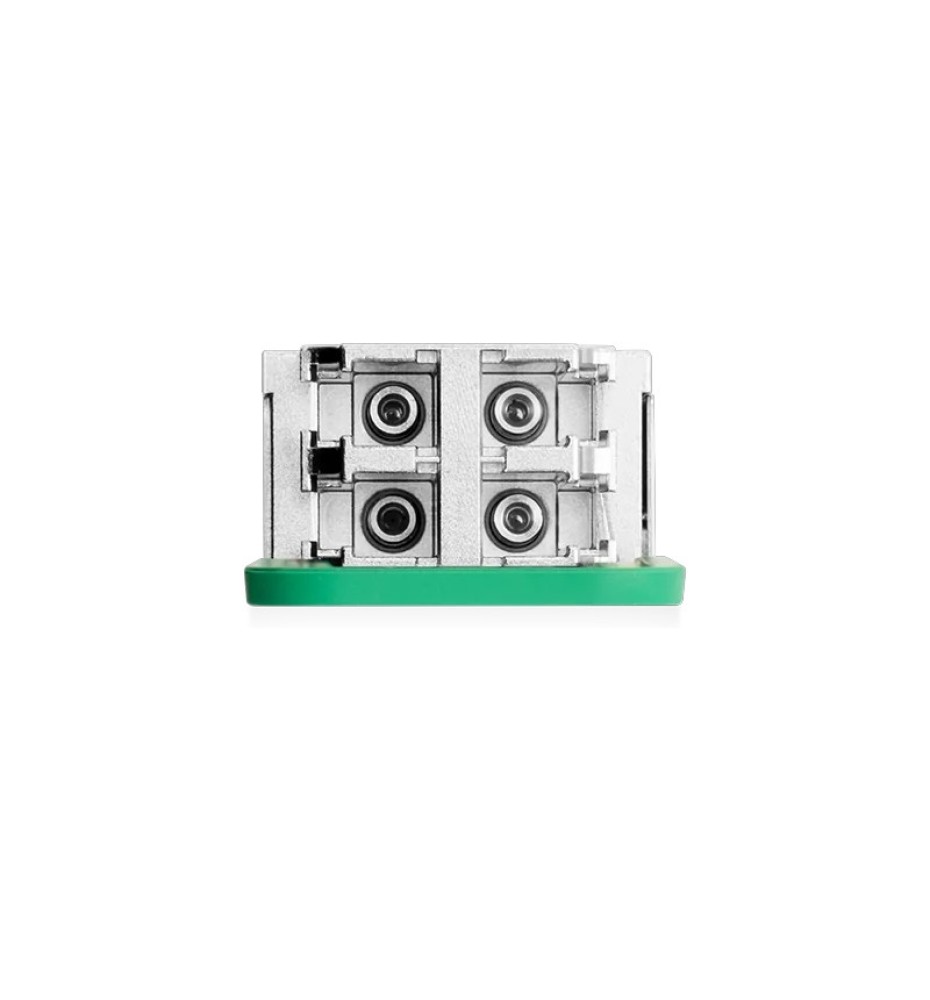

• Dual LC Duplex Interface Design: Replaces heavy MPO cabling with compact LC duplex connectors for improved flexibility, lower space usage, and cost-effective deployment.

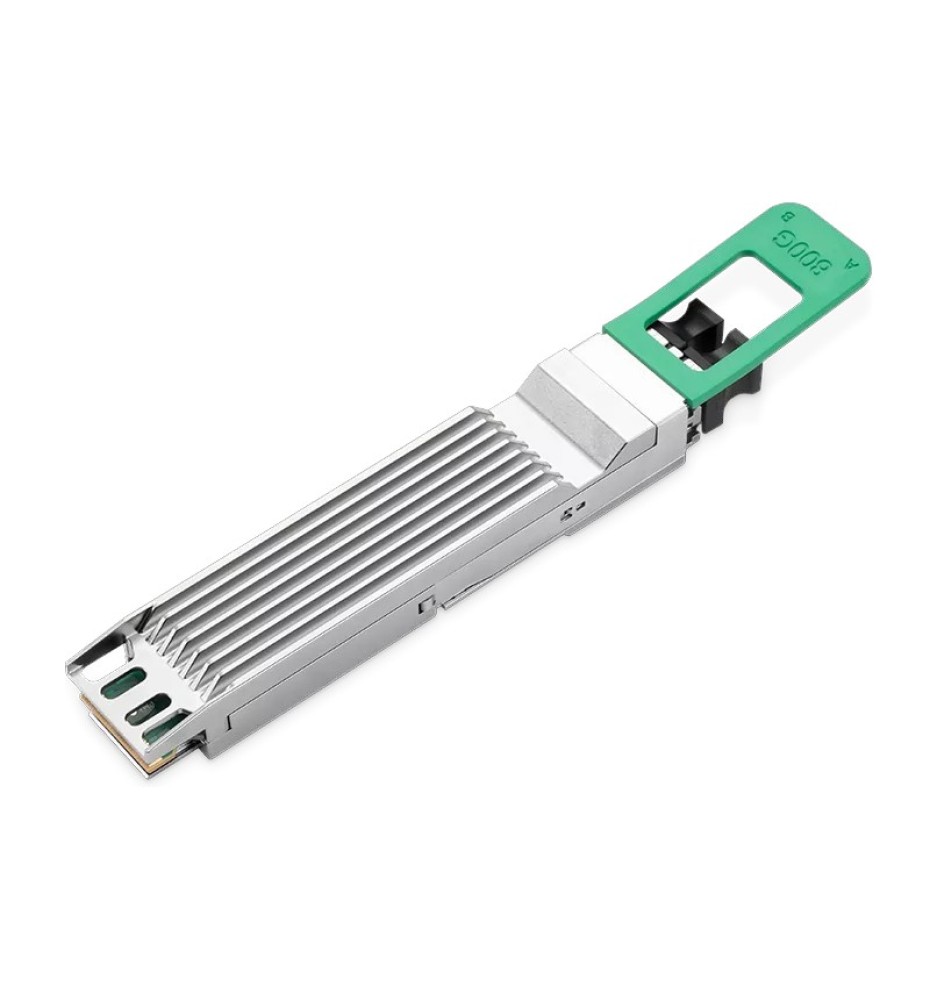

• Finned-Top OSFP Thermal Management: Specialized finned enclosure optimized for maximum airflow and cooling efficiency inside high-density switch chassis.
• 100% NVIDIA QM9700/QM9790 Compatible: Rigorously validated for plug-and-play interoperability across multiple firmware versions and IBTA BER standards.
• Low Power & Full Diagnostics: Highly efficient operation (≤16W power consumption) featuring Digital Optical Monitoring (DOM), CMIS 4.0, and RoHS compliance.

Technical Specifications
