Model / Part Number: MMS1C10-CM / QSFP-100G-PSM4H Series

Brand: NVIDIA / Mellanox Compatible Original Equivalent

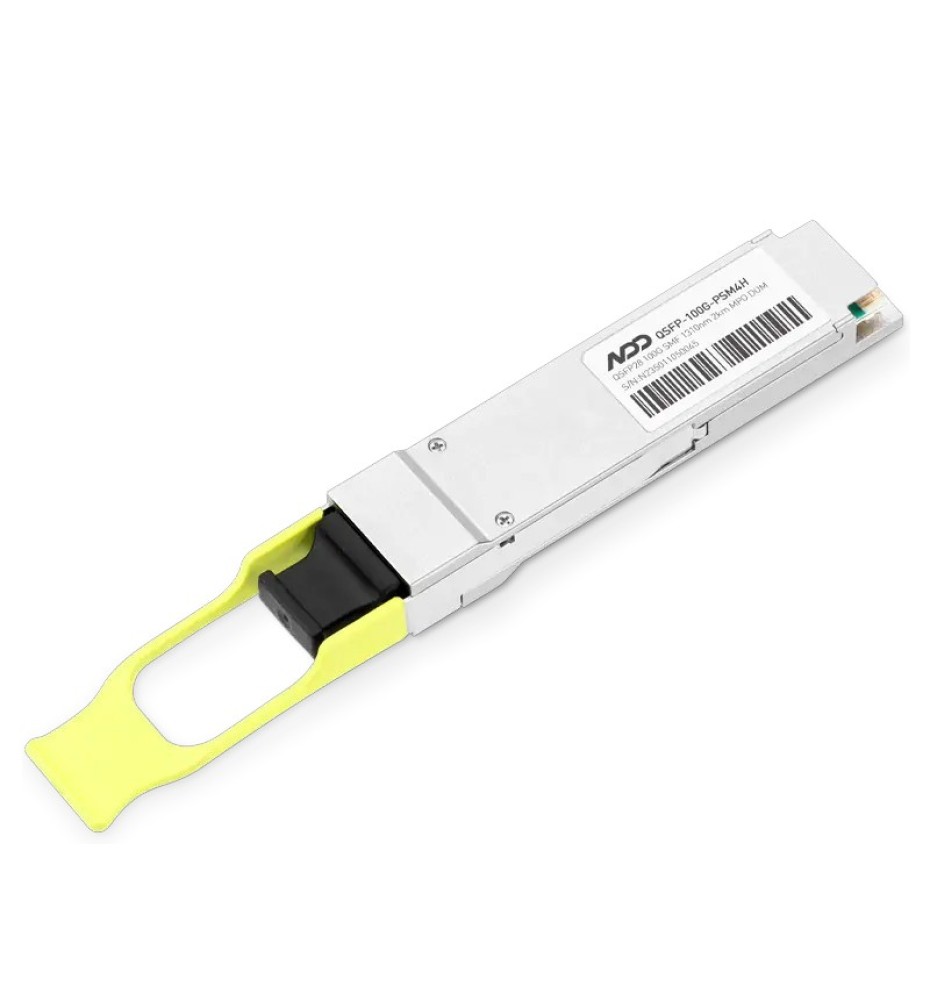

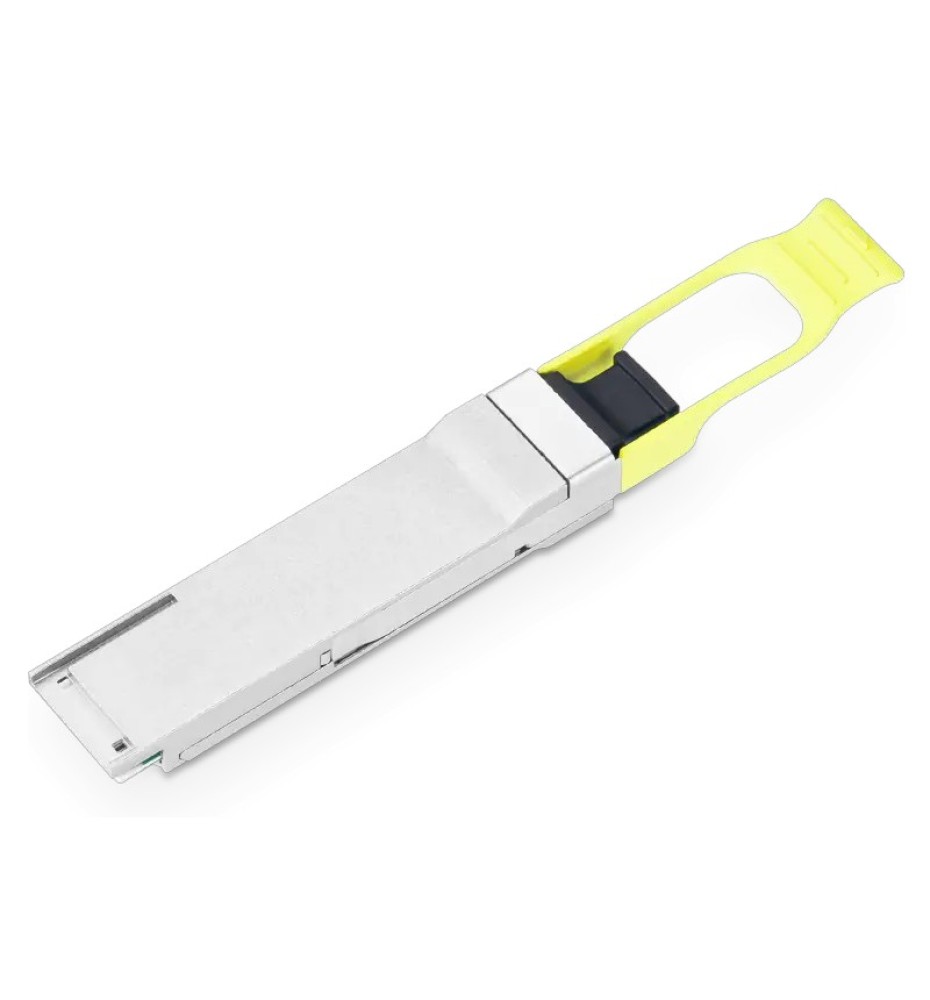

Optical Transceiver : NVIDIA/Mellanox MMS1C10-CM (QSFP-100G-PSM4H) Compatible 100GBASE-PSM4 / InfiniBand EDR QSFP28 Optical Transceiver Module, 1310nm Uncooled DFB Laser Transmitter, PIN Receiver Array, Up to 500m Reach over Parallel Single-Mode Fiber (SMF), MPO-12/APC or MTP-12 APC Connector, DOM/DDM Support, 4x25.781Gb/s NRZ Electrical/Optical Modulation, Max Power Consumption ≤3.5W

The MMS1C10-CM (QSFP-100G-PSM4H) is a high-performance 100Gb/s 4-channel QSFP28 optical transceiver module designed for parallel single-mode optics in High-Performance Computing (HPC), enterprise data center interconnects, and high-density spine-leaf architectures. Utilizing four independent 25.781Gb/s NRZ electrical/optical lanes at an uncooled 1310nm DFB wavelength, this optical module provides low-cost, low-latency parallel transmission up to 500 meters over single-mode fiber (SMF) using an MPO-12/APC connector interface.

Engineered for maximum reliability, the MMS1C10-CM is fully compliant with InfiniBand EDR protocols, 100G PSM4 MSA specifications, and 100G Ethernet standards. Featuring built-in Digital Diagnostic Monitoring (DOM/DDM) via the I2C interface, network operators can perform real-time monitoring of key operational parameters. It is 100% verified for seamless plug-and-play interoperability with NVIDIA SB7800 / SB7890 EDR InfiniBand Switches and ConnectX-5 / ConnectX-6 Network Interface Cards (NICs).

Key Features

• Parallel Single-Mode 100G Link: Combines four 25.781Gb/s NRZ optical channels to deliver up to 500m transmission over parallel single-mode fiber (SMF).
• Uncooled 1310nm DFB Optics: Utilizes reliable 1310nm DFB laser array transmitters and PIN photodetectors for optimized performance in short-to-medium reach data center runs.

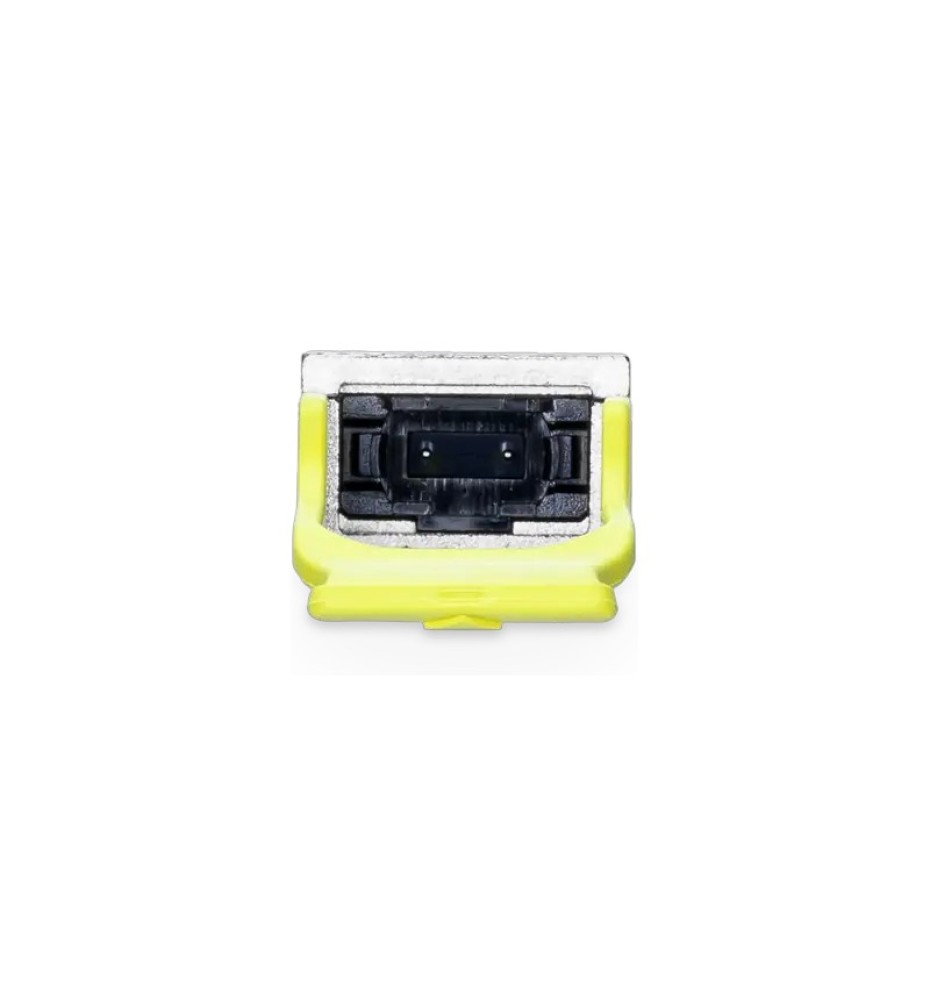

• MPO-12 APC Interface: Built with an MPO-12/APC (Angled Physical Contact) connector to minimize optical back reflection and preserve signal integrity.
• Real-Time Digital Diagnostics (DOM): Supports continuous diagnostic tracking of laser bias current, optical output power, received optical power, module temperature, and supply voltage.
• Low Power & Thermal Efficiency: Operates efficiently with maximum power consumption ≤3.5W, reducing cooling requirements in high-density switch environments.
• 100% Hardware Interoperability: Built to QSFP28 MSA standards and fully compliant with IBTA Industrial BER standards, 100G PSM4 MSA, and RoHS protocols.

Technical Specifications
