NVIDIA/Mellanox MMA4Z00-NS Compatible 800G 2xSR4/SR8 Twin-port OSFP 850nm MMF Transceiver (Broadcom DSP & VCSEL, Finned Top, Dual MPO-12/APC, 980-9I510-00NS00)
- Brand: NVIDIA/Mellanox
- Product Code: OSFP-800G-2xSR4H
- Availability: In Stock
Model / Part Number: MMA4Z00-NS (980-9I510-00NS00 / OSFP-800G-2xSR4H)
Brand: Broadcom DSP & Broadcom VCSEL Compatible (NVIDIA / Mellanox Original Equivalent)
Transceiver Module : NVIDIA/Mellanox MMA4Z00-NS Compatible 800G 2xSR4 / SR8 InfiniBand NDR Optical Transceiver Module, Twin-port OSFP Form Factor, 850nm Wavelength, Multimode Fiber (MMF), 30m (OM3) / 50m (OM4) Reach, Dual MPO-12/APC Optical Connectors, DOM Support, Finned Top / IHS Shell
The MMA4Z00-NS (980-9I510-00NS00 / OSFP-800G-2xSR4H) is an enterprise-grade 800Gb/s (2x400Gb/s) Twin-port OSFP optical transceiver engineered for high-density AI supercomputing, High-Performance Computing (HPC), and enterprise cloud fabrics. Built with industry-leading Broadcom DSP and Broadcom VCSEL hardware, this module delivers two independent 4-channel 400G engines (2xSR4 / SR8 parallel multimode) operating over 850nm wavelength to achieve low latency, superior signal integrity, and exceptional BER performance.
Designed with a Finned-Top / Integrated Heat Sink (IHS) OSFP shell, the MMA4Z00-NS provides optimal thermal dissipation for air-cooled switch environments, such as 32-cage NVIDIA Quantum-2 (QM9700 / QM9790) NDR InfiniBand switches and Spectrum-4 Ethernet platforms. Featuring dual MPO-12/APC optical connectors, it supports flexible interconnect topologies including 800G switch-to-switch links, 2x400G ConnectX-7 / BlueField-3 DPU connections, or 4x200G NDR200 HCA breakout links up to 50 meters on OM4 multimode fiber.
Key Features

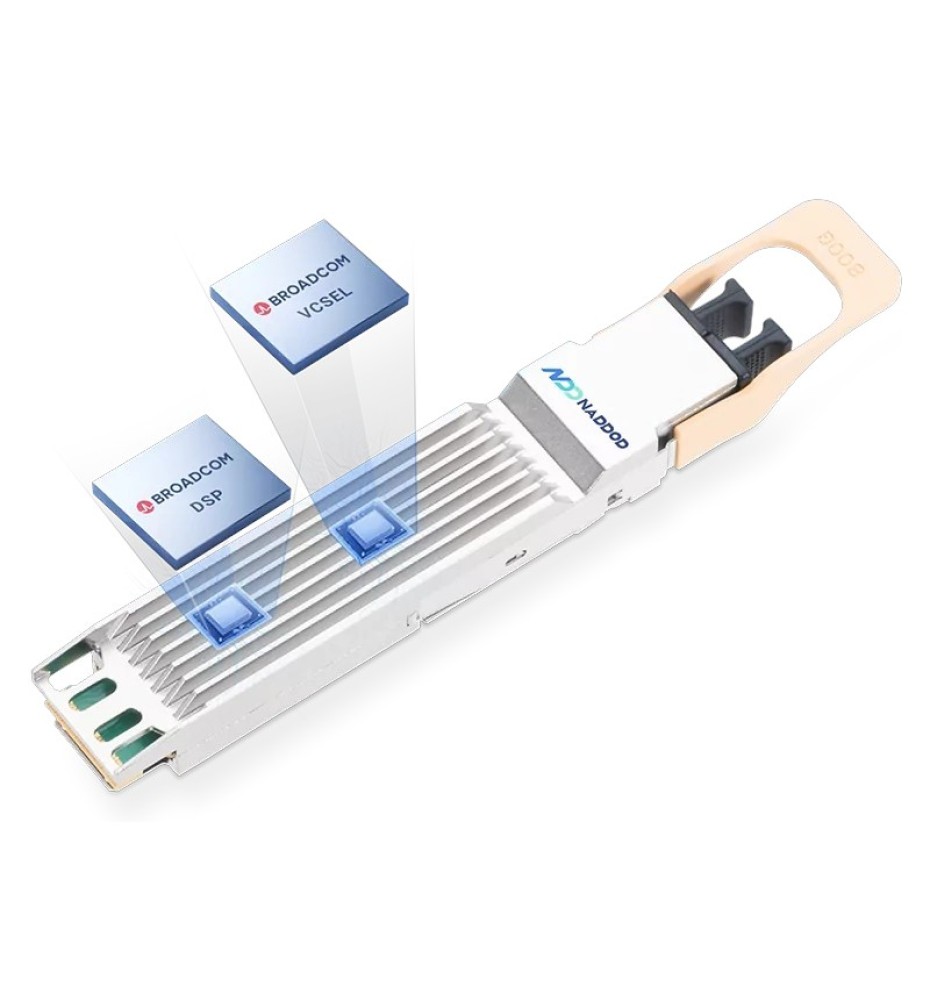

- Broadcom DSP & VCSEL Chipset: Powered by premier Broadcom silicon to maximize AI cluster bandwidth, ensure low Bit Error Rate (BER), and maintain high link stability.
- 800Gbps Twin-Port Architecture: Integrates two independent internal 400Gb/s transceiver engines (8x106.25Gb/s PAM4 electrical) within a single OSFP slot.
- 100% NVIDIA QM9700/QM9790 Compatibility: Rigorously tested across multiple firmware versions to ensure seamless plug-and-play operation in Quantum-2 and Spectrum-4 switches.

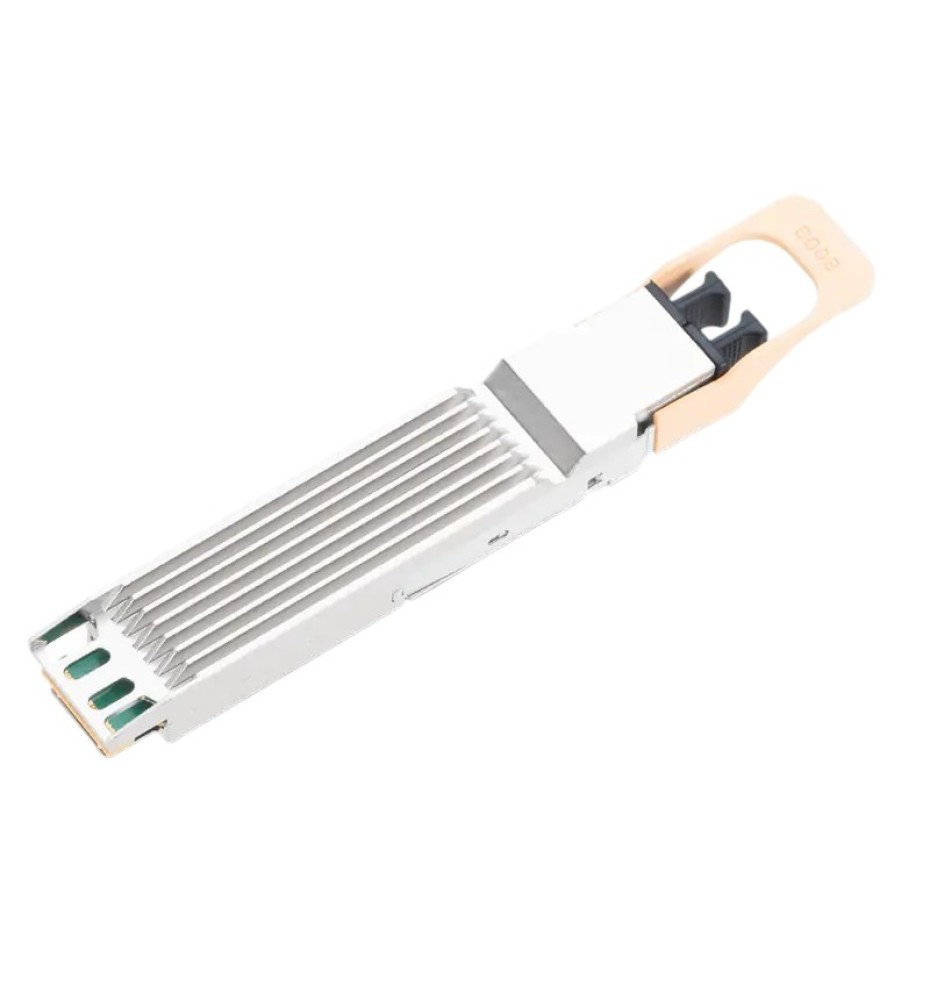

- Finned-Top Thermal Shell: Enhanced heat sink profile optimized for high-density, air-cooled switch chassis layouts.

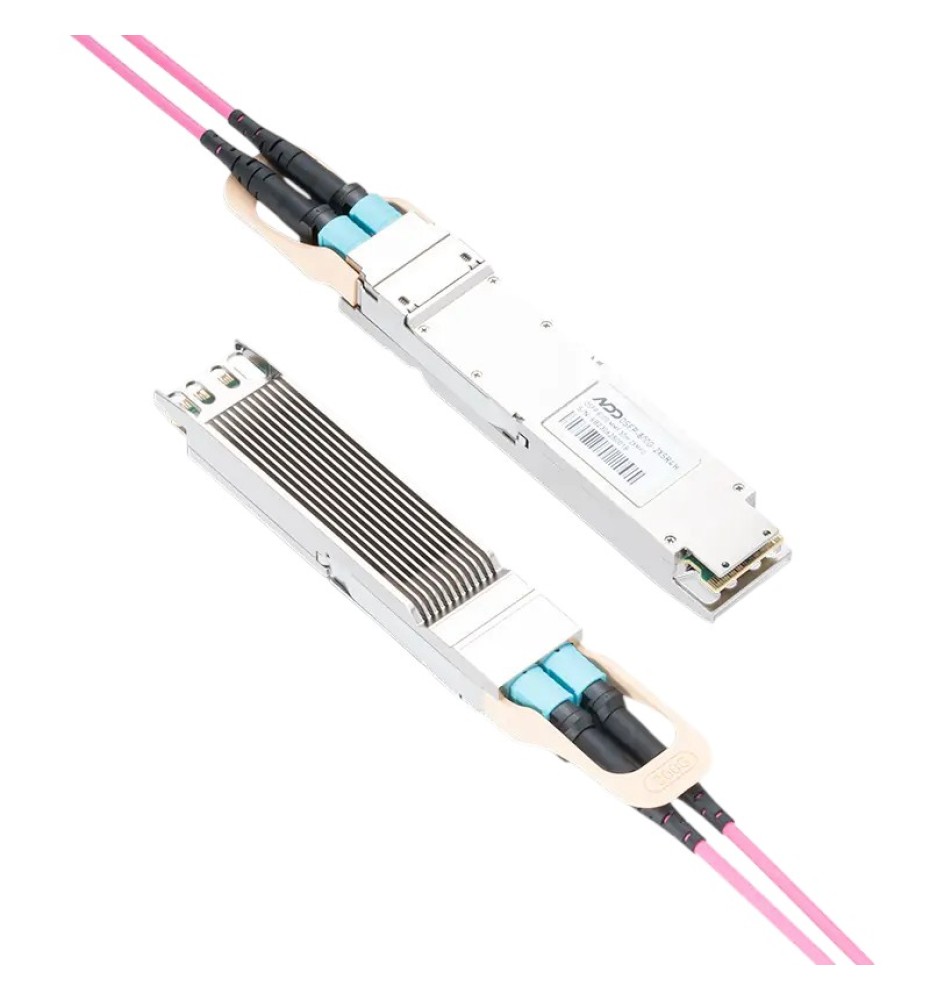

- Dual MPO-12/APC Optical Ports: Dual 4-channel MPO-12/APC connectors support direct OM3 (30m) or OM4 (50m) patch cables and breakout splitter configurations.
- Low Power Consumption & Full Diagnostics: Highly efficient design (≤14W max power) with Digital Optical Monitoring (DOM), CMIS 4.0, and RoHS compliance.
Technical Specifications
| Part Number / Model | MMA4Z00-NS (980-9I510-00NS00 / OSFP-800G-2xSR4H) |
| Silicon / Chip Solutions | Broadcom DSP & Broadcom VCSEL |
| Form Factor / Shell | Twin-port OSFP (Finned Top / Integrated Heat Sink) |
| Data Rate / Protocols | 800Gbps (2x 400Gb/s) | InfiniBand NDR & 800G Ethernet Compliant |
| Optical Specification | 2xSR4 / SR8 Parallel Multimode (850nm VCSEL Transmitter, PIN Receiver) |

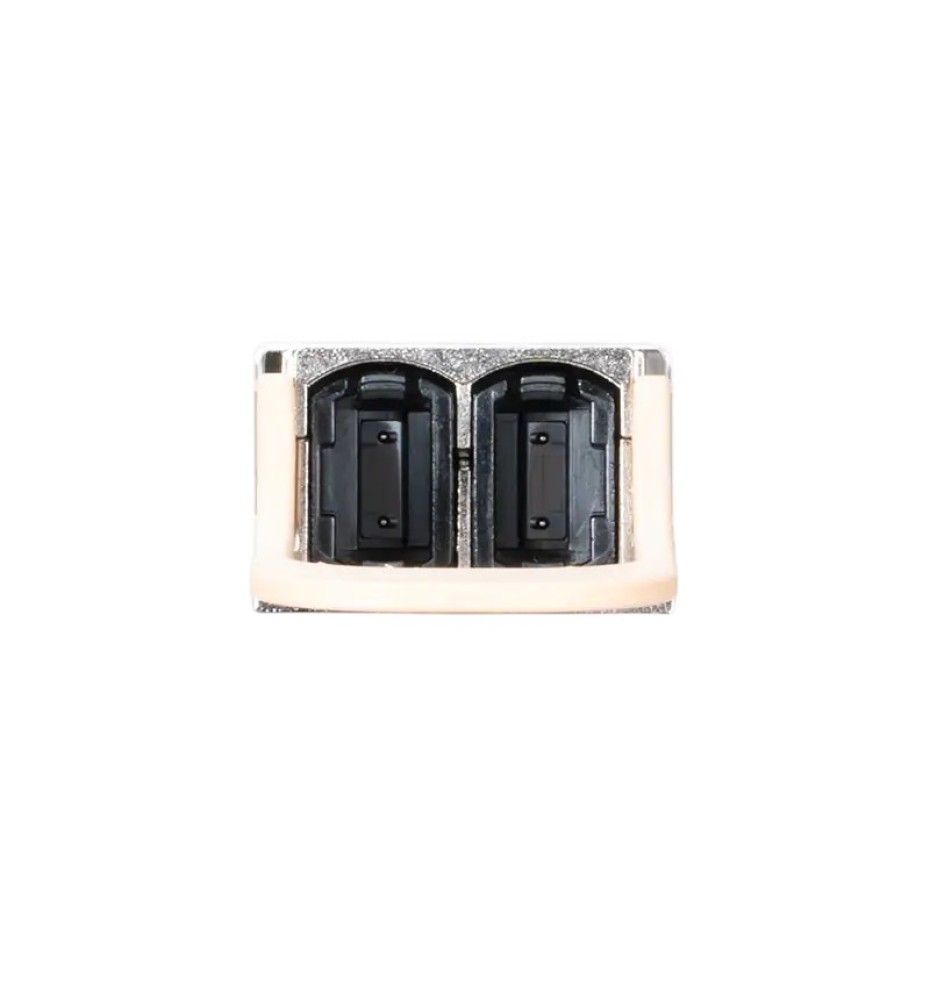

| Optical Connector | Two MPO-12/APC (Angled Physical Contact) |
| Media Type & Reach | Multimode Fiber (MMF) | Up to 30m on OM3 / Up to 50m on OM4 |
| Modulation (Electrical / Optical) | 8x 106.25Gb/s PAM4 (Electrical) / Two Ports of 4x 106.25Gb/s PAM4 (Optical) |
| Power Consumption | ≤14W Operating Power |
| Case Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Standards & Diagnostics | OSFP MSA, CMIS 4.0, DOM Supported, RoHS Compliant, IBTA BER Standards |
| Target Applications | 1.6T/800G NDR Switch-to-Switch, 800G Switch to 2x400G NDR HCA, 800G Switch to 4x200G NDR200 HCA Breakout |
