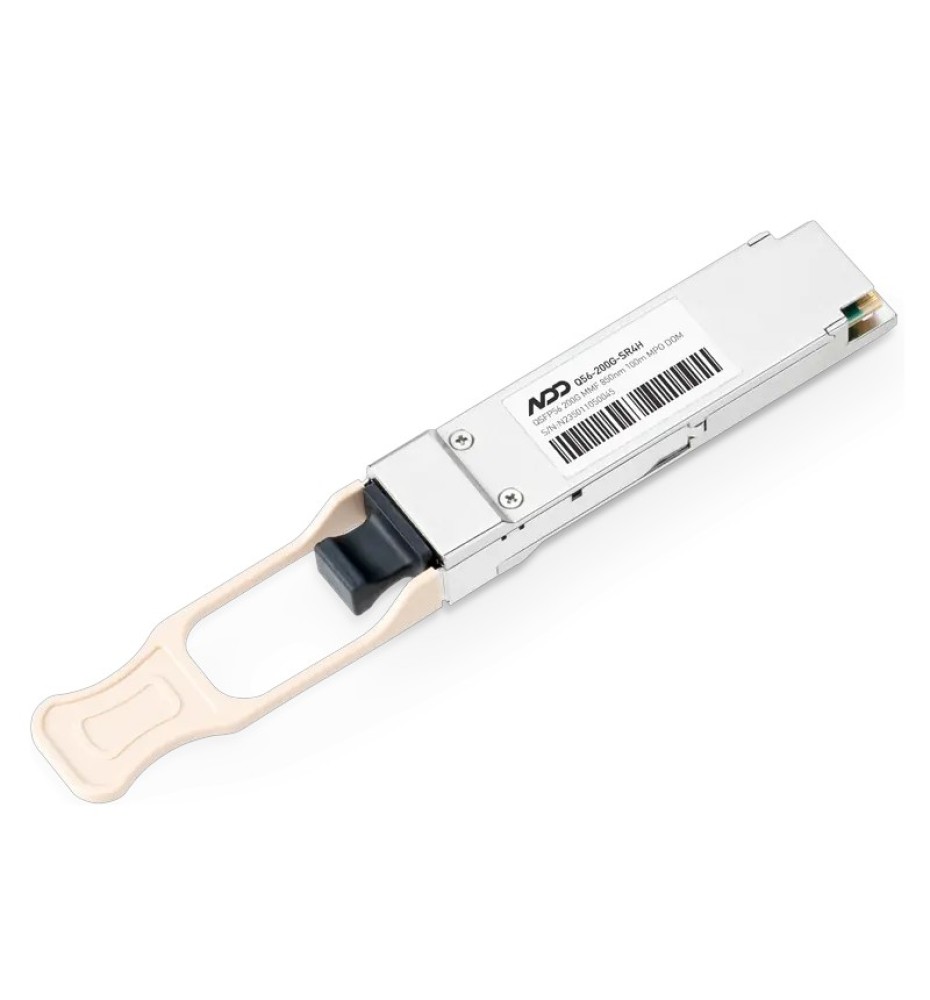

Model : Q56-200G-SR4H-A

Brand: NVIDIA / Mellanox Compatible Original Equivalent

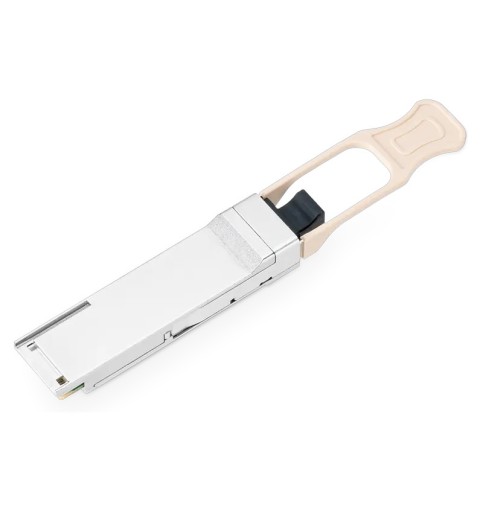

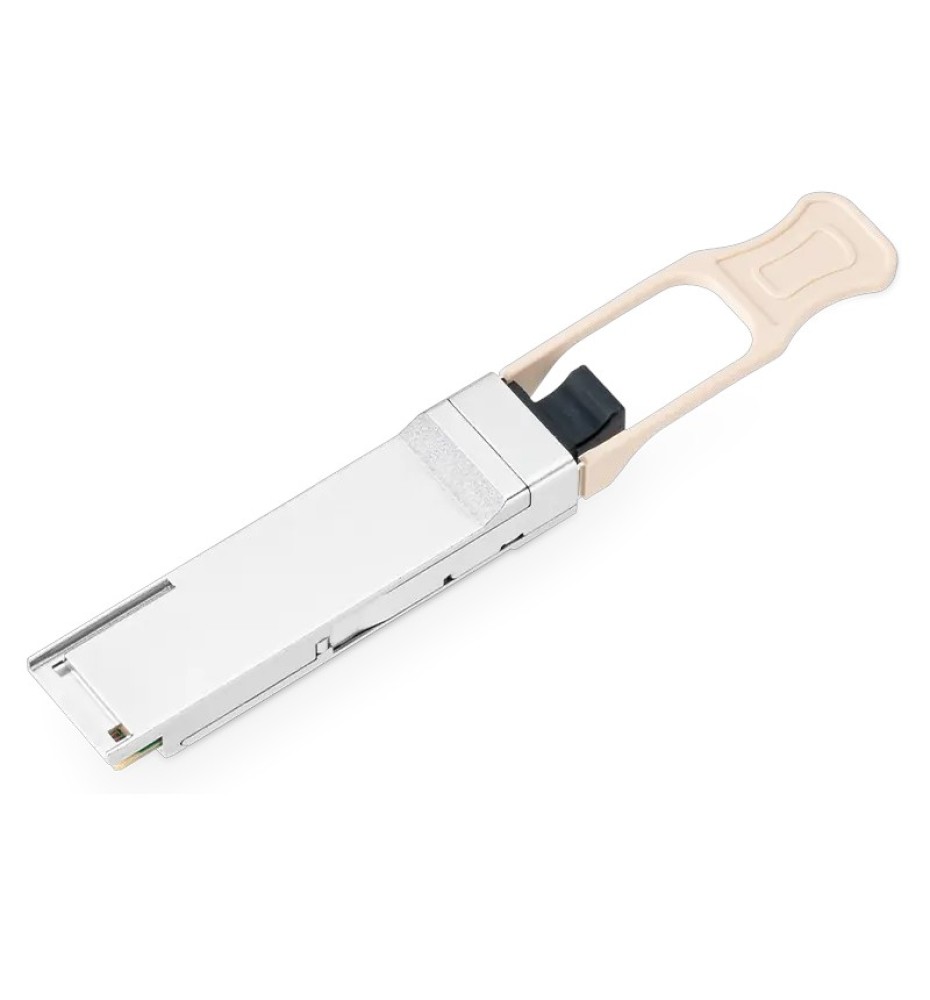

Optical Transceiver : NVIDIA/Mellanox MMA1T00-HS Compatible 200GBASE-SR4 / InfiniBand HDR QSFP56 Optical Transceiver Module, 850nm VCSEL Transmitter, PIN Receiver Array, Up to 100m Reach over OM3/OM4 Multimode Fiber (MMF), MPO-12/UPC or MTP-12 UPC Connector, DOM/DDM Support, 4x50.128Gb/s PAM4 Electrical/Optical Modulation, Max Power Consumption ≤4.5W

The MMA1T00-HS (980-9I17S-00HS00) is a hot-pluggable 200Gb/s 4-channel QSFP56 optical transceiver module engineered for high-density High-Performance Computing (HPC), AI supercomputing, and cloud infrastructure. Utilizing 4 independent 50.128Gb/s PAM4 channels at an 850nm wavelength, this optical module provides high throughput bandwidth up to 100 meters over multimode fiber (MMF) using an MPO-12/UPC connector interface.

Fully compliant with InfiniBand HDR protocols, QSFP56 MSA standards, IEEE 802.3cd 200GBASE-SR4, and 200G Ethernet specifications, the MMA1T00-HS includes integrated Digital Diagnostic Monitoring (DOM/DDM) via the I2C interface. Network administrators can perform real-time monitoring of optical transmit/receive levels, laser bias current, module temperature, and supply voltage. It is 100% verified for seamless plug-and-play interoperability with NVIDIA Quantum QM8700 / QM8790 InfiniBand Switches and ConnectX-6 / ConnectX-7 Network Interface Cards (NICs / HCAs).

Key Features

• High-Speed 200G PAM4 Performance: Integrates four 50G PAM4 optical and electrical lanes to achieve an aggregated 200Gb/s throughput with ultra-low network latency.

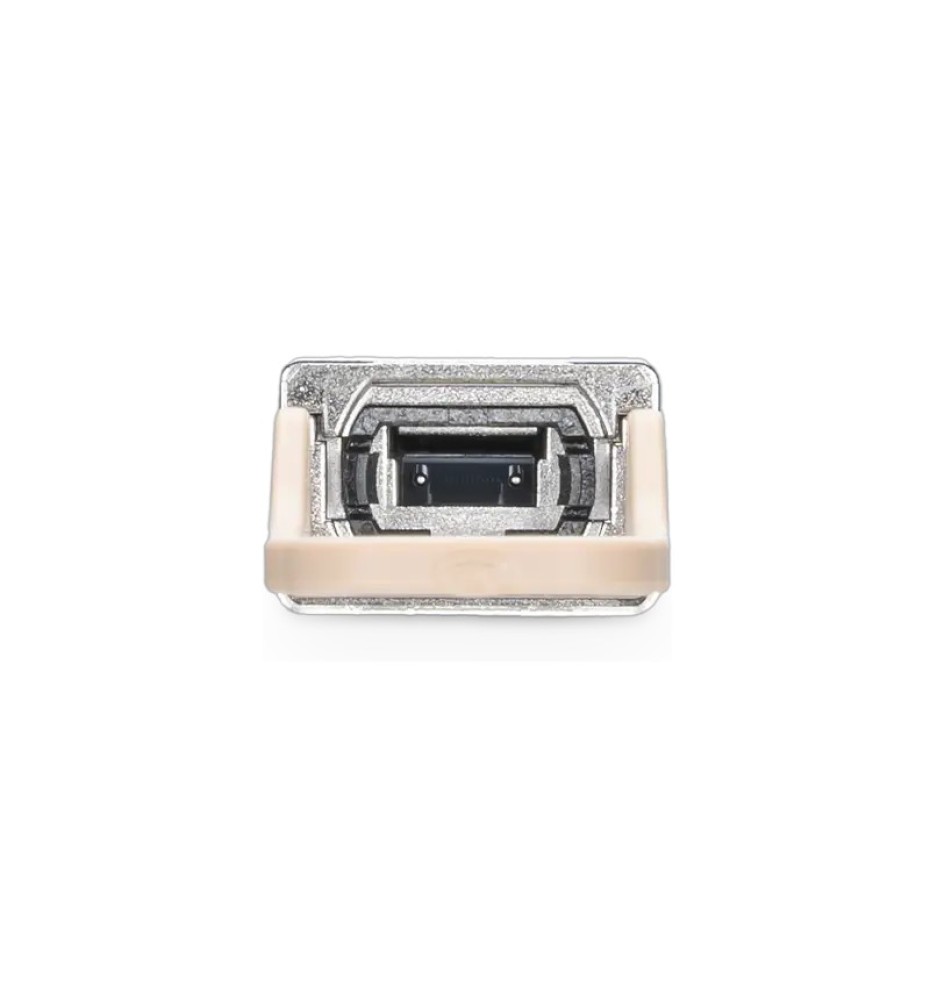

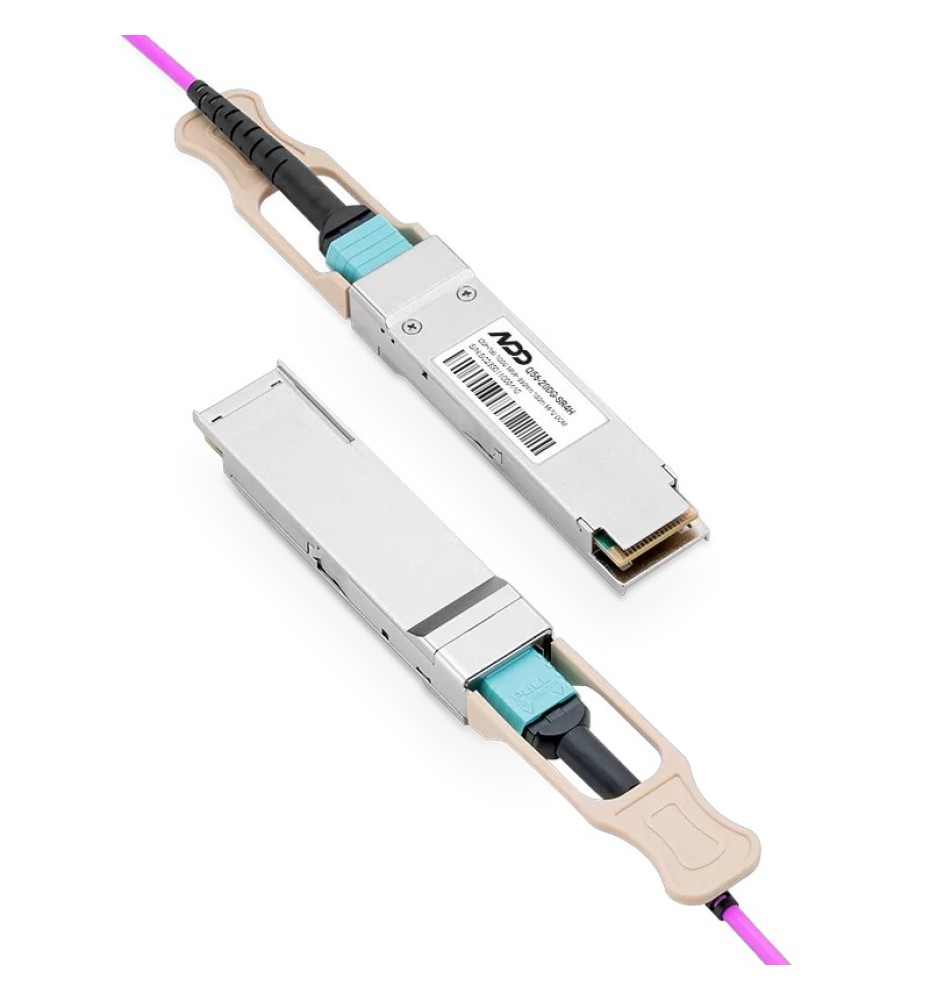

• Multimode Fiber Reach: Reliable transmission up to 100 meters on OM3/OM4 MMF using standard MPO/MTP-12 UPC parallel optics.
• Advanced Real-Time Diagnostics (DOM): Full Digital Diagnostic Monitoring support tracking temperature, supply voltage, bias current, and optical power levels with customizable alarm thresholds.
• Optimized Power & Thermal Control: Consumes ≤4.5W max operational power, ensuring efficient cooling management inside dense switch chassis environments.
• Industrial Interoperability: Built to QSFP56 MSA standards, compliant with IBTA Industrial BER standards and RoHS environmental guidelines.
• Native Hardware Compatibility: Rigorously verified across NVIDIA Quantum HDR switches and ConnectX-6/7 smart network cards.

Technical Specifications
