Model / Part Number: MMA1L30-CM / QSFP-100G-CWDM4H (980-9I17Q-00CM00 Series)

Brand: NVIDIA / Mellanox Compatible Original Equivalent

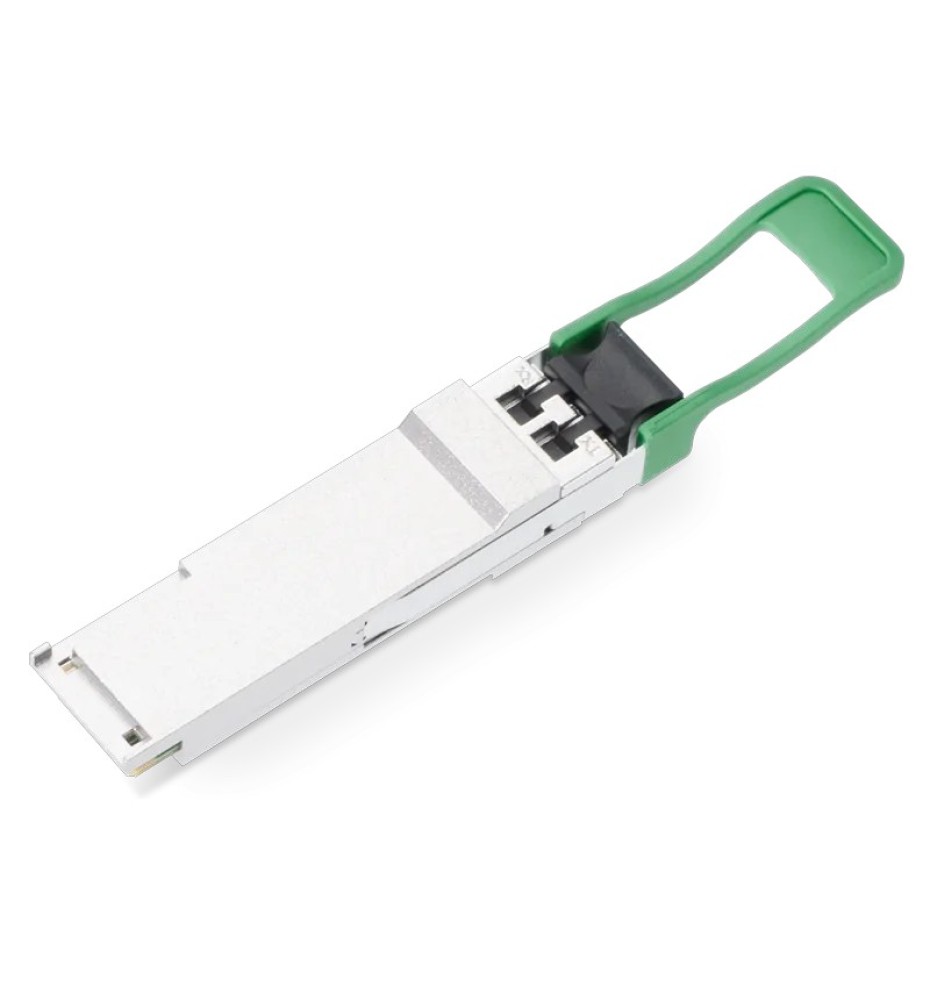

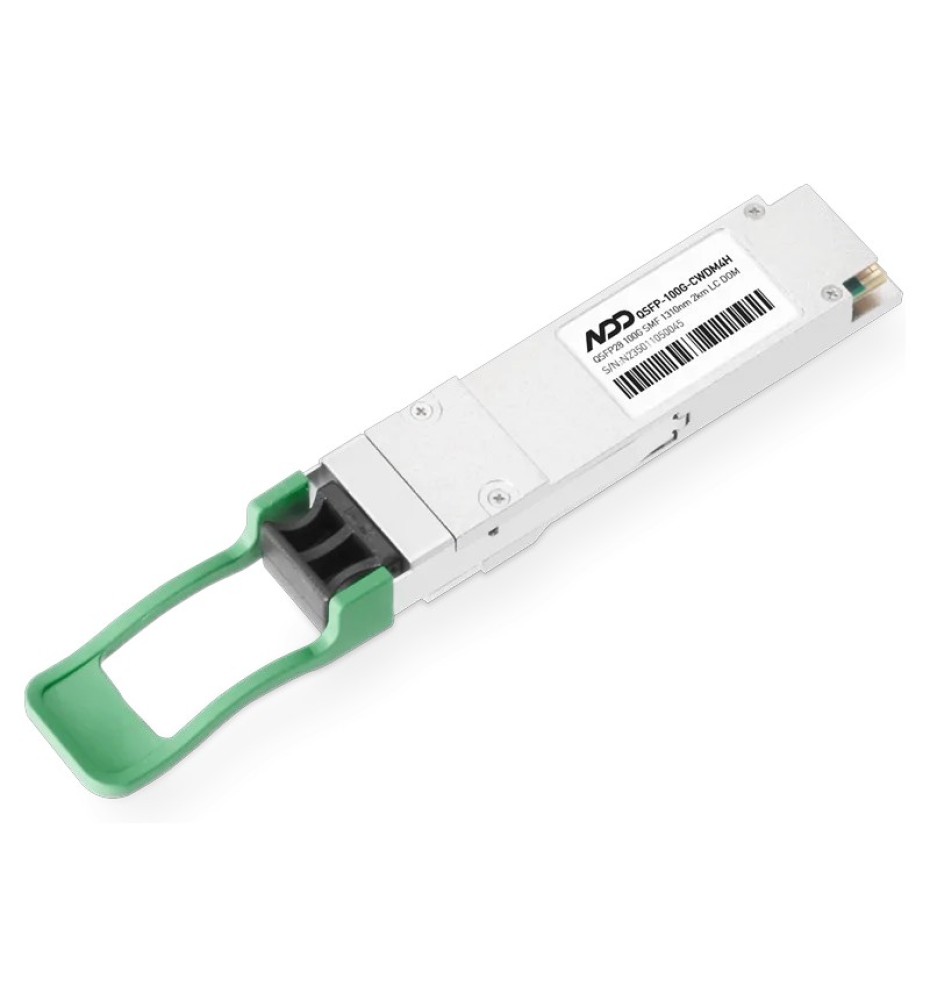

Optical Transceiver : NVIDIA/Mellanox MMA1L30-CM (QSFP-100G-CWDM4H) Compatible 100GBASE-CWDM4 / InfiniBand EDR QSFP28 Optical Transceiver Module, 1310nm CWDM EML Transmitter, PIN Receiver Array, Up to 2km Reach over Single-Mode Fiber (SMF), Duplex LC Connector, DOM/DDM Support, 4x25.781Gb/s NRZ Electrical/Optical Modulation, Max Power Consumption ≤3.5W

The MMA1L30-CM (QSFP-100G-CWDM4H) is a high-performance 100Gb/s 4-channel QSFP28 optical transceiver module designed for intermediate-reach High-Performance Computing (HPC) networks, enterprise data centers, and high-density spine-leaf architectures. By multiplexing 4 CWDM optical channels operating at 25.781Gb/s NRZ over duplex single-mode fiber (SMF), this module delivers reliable, low-latency transmission up to 2km using standard Duplex LC connectors.

Built for robust operational stability, the MMA1L30-CM is fully compliant with InfiniBand EDR protocols, CWDM4 MSA specifications, IEEE 802.3bm CAUI-4, and 100G Ethernet standards. Featuring integrated Digital Diagnostic Monitoring (DOM/DDM) accessible via the I2C interface, it allows network administrators to perform real-time monitoring of critical operational parameters. It is 100% verified for seamless plug-and-play interoperability with NVIDIA SB7800 / SB7890 EDR InfiniBand Switches and ConnectX-5 / ConnectX-6 Network Interface Cards (NICs).

Key Features

• Intermediate-Reach 100G Interconnect: Combines four 25.781Gb/s NRZ CWDM optical lanes to achieve aggregated 100Gb/s throughput up to 2km on single-mode fiber (SMF).
• Advanced CWDM EML Optics: Integrates high-performance CWDM EML laser array transmitters and PIN photodetectors for superior signal integrity and low dispersion over 2km distances.

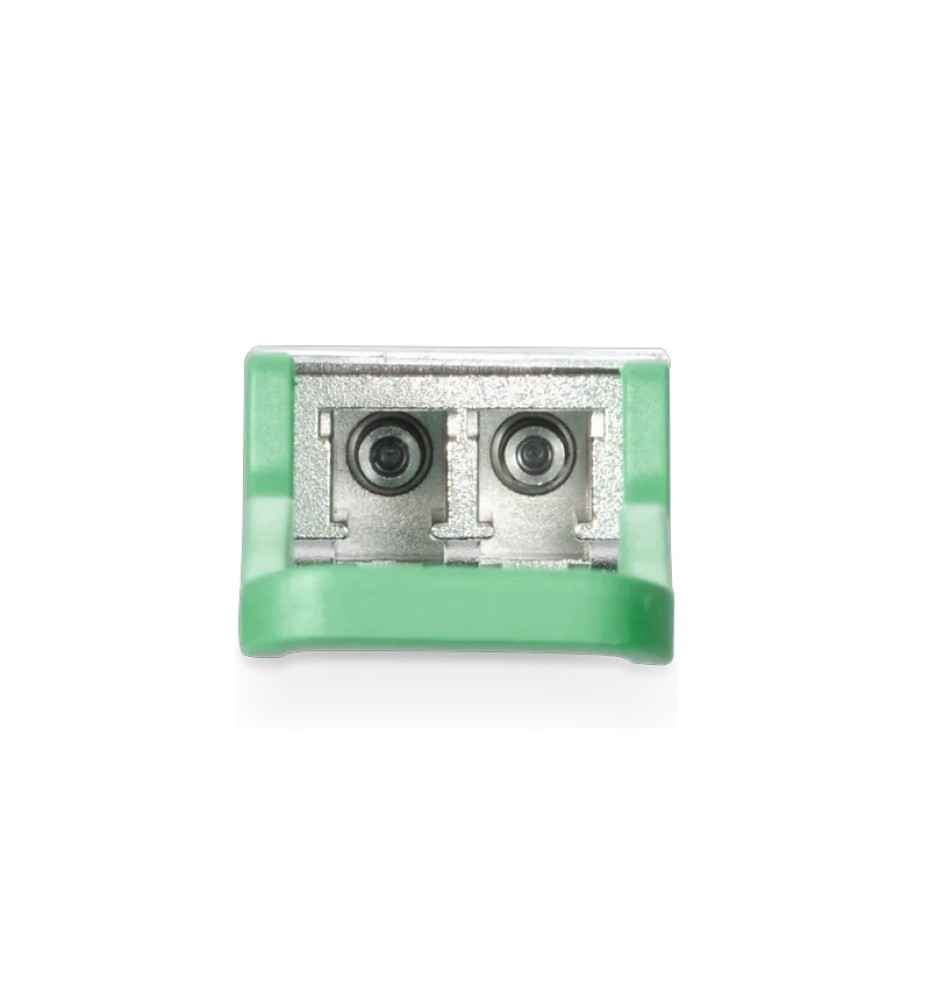

• Standard Duplex LC Connector: Features a dual-fiber Duplex LC optical interface for seamless integration with existing single-mode fiber patch infrastructure.
• Real-Time Digital Diagnostics (DOM): Supports continuous monitoring of laser bias current, optical output power, received optical power, internal temperature, and supply voltage.
• Low Power Consumption: Consumes ≤3.5W max operational power, ensuring energy efficiency and optimized thermal management in high-density switch chassis.
• Fully Hardware Compatible: Built to QSFP28 MSA standards, compliant with IBTA Industrial BER standards, CWDM4 MSA, and RoHS environmental protocols.
