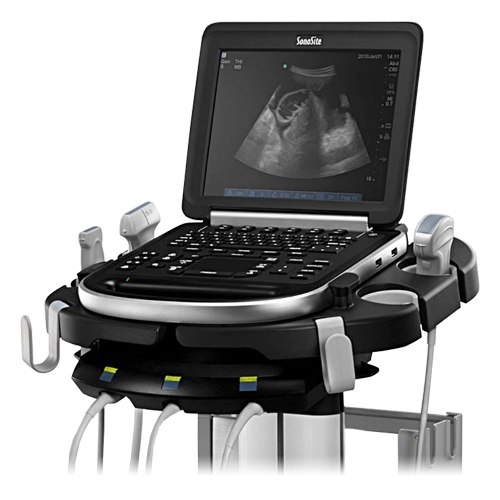

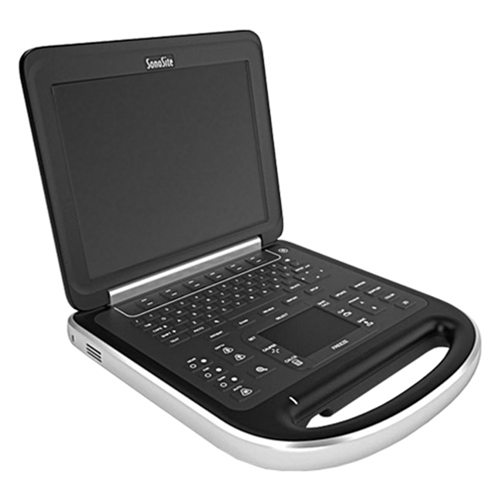

SONOSITE EDGE PORTABLE ULTRASOUND

Sonosite Edge Features

The SonoSite Edge is a portable ultrasound system. The Edge System offers significant improvements from its predecessors with a larger screen and better image quality. The SonoSite Edge can produce real-time ultrasound data through modes including; 2D, M Mode, Pulse Wave Doppler, Continuous Wave Doppler, Color Power Doppler, and Color Doppler. The System can support 3-lead ECG, which can help collect data from M Mode and Doppler measurements. The Sonosite Edge can provide Ultrasonic imaging for applications that include; Anesthesia, Critical Care, Cardiology, Cardiovascular, MSK, Obstetrics, Gynecology, radiology, Vascular, Surgery, Women’s health, and Emergency Medicine. The SonoSite Ultrasound system runs on a rechargeable battery and A/C power through a docking station. it can also provide storage for up to 30,000 ultrasonic images on its internal 16GB hard drive storage.

  • SonoADAP Tissue Optimization
  • SonoHD Imaging Technology
  • Advanced Needle Visualization
  • 12.1” backlit LCD monitor
  • Large, bright, clinical image area
  • 2 high-speed USB ports for effortless data management

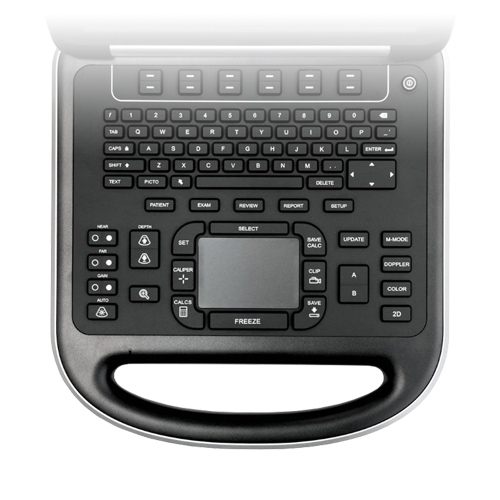

  • Large trackpad with increased sensitivity
  • New gain and depth controls for more accurate fine adjustment

SonoSite Edge Specifications

Dimensions

  • Height: 2.5” (6.3 cm)
  • Width: 12.4” (31.5 cm)
  • Depth: 13” (33 cm)
  • Weight: 8.5 lbs (3.85 kg)
  • Display: 12.1″ (30.7 cm) diagonal LCD (NTSC or PAL)

System Specifications

  • Architecture: All-digital broadband multi-frequency imaging
  • Dynamic range: Up to 165 dB
  • Grayscale: 256 shades
  • HIPAA compliance: A comprehensive toolset

Onboard Image and Clip Storage/Review

  • 8 GB internal Flash memory storage capability
  • Potential to store 30,000 images or 960 2-second clips
  • Clip storage capability (maximum single clip length: 60 seconds)
  • Clip Storage capability via either a number of heart cycles (using the ECG) or time base Maximum storage in ECG beats mode is 10 cycles Maximum storage in time base mode is 60 seconds
  • Cine review up to 255 frame-by-frame images

Connectivity

  • S-video (in/out) to VCR for recording and playback
  • DVI output
  • Composite video output (NTSC/PAL) to VCR or video printer
  • Audio output
  • integrated speakers
  • Ethernet or Wireless image/data transfer
  • USB ports (2)
  • RS-232 transfer
  • DICOM image Management: Store, Print, Storage Commit, Modality Worklist, MPPS

Power Supply

  • The system operates via battery or AC power
  • Rechargeable lithium-ion battery
  • AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output



Sonosite Edge Portable Ultrasound

  • Product Code: SS678851

SONOSITE EDGE PORTABLE ULTRASOUND

Sonosite Edge Features

The SonoSite Edge is a portable ultrasound system. The Edge System offers significant improvements from its predecessors with a larger screen and better image quality. The SonoSite Edge can produce real-time ultrasound data through modes including; 2D, M Mode, Pulse Wave Doppler, Continuous Wave Doppler, Color Power Doppler, and Color Doppler. The System can support 3-lead ECG, which can help collect data from M Mode and Doppler measurements. The Sonosite Edge can provide Ultrasonic imaging for applications that include; Anesthesia, Critical Care, Cardiology, Cardiovascular, MSK, Obstetrics, Gynecology, radiology, Vascular, Surgery, Women’s health, and Emergency Medicine. The SonoSite Ultrasound system runs on a rechargeable battery and A/C power through a docking station. it can also provide storage for up to 30,000 ultrasonic images on its internal 16GB hard drive storage.

  • SonoADAP Tissue Optimization
  • SonoHD Imaging Technology
  • Advanced Needle Visualization
  • 12.1” backlit LCD monitor
  • Large, bright, clinical image area
  • 2 high-speed USB ports for effortless data management
  • Large trackpad with increased sensitivity
  • New gain and depth controls for more accurate fine adjustment

SonoSite Edge Specifications

Dimensions

  • Height: 2.5” (6.3 cm)
  • Width: 12.4” (31.5 cm)
  • Depth: 13” (33 cm)
  • Weight: 8.5 lbs (3.85 kg)
  • Display: 12.1″ (30.7 cm) diagonal LCD (NTSC or PAL)

System Specifications

  • Architecture: All-digital broadband multi-frequency imaging
  • Dynamic range: Up to 165 dB
  • Grayscale: 256 shades
  • HIPAA compliance: A comprehensive toolset

Onboard Image and Clip Storage/Review

  • 8 GB internal Flash memory storage capability
  • Potential to store 30,000 images or 960 2-second clips
  • Clip storage capability (maximum single clip length: 60 seconds)
  • Clip Storage capability via either a number of heart cycles (using the ECG) or time base Maximum storage in ECG beats mode is 10 cycles Maximum storage in time base mode is 60 seconds
  • Cine review up to 255 frame-by-frame images

Connectivity

  • S-video (in/out) to VCR for recording and playback
  • DVI output
  • Composite video output (NTSC/PAL) to VCR or video printer
  • Audio output
  • integrated speakers
  • Ethernet or Wireless image/data transfer
  • USB ports (2)
  • RS-232 transfer
  • DICOM image Management: Store, Print, Storage Commit, Modality Worklist, MPPS

Power Supply

  • The system operates via battery or AC power
  • Rechargeable lithium-ion battery
  • AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output



  • Brand: Sonosite
  • Availability: In Stock

USD 13,650.00
