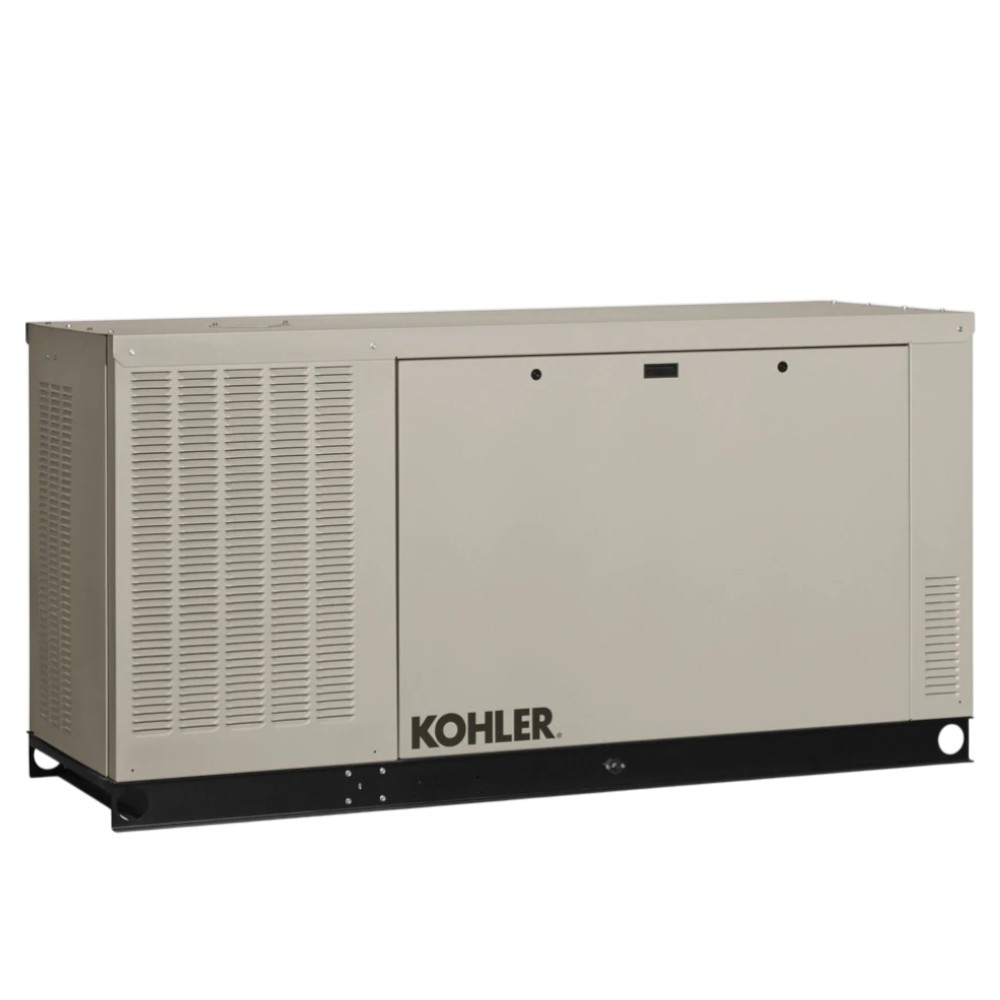

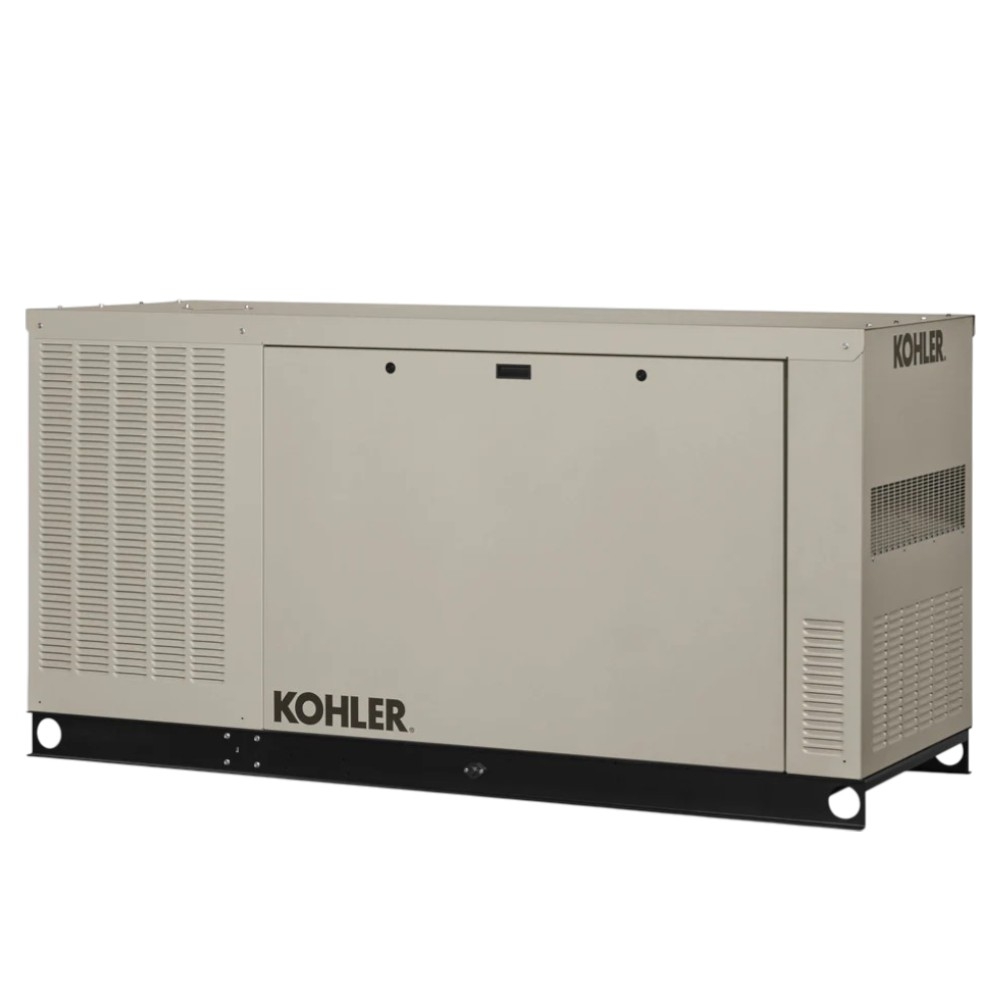

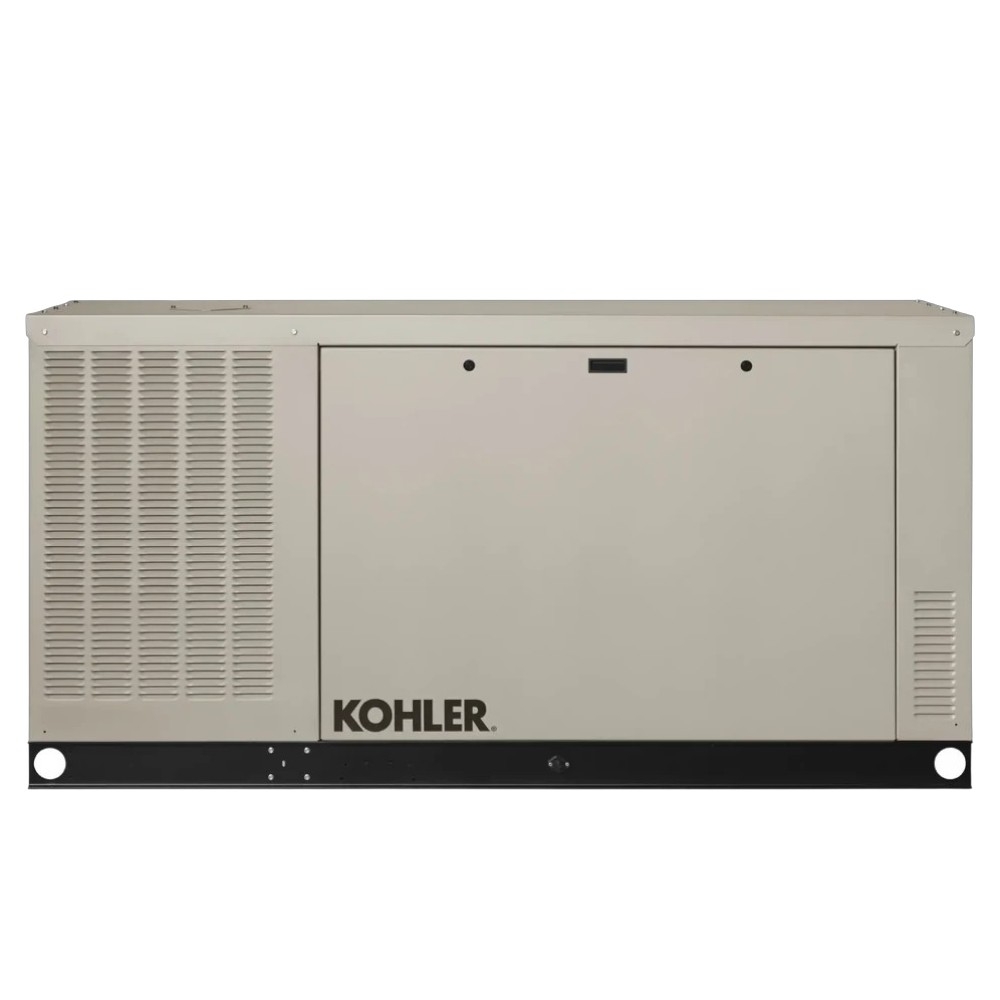

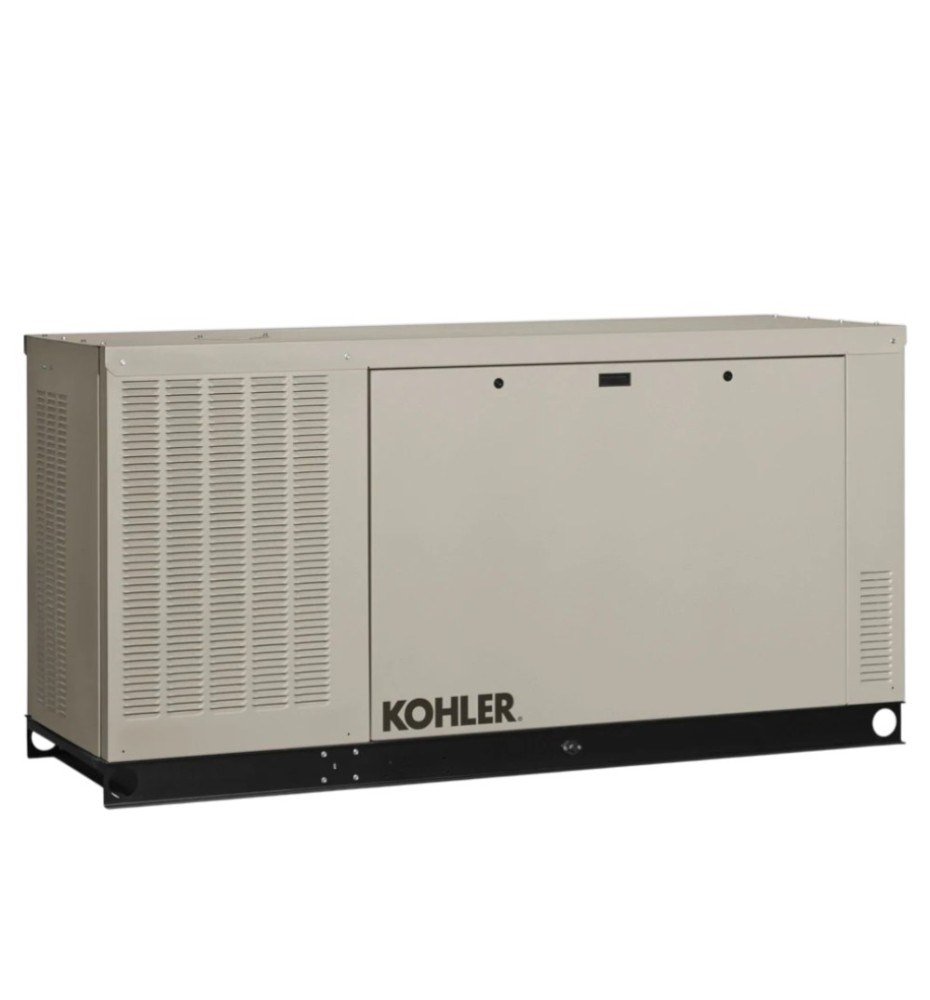

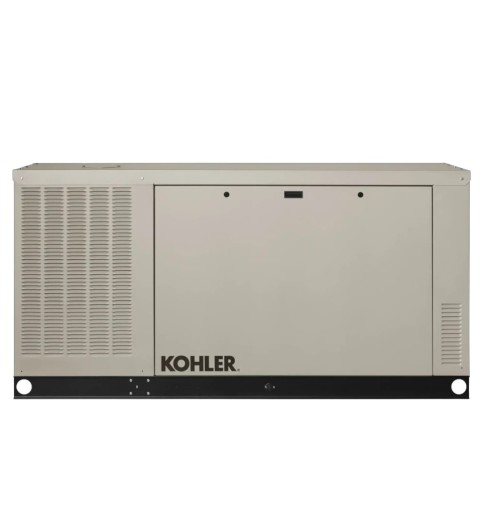

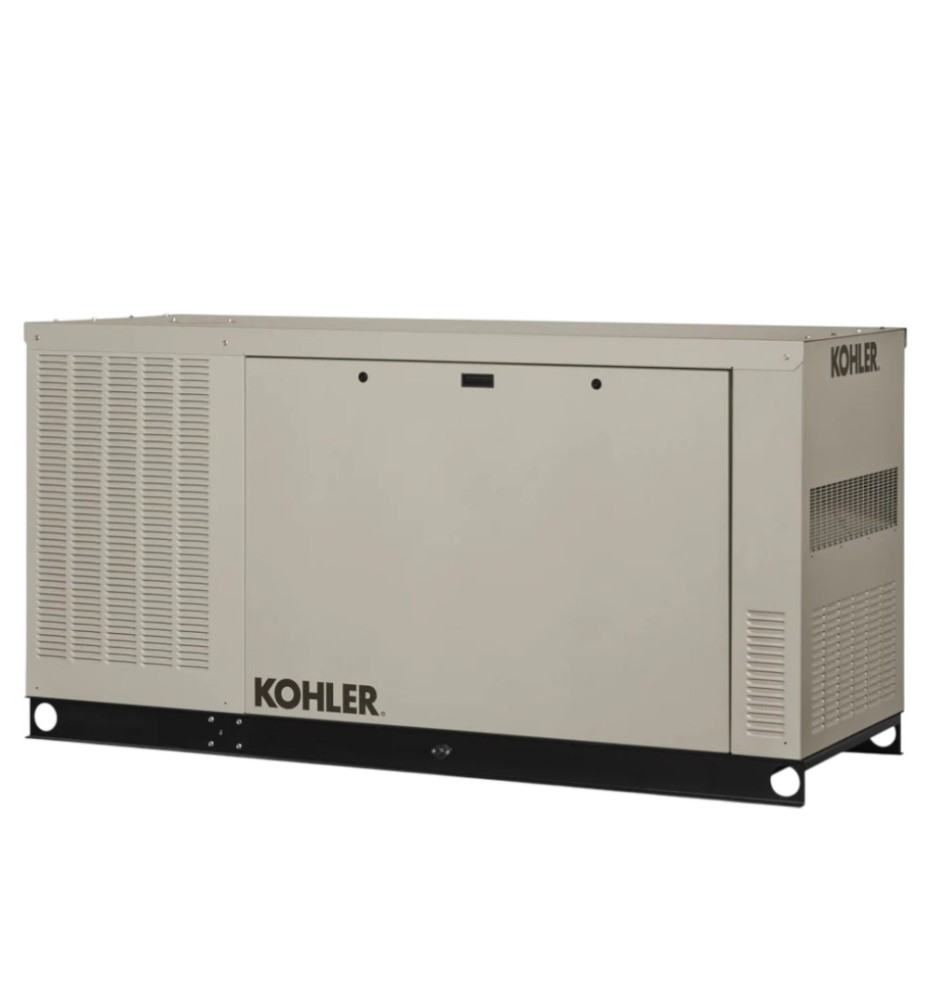

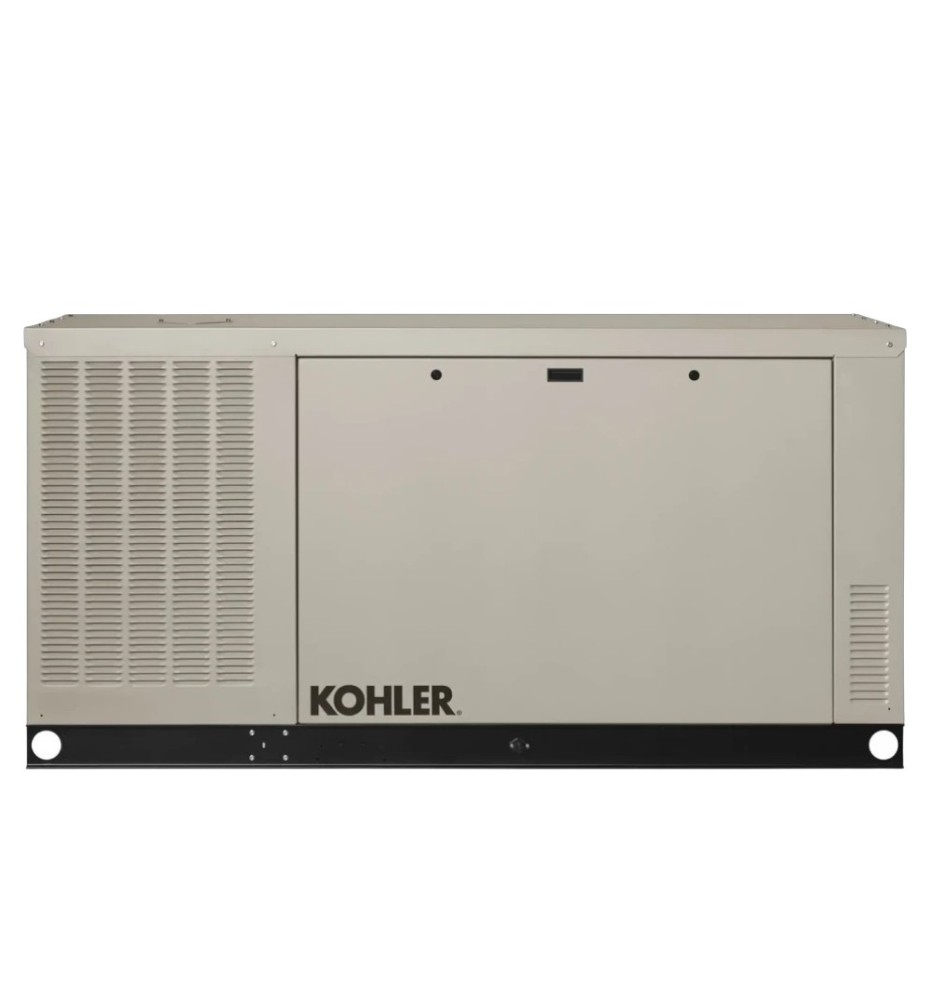

Kohler 60RCLB-QS5 - 60kW Industrial-Grade Standby Power
60,000 Watts LP | 58,000 Watts NG | 6.2L Industrial Engine
The Kohler 60RCLB-QS5 represents the absolute pinnacle of standby power generation for large luxury estates and small commercial facilities. Delivering a massive 60,000 watts of clean electricity, this unit is powered by a high-displacement 6.2L liquid-cooled industrial engine. With a 250 Amp capacity and ultra-low THD (<5%), it provides the stability required for sensitive medical equipment, data centers, and multiple high-tonnage HVAC systems simultaneously.
Elite Power Performance & Control
Operating at a steady 1800 RPM, the 60RCLB-QS5 ensures an extended lifespan and smoother performance than high-speed alternatives. It features the RDC2 Digital Controller with a full-color LCD for advanced diagnostics. For ultimate convenience, the optional OnCue Plus Management System allows for real-time WiFi monitoring via smartphone or PC, ensuring you are always informed of your power status.
SoundSmart™ Technology
Despite its massive power, this unit maintains whisper-quiet operation. Advanced acoustic insulation keeps noise levels at just 63 dB during normal operation and as low as 62 dB during diagnostic testing cycles.
Mission-Critical Reliability
With a 7-10 second full load response time, the Kohler 60RCLB is faster than most competitors, ensuring that critical medical, laboratory, or security systems experience minimal interruption during a grid failure.
Technical Specifications
| KOHLER 60RCLB-QS5 DETAILED SPECIFICATIONS | |
|---|---|
| Power System Data | |
| Rated Output (LP / NG) | 60,000W / 58,000W |
| Voltage / Phase | 120/240V Single-Phase |
| Maximum Amperage | 250 Amps |
| Alternator Type | Brushless (Ultra-low THD <5%) |
| Engine & Fuel Performance | |
| Engine Model | Kohler 6.2L Industrial V8 |
| Operating Speed | 1800 RPM (Liquid Cooled) |
| Fuel Consumption (NG @ 100%) | 1,013 ft³/hr |
| Fuel Consumption (LP @ 100%) | 10.1 gal/hr |
| Physical & Sound Characteristics | |
| Sound Level (Normal Load) | 63 dB @ 23' |
| Weight | 1,894 lbs (859 kg) |
| Dimensions (L x W x H) | 89.8" x 32.9" x 46.5" |
Core Features & Construction
- Commercial-Grade Durability: Aluminum corrosion-resistant housing with a powder-coated finish.
- Dual Fuel Capability: Flexible operation on Natural Gas (NG) or Liquid Propane (LP) vapor.
- Installation Versatility: NFPA 37 compliant reduced setback (18" clearance from structures).
- Integrated Maintenance: Built-in 2.5A battery charger and GFCI service outlet for maintenance equipment.
- American Quality: Engineered and built in the USA with Kohler’s 5-Year/2000-Hour warranty.
Logistics & System Requirements:
- Transfer Switch: RXT Series Automatic Transfer Switch is required (Sold Separately).
- Battery: Requires 12V / 630 CCA battery (Not Included).
- Delivery: Unit weighs nearly 1,900 lbs; loading dock or forklift is mandatory for offloading.
- Professional Setup: Comprehensive professional installation and concrete pad required.
Brand: Kohler Power Systems
Certifications: EPA Certified / NFPA 37 Compliant / Made in USA
Engine: 6.2L Liquid-Cooled V8 Industrial
Warranty: 5-Year / 2000 Hour Limited Warranty
Kohler 60RCLB-QS5 120/240V Single Phase 60kW Standby Power Generator
- Product Code: 60RCLB-QS5
