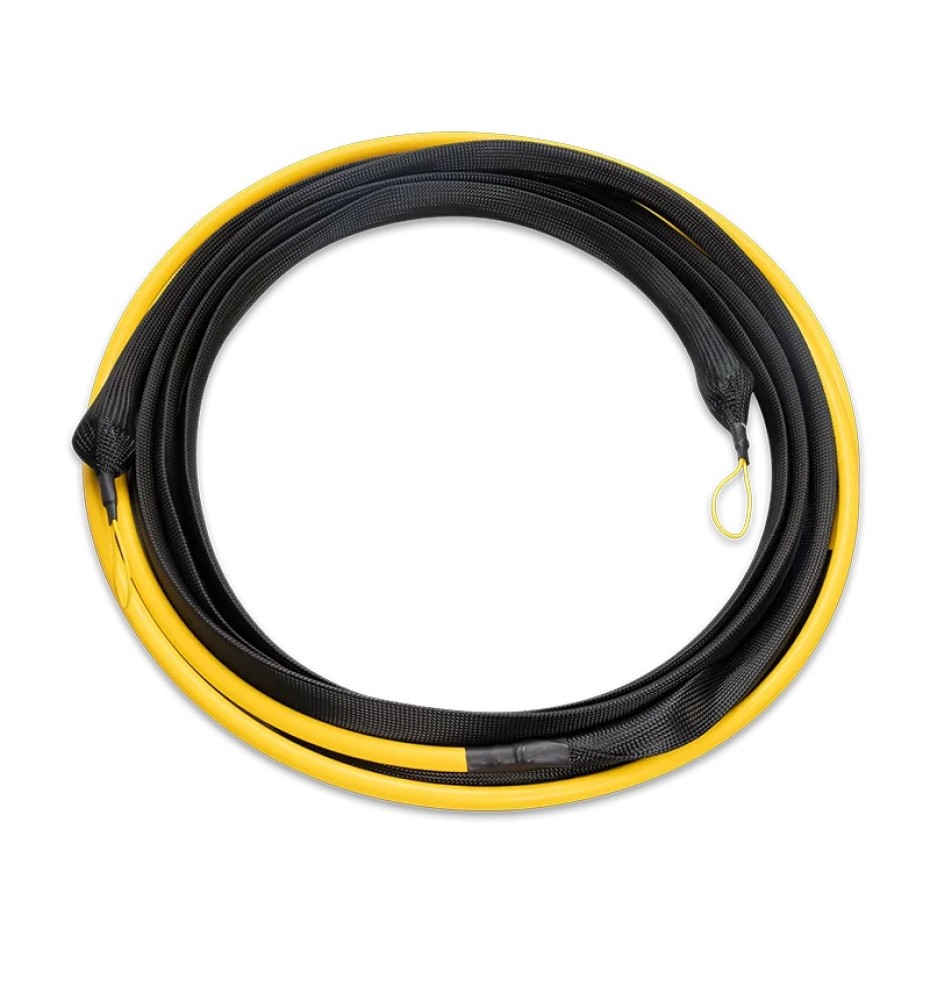

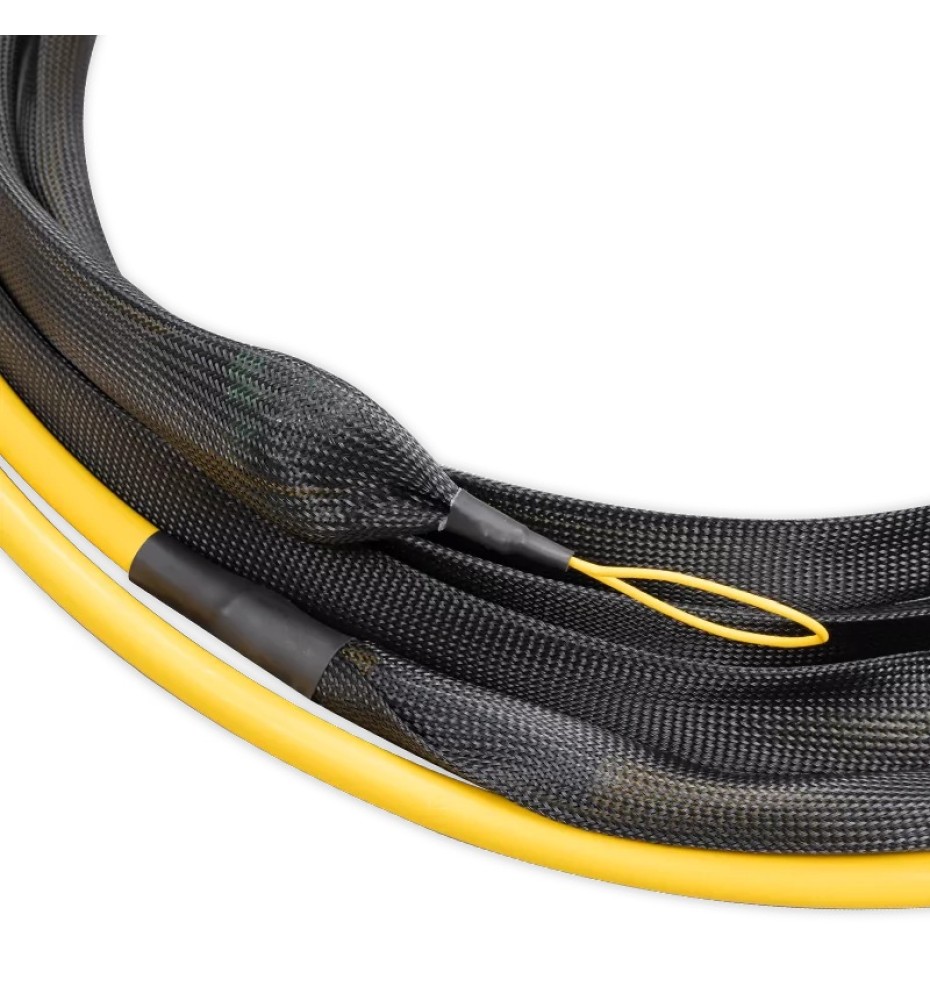

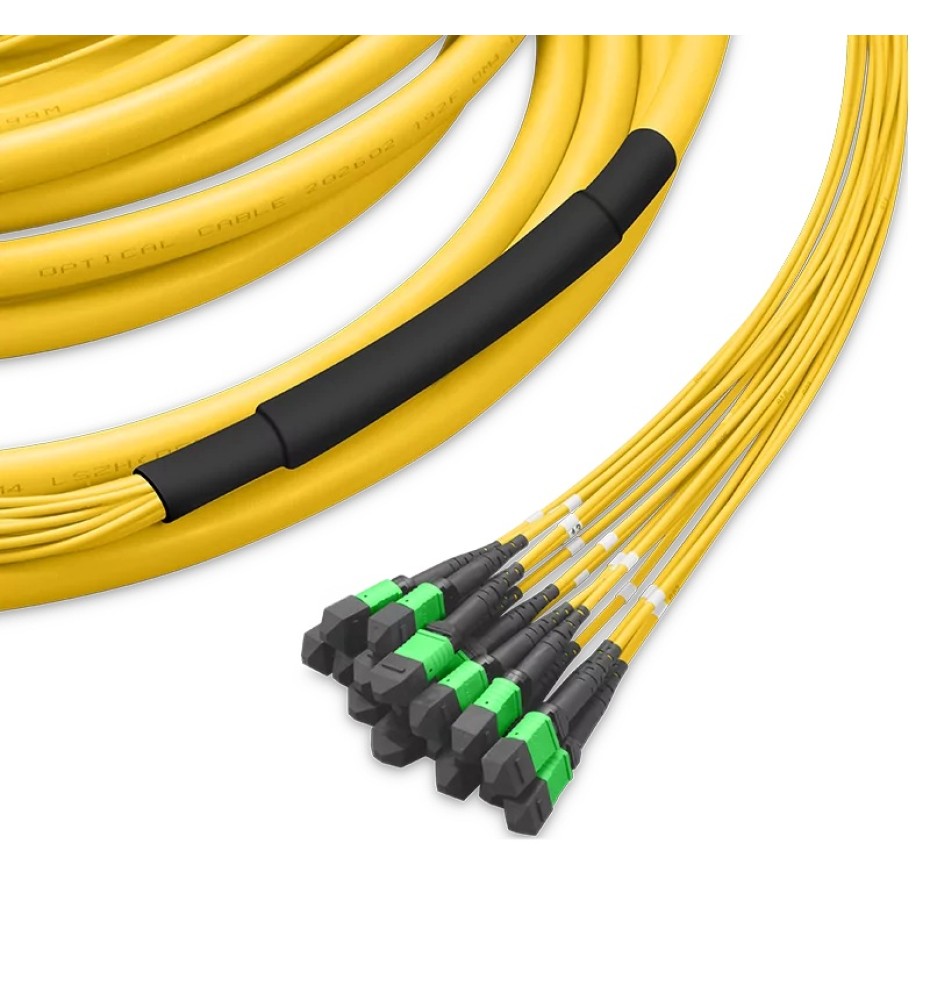

Cable Type: 192 Fibers 16 x MPO-12 Single Mode

MPO trunk cables support seamless migration to higher data rates and are used for high-density intra-cabinet patching. They offer a cost-efficient alternative to field termination, enabling scalable connectivity while dramatically saving tray space and simplifying cable management. The 16xMPO-12 configuration aligns perfectly with standard high-density networking switch port multiples, allowing data centers to purchase and deploy backbone infrastructure in exact integer multiples. This 192-fiber single mode trunk provides a high-capacity transport highway, ensuring precise network scaling and flawless hardware matching with mainstream transceiver interfaces such as 400G QSFP-DD DR4/FR4 and standard MPO-12 single-mode optics.

SPECIFICATIONS

• Connector Type: MPO Female to Female
• Polish Type: APC to APC
• Polarity: Type B
• Fiber Mode: OS2 9/125μm
• Fiber Count: 192(16x12) Fibers
• Wavelength: 1310/1550nm
• Cable Jacket/Flame Rating: LSZH/OFNP
• Insertion Loss: ≤0.35dB
• Return Loss: ≥60dB
• Attenuation at 1310 nm: ≤0.35 dB/km
• Attenuation at 1550 nm: ≤0.21 dB/km
• Cable Outside Diameter (OD): 17.0-18.0mm
• Breakout Outside Diameter (OD): 3.0mm
• Tensile Strength: 200/660N (Long/Short Term)
• Connector Durability: ≥ 500 - 1000 times
• Breakout Length: 3m
• Operating Temperature: LSZH: -20~70°C, OFNP: 0~70°C
