Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T3770E. With a compact footprint and all-front operation, the T3770E fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds1. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel drop on demand |
| Ink Type | UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) |
| Nozzle Configuration | 9,600 nozzles (1,600 x 6 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle |
| Maximum Resolution | 2400 x 1200 dpi |
| Real-Time Black Ink Selection | Dedicated Photo and Matte Black Ink channels selected automatically based on media type |
| Print Speed | A1/D Size (Plain Paper): 16 sec A1/D-Size (Glossy): 65 sec (Speed Mode) |
| Printer Language/Drivers | Epson Professional Print Drivers (included), Epson ESC/P® raster, HP-GL/2, HP RTL) |
| Memory (Built-In) | 4 GB |
| In-Box Cartridge Fill Volume | Colors (C, M, Y, R) 240 mL each Black (MK, PK) 240 mL each |
| Retail Cartridge Fill Volume | Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL Black (MK, PK) 110 mL, 350 mL or 700 mL |
| Ink Cartridge Shelf Life | 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*. |
| Minimum Roll Width | Minimum 10" |
| Maximum Roll Width | Up to 24" |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual (replaceable) |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lb |
| Roll Media Thickness | 0.07 mm to 0.8 mm |
| Roll Paper Remaining | Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel. |
| Single Sheet, Front or Rear Loading | Up to 24" wide |
| Minimum Sheet Width | 8" |
| Minimum Sheet Length | 8" |
| Sheet Media Max. Thickness | Up to 1.5 mm (rigid posterboard) |
| Line Accuracy | ±0.1% or ±0.26 mm (whichever is greater) |
| Margin | Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths |
| Top/Bottom | Roll Paper: Min. 3 mm top / 3mm bottom 0mm if using BorderFreeCut Sheet: Min. 3 top / 12.7 mm bottom |
| BorderFree Sizes | 10", 13", 16", 17", 20" or 24" wide |
| Maximum Printable Length | 298 ft |
| Minimum Line Width | 0.08 mm |
| Articulating LCD Display | 4.3" touchscreen |
| USB Expansion Port | Optional RFID card reader |
| Printer Interfaces | SuperSpeed USB 3.0, 100BASE-TX/1000BASE-T/IEEE 802.11b/g/n/ac, USB memory stick, 960 GB (SSD) optional |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows ® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® 32-bit/64-bit, Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Dimensions (W x D x H) | 54" x 20" x 38" (storage and operating) |
| Dimensions (W x D x H) | 54" x 33" x 38" (paper basket extended) |
| Weight | 254 lb |
| Acoustic Noise Level | Operating: 49.6 dBA Sleep: 6.6 dBA |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation) |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL 62368-1) Compliant with FCC Class B Requirements |
| Electrical Requirements | Voltage: AC 110 V–240 V Frequency: 50 Hz–60 Hz Current: 3.4 A |
| Power Consumption | Printing: Approx. 75 W Ready: Approx. 32 W Sleep: 2 W Power Off (Stand By): 0.3 W |

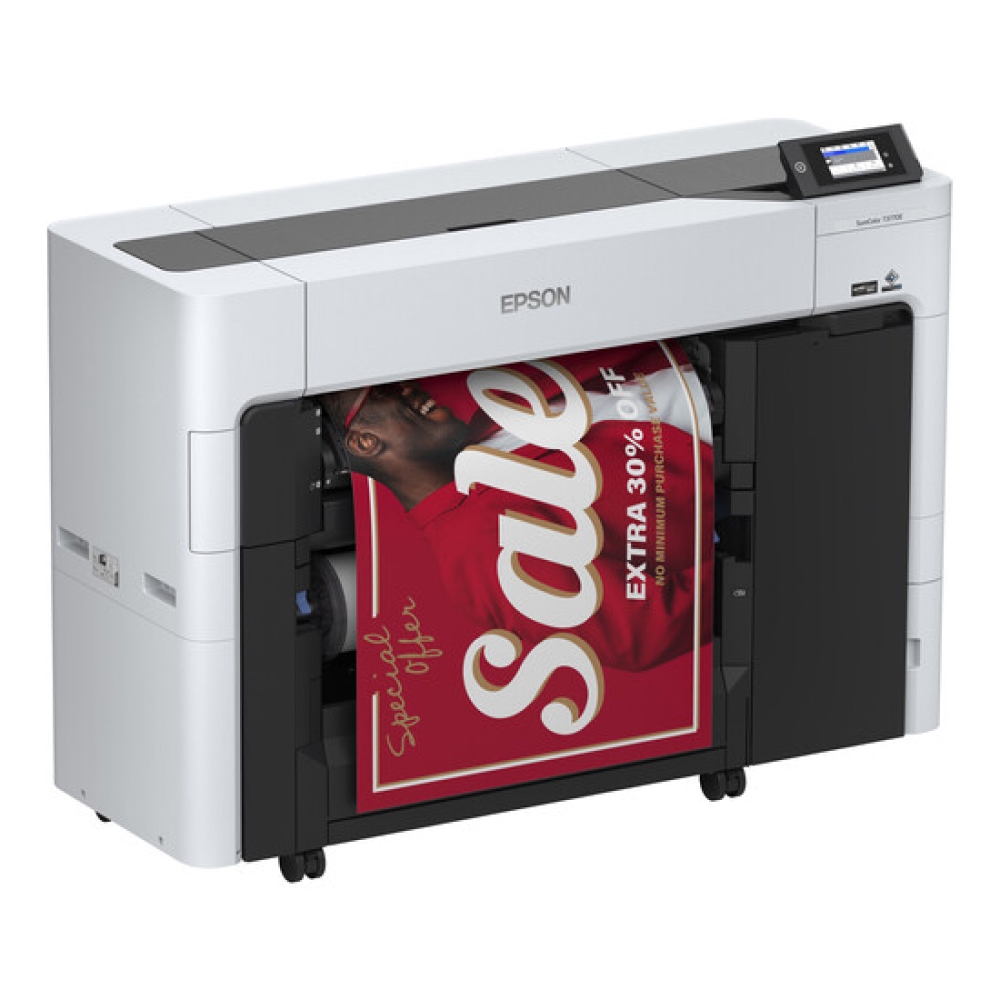

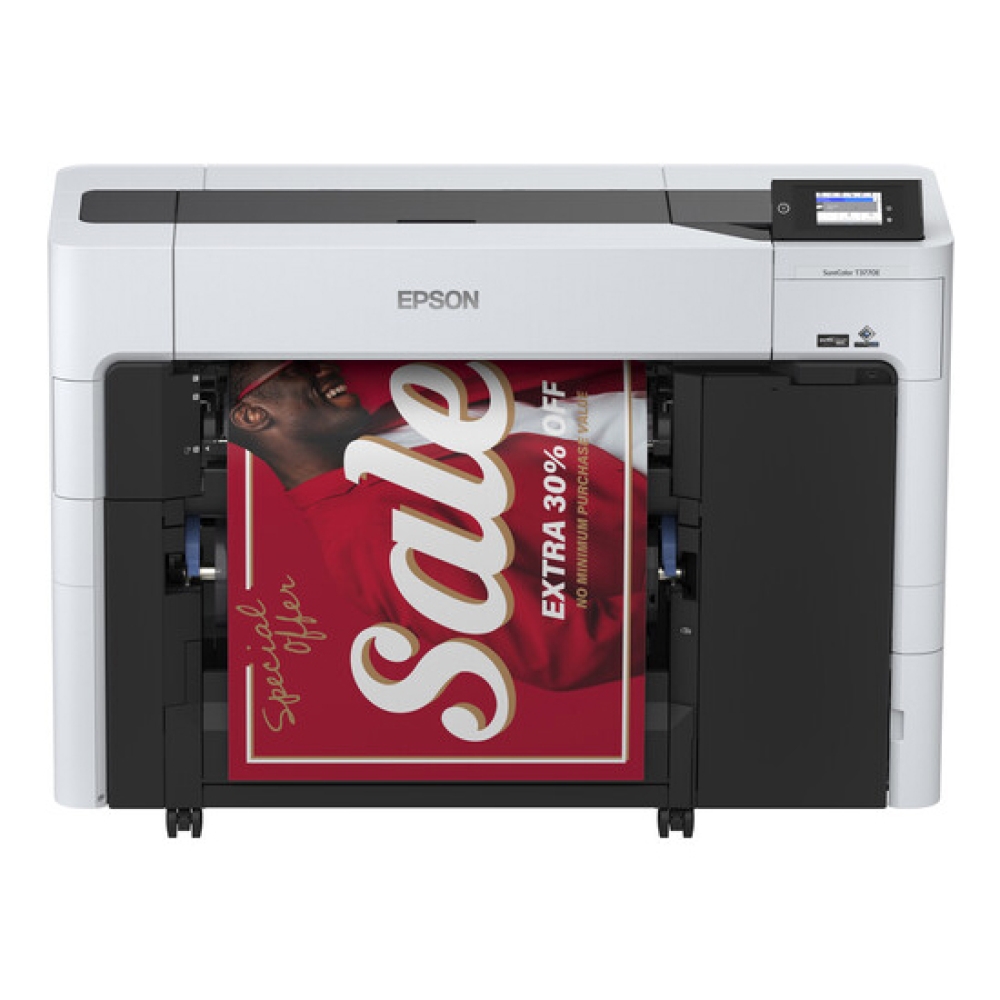

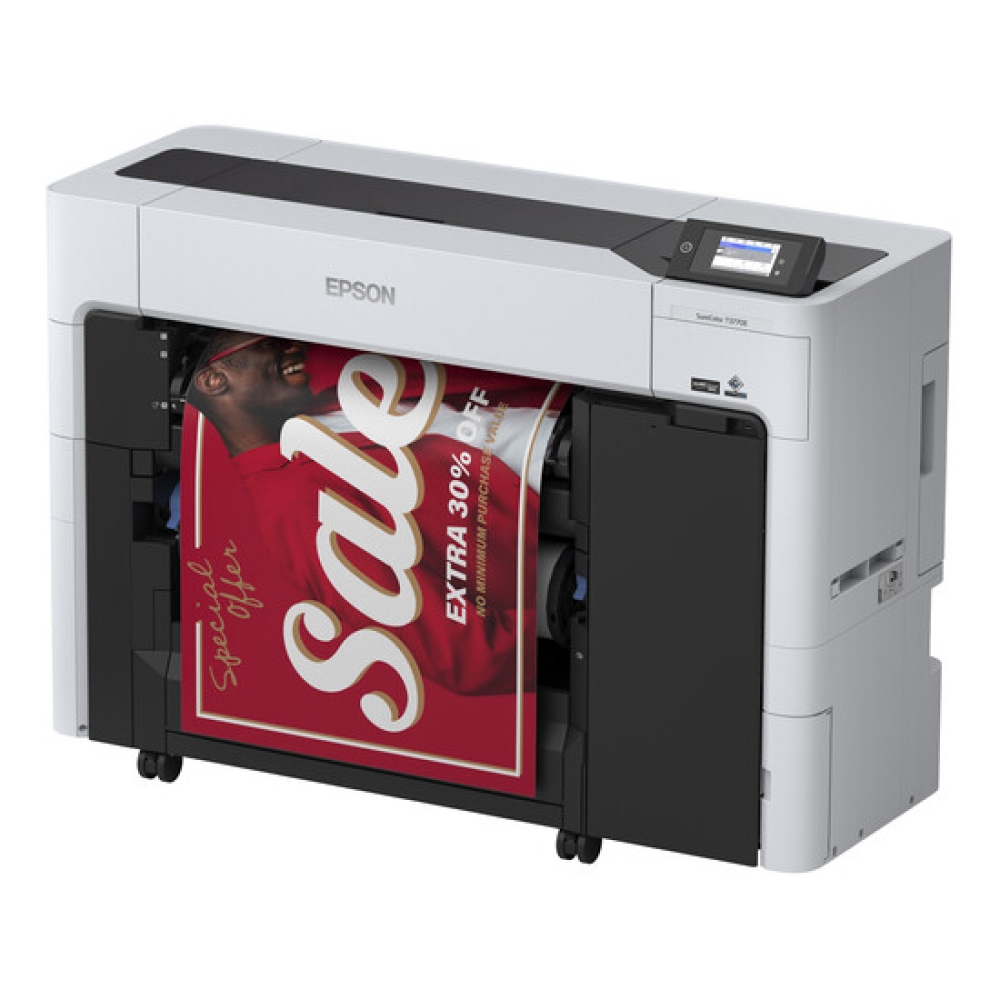

Epson SureColor T3770E 24" Large-Format Single-Roll CAD/Technical Printer
- Product Code: EP54437
Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T3770E. With a compact footprint and all-front operation, the T3770E fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds1. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel drop on demand |
| Ink Type | UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) |
| Nozzle Configuration | 9,600 nozzles (1,600 x 6 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle |
| Maximum Resolution | 2400 x 1200 dpi |
| Real-Time Black Ink Selection | Dedicated Photo and Matte Black Ink channels selected automatically based on media type |
| Print Speed | A1/D Size (Plain Paper): 16 sec A1/D-Size (Glossy): 65 sec (Speed Mode) |
| Printer Language/Drivers | Epson Professional Print Drivers (included), Epson ESC/P® raster, HP-GL/2, HP RTL) |
| Memory (Built-In) | 4 GB |
| In-Box Cartridge Fill Volume | Colors (C, M, Y, R) 240 mL each Black (MK, PK) 240 mL each |
| Retail Cartridge Fill Volume | Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL Black (MK, PK) 110 mL, 350 mL or 700 mL |
| Ink Cartridge Shelf Life | 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*. |
| Minimum Roll Width | Minimum 10" |
| Maximum Roll Width | Up to 24" |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual (replaceable) |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lb |
| Roll Media Thickness | 0.07 mm to 0.8 mm |
| Roll Paper Remaining | Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel. |
| Single Sheet, Front or Rear Loading | Up to 24" wide |
| Minimum Sheet Width | 8" |
| Minimum Sheet Length | 8" |
| Sheet Media Max. Thickness | Up to 1.5 mm (rigid posterboard) |
| Line Accuracy | ±0.1% or ±0.26 mm (whichever is greater) |
| Margin | Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths |
| Top/Bottom | Roll Paper: Min. 3 mm top / 3mm bottom 0mm if using BorderFreeCut Sheet: Min. 3 top / 12.7 mm bottom |
| BorderFree Sizes | 10", 13", 16", 17", 20" or 24" wide |
| Maximum Printable Length | 298 ft |
| Minimum Line Width | 0.08 mm |
| Articulating LCD Display | 4.3" touchscreen |
| USB Expansion Port | Optional RFID card reader |
| Printer Interfaces | SuperSpeed USB 3.0, 100BASE-TX/1000BASE-T/IEEE 802.11b/g/n/ac, USB memory stick, 960 GB (SSD) optional |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows ® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® 32-bit/64-bit, Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Dimensions (W x D x H) | 54" x 20" x 38" (storage and operating) |
| Dimensions (W x D x H) | 54" x 33" x 38" (paper basket extended) |
| Weight | 254 lb |
| Acoustic Noise Level | Operating: 49.6 dBA Sleep: 6.6 dBA |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation) |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL 62368-1) Compliant with FCC Class B Requirements |
| Electrical Requirements | Voltage: AC 110 V–240 V Frequency: 50 Hz–60 Hz Current: 3.4 A |
| Power Consumption | Printing: Approx. 75 W Ready: Approx. 32 W Sleep: 2 W Power Off (Stand By): 0.3 W |
- Brand: Epson
- Availability: In Stock
USD 1,800.00
Tags:Epson Printer
