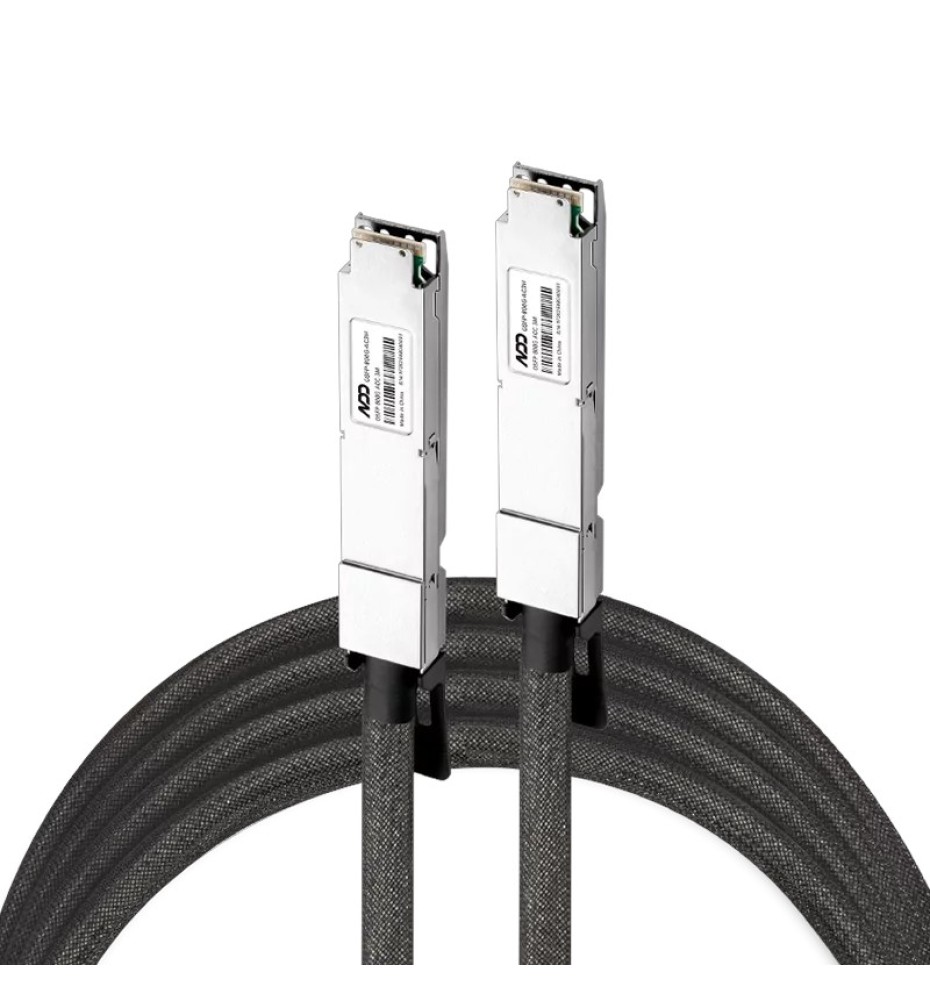

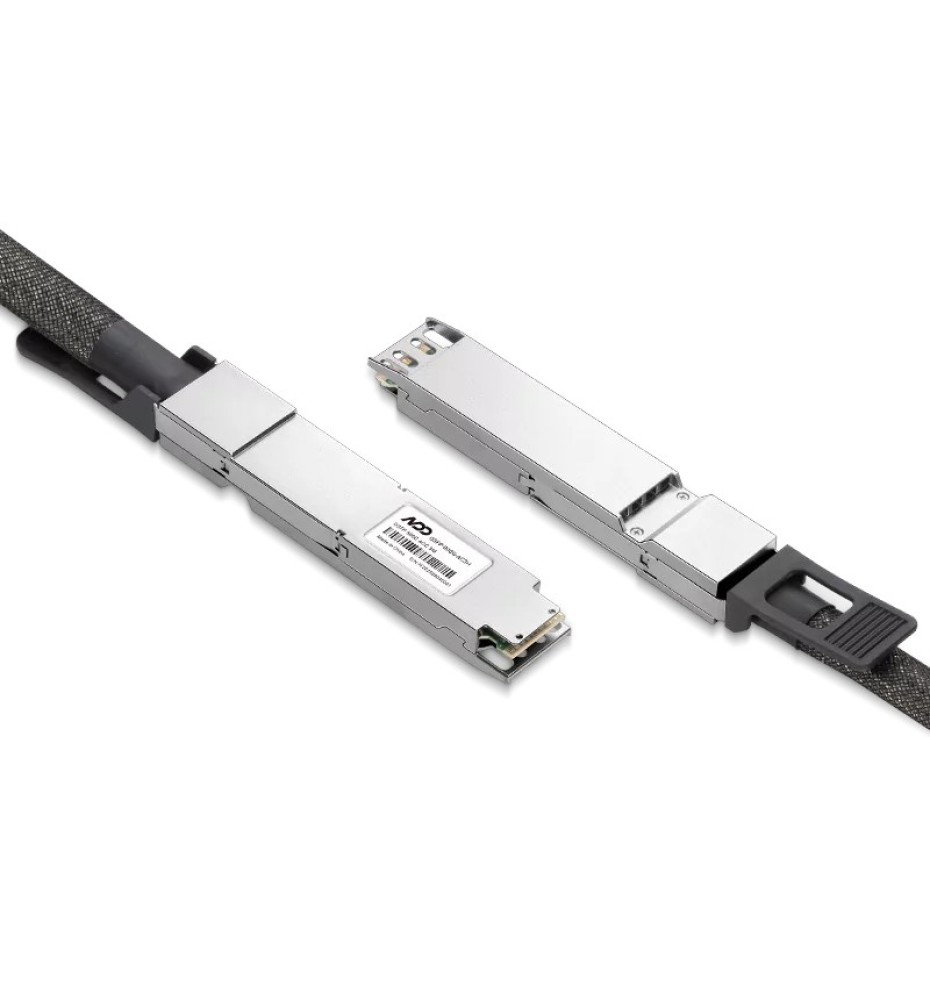

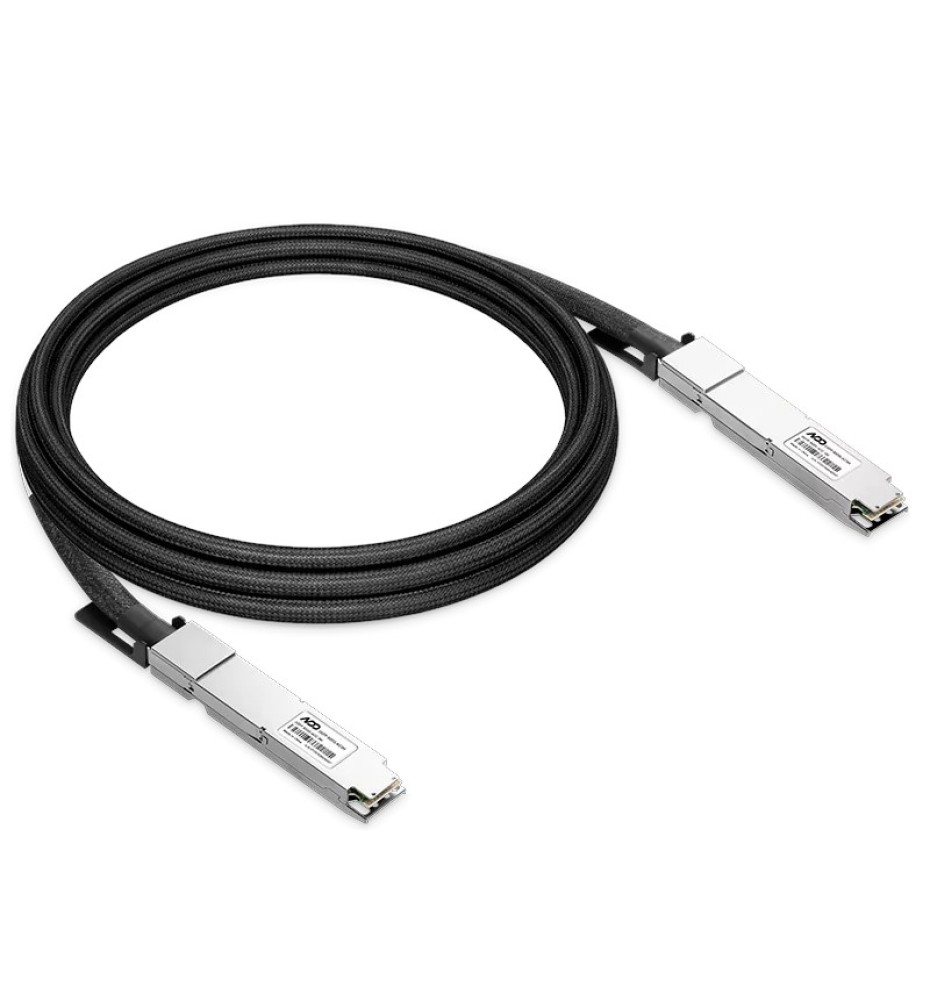

NVIDIA/Mellanox Compatible 800G Twin-port OSFP to OSFP Active Copper Cable (Finned Top/IHS, 8x100G PAM4, 3m-5m)
- Brand: NVIDIA/Mellanox
- Product Code: OSFP-800G-ACCH
- Availability: In Stock
Model / Part Number: MCA4J80-N003 (980-9I60Z-00N003 / OSFP-800G-ACCH Series)
Brand: NVIDIA / Mellanox Compatible Original Equivalent
Cable Assembly : NVIDIA/Mellanox Compatible 800G (2x400G) Twin-port OSFP Finned Top to Twin-port OSFP Finned Top Active Copper Cable (ACC), Integrated Pre-emphasis Equalizer IC, 8x100G PAM4 Modulation, Available in Lengths 3m (10ft), 4m (13ft), and 5m (16ft), 26AWG to 28AWG Wire Gauge, PET Jacket, CMIS 5.0 Compliant, Dual Finned Top / IHS Shells
The MCA4J80-N003 (980-9I60Z-00N003 / OSFP-800G-ACCH) is an enterprise-grade 800Gb/s (2x400Gb/s) Twin-port OSFP to Twin-port OSFP Active Copper Cable (ACC) designed for extended intra-rack and inter-rack connectivity in High-Performance Computing (HPC) and AI supercomputing fabrics. Unlike passive DAC cables limited to 3 meters, this active cable incorporates a specialized pre-emphasis equalizer IC inside each connector head, extending reach up to 5 meters while maintaining ultra-low latency and a minimal power footprint (<1.5W per end).
Featuring Finned-Top / Integrated Heat Sink (IHS) OSFP connectors on both ends, the MCA4J80-N003 is purpose-built for optimal thermal management and direct airflow inside air-cooled switch chassis. It is fully verified for seamless interconnectivity across 800G InfiniBand NDR and 800G Ethernet platforms, including NVIDIA Quantum-2 (QM9700 / QM9790) and NVIDIA Q3200-RA switches.
Key Features
- Active Equalization Technology: Built-in signal booster ICs extend reliable 800G transmission up to 5m while overcoming physical copper attenuation barriers.
- Dual Finned-Top Thermal Profile: Both connectors feature integrated heat sink fins designed specifically for high-density air-cooled switch cages.
- 800Gbps Twin-Port Architecture: Operates 8 parallel electrical channels at 106.25Gb/s PAM4 to deliver 800G total bandwidth (2x400G logical split).
- Extended Distance Options: Available in 3m (10ft), 4m (13ft), and 5m (16ft) lengths with robust 26AWG–28AWG wire construction.
- Low Power & Ultra-Low Latency: Consumes under 1.5W per connector end, providing an energy-efficient alternative to optical transceivers for medium-reach links.
- 100% NVIDIA System Interoperability: Validated with Quantum-2 switch systems, fully compliant with IBTA Industrial BER standards, OSFP MSA, CMIS 5.0, and RoHS.
Technical Specifications
| Part Number / Model | MCA4J80-N003 (980-9I60Z-00N003 / OSFP-800G-ACCH Series) |
| Cable Type | Active Copper Cable (ACC) with Pre-emphasis Equalizer IC |
| Connector Form Factor | Twin-port OSFP Finned Top to Twin-port OSFP Finned Top (IHS) |
| Data Rate / Protocols | 800Gbps (2x 400Gb/s) | InfiniBand NDR & 800G Ethernet Compliant |
| Available Cable Lengths | 3m (10ft), 4m (13ft), 5m (16ft) |
| Wire Gauge (AWG) | 26AWG to 28AWG (Length-dependent) |
| Modulation Scheme | 8x 106.25Gb/s PAM4 Electrical Pairs |
| Power Consumption | <1.5W per end |
| Jacket Material & Bend Radius | PET Braided Jacket | Minimum Bend Radius: 10x Outer Diameter (OD) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Standards Compliance | OSFP MSA, CMIS 5.0, IBTA BER Standards, RoHS Compliant |
| Target Applications | 1.6T XDR / 800G NDR Switch to Switch Interconnects (NVIDIA Q3200-RA, QM9700, QM9790) |
