Model / Series: O4Q112-800G-ACCH Series (800G OSFP to 4x200G QSFP112 Breakout)

Brand: NVIDIA / Mellanox Compatible Original Equivalent

Cable Assembly : NVIDIA/Mellanox Compatible 800G (2x400G) Twin-port OSFP Finned Top to 4x 200G QSFP112 Flat Top Active Copper Splitter Cable (ACC), Integrated Signal Equalizer ICs, 8x100G PAM4 to 4x 2x100G PAM4 Modulation, Available in Lengths 1m (3ft), 2m (7ft), 3m (10ft), 4m (13ft), and 5m (16ft), 26AWG to 30AWG Wire Gauge, PET Jacket, CMIS Compliant, Finned Top (OSFP End) & Flat Top (QSFP112 End)

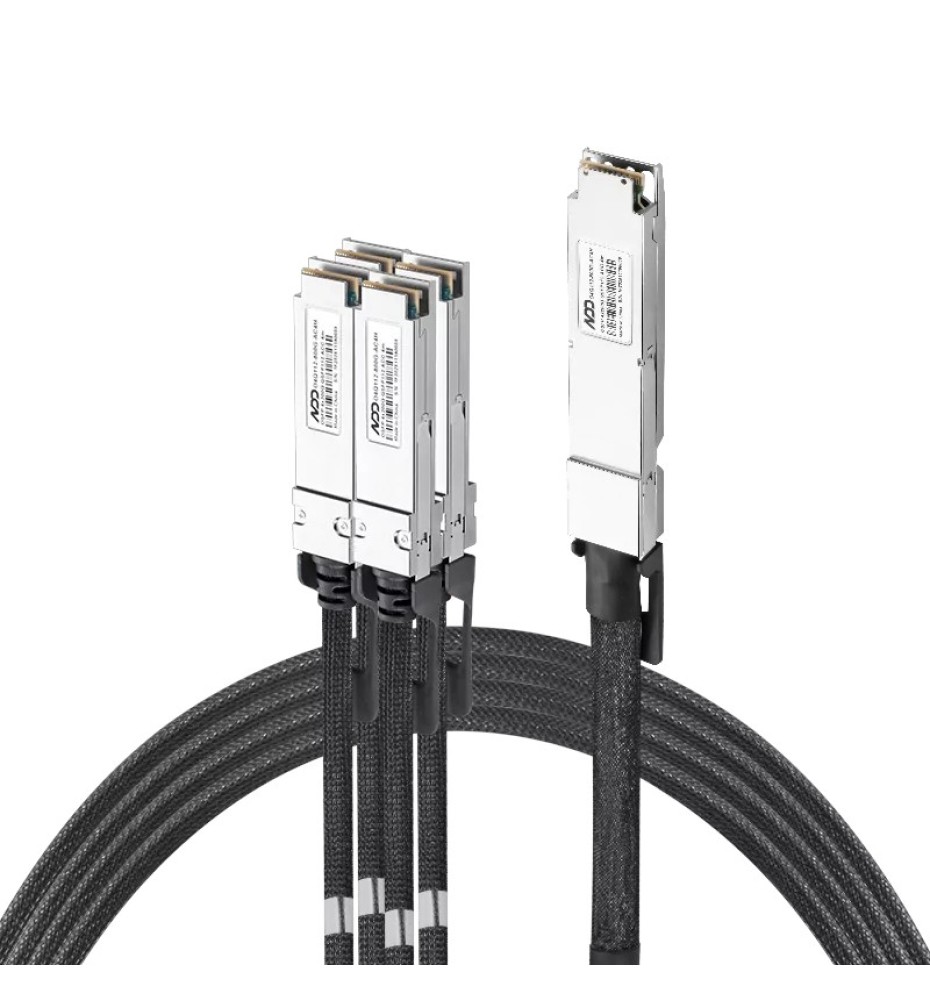

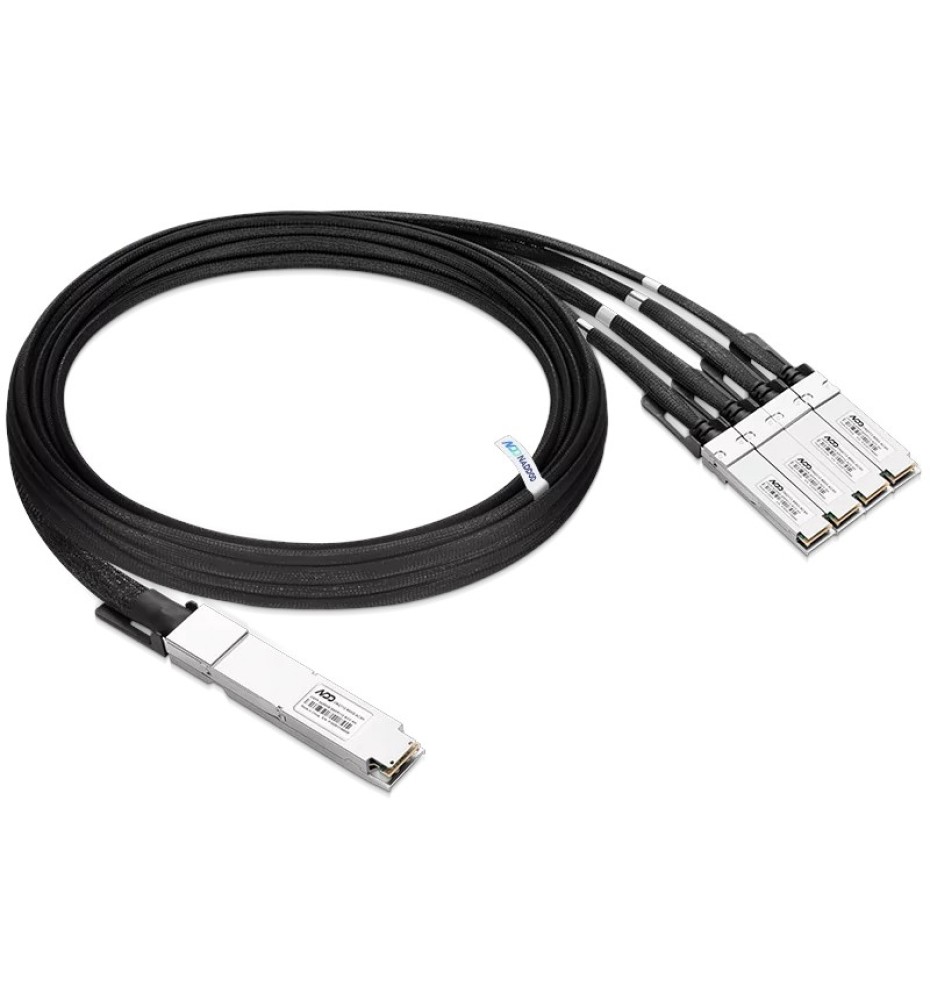

The 800G Twin-port OSFP to 4x200G QSFP112 Active Copper Splitter Cable (O4Q112-800G-ACCH) is an advanced quad breakout (splitter) solution designed for high-density InfiniBand NDR and 800G Ethernet AI supercomputing architectures. Operating eight parallel 100G-PAM4 copper channels, this cable splits a single 800G (2x400G) switch port into four independent 200G links. Equipped with built-in active signal equalizer ICs, it extends reliable copper transmission reach up to 5 meters while maintaining ultra-low latency and minimal power consumption.

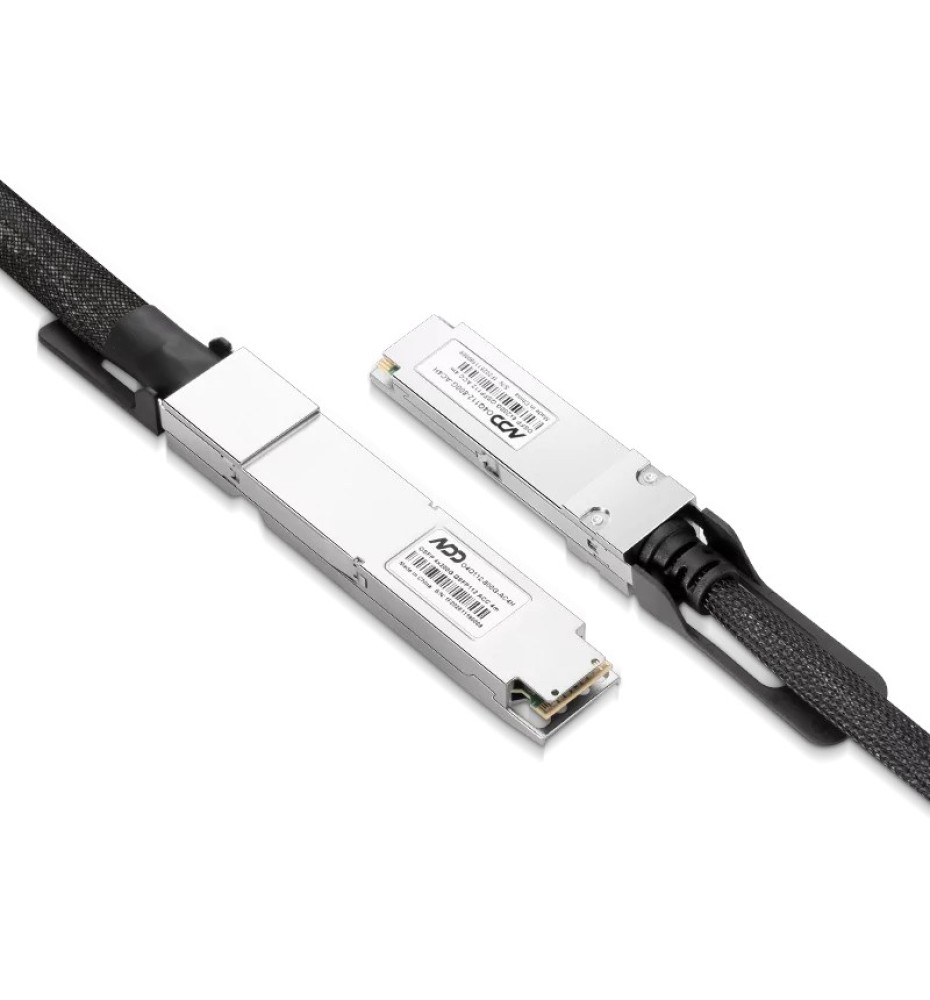

Engineered for hybrid cooling topologies, the switch-side Twin-port OSFP connector features a Finned Top (IHS) design for enhanced airflow inside air-cooled switch cages. The host-side 4x QSFP112 connectors feature a Flat Top shell designed to work seamlessly with riding heat sinks inside server adapter cages. This cable is natively optimized for linking 800G NDR switches—such as NVIDIA Quantum-2 (QM9700 / QM9790) and NVIDIA Q3200-RA—directly to 200G host ports on NVIDIA ConnectX-7 HCAs and BlueField-3 DPUs/SuperNICs.

Key Features

• 800G to 4x200G Quad Breakout: Splits an 800G (2x400G) Twin-port OSFP switch port into four individual 200G (2x100G PAM4) QSFP112 adapter connections.
• Active Equalization ICs: Built-in pre-emphasis signal booster ICs extend passive copper distance limits up to 5 meters with low bit error rates (BER).
• Optimized Hybrid Thermal Profile: Finned Top OSFP end for air-cooled switch cages paired with Flat Top QSFP112 ends for server NIC riding heat sinks.
• Flexible Reach Configurations: Available in 1m (3ft), 2m (7ft), 3m (10ft), 4m (13ft), and 5m (16ft) lengths using 26AWG–30AWG wire gauges.
• Low Power Consumption: Consumes <1.5W on the OSFP switch end and <0.4W per QSFP112 host end, delivering high energy efficiency compared to optical solutions.
• 100% InfiniBand NDR Compliance: Thoroughly verified for seamless interoperability with NVIDIA Quantum-2 switches, ConnectX-7, BlueField-3 DPUs, IBTA BER standards, and CMIS protocols.
