MINDRAY M7 PORTABLE ULTRASOUND
The NEW Mindray M7 Portable Ultrasound System is designed to meet the needs of the clinicians' busy and challenging point-of-care environments. With the Mindray M7 Portable ultrasound system's sharp,crisp and clear image quality, it can perform any exam, from abdominal to vascular to cardiac, with efficiency and accuracy. Just by choosing a transducer, the Mindray M7 portable ultrasound brings you more benefits in more ways than ever while providing optimization, security, and satisfaction needed for both medical professional and patient. Customizable workflow applications and the durable magnesium alloy chassis with user friendly, smooth interface design saves the end user time and provides a long lasting system for years to come.
Mindray M7 Ultrasound System
Standard Configuration:
Mindray M7 Advanced Ultrasound System
Advanced Configuration:
Application specific calculations software packages:Standard Configuration:
- 15" TFT High Resolution Monitor
- Multi-beam Parallel Imaging
- Pulse Wave Doppler & HPRF
- Color/Power/ Directional Power Doppler Flow
- Tissue Harmonic Imaging (THI), Phased Inversion THI
- iZoom full screen image enlargement
- iTouch intelligent image optimization
- iBeam spatial compounding
- iClear speckle reduction
- iStation Image Management
- Smart 3D – free hand 3D imaging
- 320GB hard disk (128GB solid state drive available on latest Revision 9 Premium)
- Supports DICOM, AVI, BMP, and JPG
- S-video output and two USB ports
- Measurement & calculation software packages
- AC adapter and batteries (4500mAh)

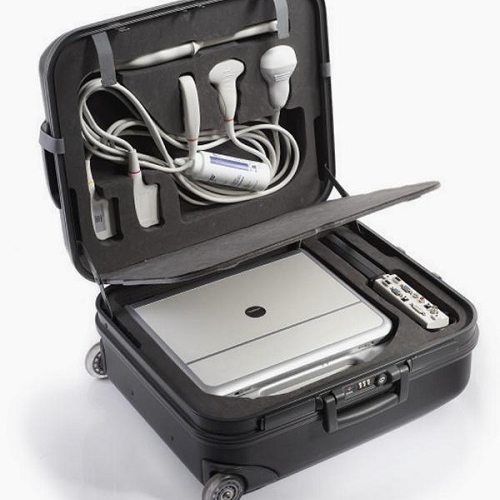

- Traveling case
Mindray M7 Advanced Ultrasound System
Advanced Configuration:
- 15" TFT High Resolution Monitor
- Multi-beam Parallel Imaging
- Pulse Wave Doppler & HPRF
- Color/Power/ Directional Power Doppler Flow
- Tissue Harmonic Imaging (THI), Phased Inversion THI
- iZoom full screen image enlargement
- iTouch intelligent image optimization
- iBeam spatial compounding
- iClear speckle reduction
- iStation Image Management
- Continuous Wave Doppler hardware module
- 4D – 3D real-time imaging (requires 4CD4 transducer)
- Smart 3D – free hand 3D imaging
- 320GB hard disk (128GB solid state drive available on Rev 9 Premium)
- Supports DICOM, AVI, BMP, and JPG
- S-video output and two USB ports
- Measurement & calculation software packages
- AC adapter and batteries (4500mAh)
- Travelling case
MSK, Abdomen, Obstetrics, Gynecology, Cardiology, Small Parts, Urology, Vascular, Pediatrics, Emergency Medicine, Anesthesia
Mindray M7 Application Options:
- Free Xros, Anatomical M mode
- iScape View, Panoramic imaging
- Smart3D, Freehand 3D imaging
- IMT, Carotid intima-media thickness measurement and analysis
- Stress Echo (requires cardiac package, ECG, & iDock & V03.03.01 SW)
- TDI, Tissue Doppler imaging - TDI Color, Power, PW and M mode
- TDI QA Tissue Doppler imaging - TDI Color, Power, PW and QA mode (must purchase TDI, M Mode)
- Free Xros CM, Anatomical CM mode (curved)
- iNeedle needle visualization technology
- iNeedle needle software (requires version 3.0 or above)
- M7 DICOM
DICOM Package includes:
DICOM Basic: Includes:
- DICOM basic store, print, store commitment and media store
- DICOM Worklist: Download worklist from DICOM server
- DICOM MPPS: Modality performed procedure step
- DICOM Query/Retrieve: Query & retrieve patient images and information
DICOM SR Package (DICOM Package Required) includes:
- DICOM OB/GYN SR: Structure report for OB/GYN
- DICOM Vascular SR: Structure report for Vascular
- DICOM Cardiac SR: Structure report for cardiology
M7 Transducers & Needle Guides:
Convex Array Transducers:
- C5-2s Convex Array Transducer (FBW: 2-5 MHz)
- Needle guide bracket for C5-2s (NGB-015) (Stainless Steel)
- 6C2s Micro-Convex Array Transducer (5.0/6.5/8.0MHz)
- Needle guide bracket for 6C2s (NGB-005) (Stainless Steel)
- V10-4s Micro-Convex Array Endocavity Transducer (FBW: 4-10 MHz)
- V10-4Bs Micro-Convex Array Endocavity Transducer (FBW: 4-10 MHz) (curved handle)
- Needle guide bracket for V10-4s,V10-4Bs (NGB-004) (Stainless Steel)
Linear Array Transducers:
- L12-4s Linear Array Transducer (FBW 4-12 MHz)
- 7L4s Linear Transducer (FBW: 4-10 MHz)
- Needle guide bracket for 7L4s, (NGB-007) (Plastic)
- Needle guide bracket for 7L4s, (NGB-007) (Stainless Steel)
- L7-3s Linear Array Transducer (FBW 3 - 7 MHz)
- L14-6s Linear Array Transducer (FBW: 6-14 MHz)
- Needle guide bracket for L14-6s, (NGB-016) (Stainless Steel)
- L14-6Ns Linear Array Transducer (FBW: 6-14 MHz)
- Needle guide bracket for L14-6Ns, (NGB-007) (Plastic)
- Needle guide bracket for L14-6Ns, (NGB-007) (Stainless Steel)
- 7LT4s Linear Array Transducer, (FBW: 5-10)
Phased Array Transducers:
- P4-2s Phased Array Transducer (FBW 2-4 MHz)
- Needle guide bracket for P4-2s, (NGB-011) (Stainless Steel)
- P7-3s Phased Array Transducer (FBW: 3-7 MHz)
- P12-4s Phased Array Transducer (FBW 4-12 MHz)
Specialty Transducers:
- 4CD4 Volume Transducer, (FBW: 2-6 MHz) (Advanced M7 Only)
- CW2s Non-imaging CW, Pedoff, Transducer
- P7-3Ts Multi Plane TEE Phased Array Transducer (FBW: 3-7 MHz)
