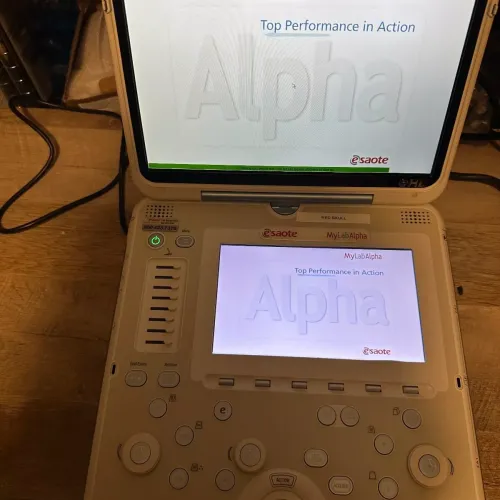

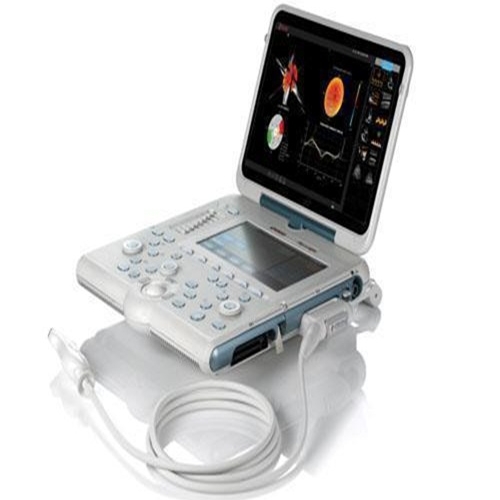

ESAOTE MYLAB ALPHA PORTABLE ULTRASOUND

MyLab^™Alpha: Top Performance In Action

MMyLab^™Alpha has been designed to offer Top Performance Ultrasound and high dynamism in very reduced size and weight. A wide range of accessories, makes MyLab^™Alpha as comfortable as a mainframe system, when it is used in a stationary mode.

It also provides a range of efficient “ready-to-go” solutions, when mobility and time are strictly important. MyLab^™Alpha is the answer to current diagnostic and interventional needs in Endocrinology, Surgery, Urology and Interventional needs.

Features

• Wide format swivel new generation 16:10 LCD monitor

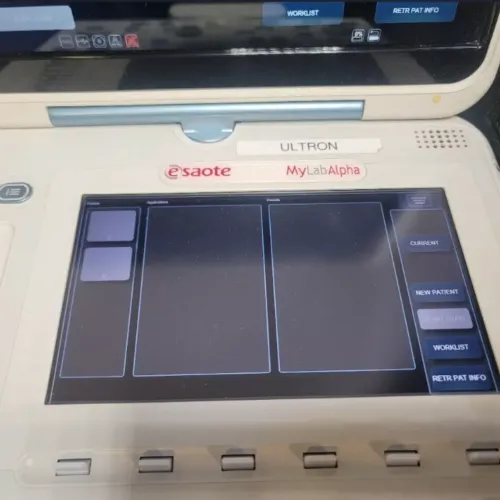

• High definition and large sized integrated touch-screen

• Simple control panel and easy access to main functions

• Optimal setting for any clinical situation

• Intelligent software architecture

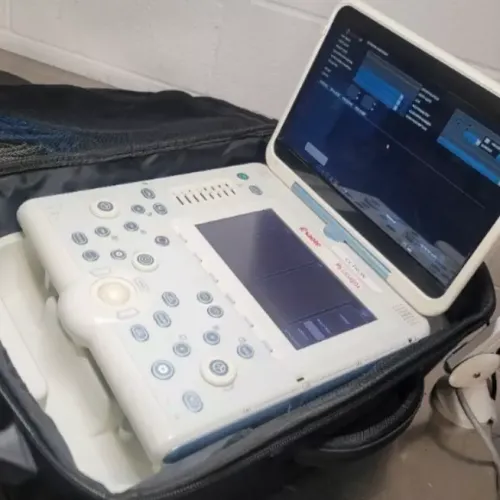

• Easy portability, innovative “ready-to-go” solutions (dedicated travelling bag), cart-based configuration available

• Wide range of accessories

• Stand-by mode

• E-Touch smart key - intelligent management of touch-screen with customized settings and functions

• E-Knob smart key (shortcut to the most frequently used parameters)

• IQProbes - extended bandwidth probes & new innovative ergonomic shape (appleprobes)

• TEI™ - Tissue Enhancement Imaging

• Tp-View for enlarged field of view, specially in breast and vascular exams

• CMM - Compass M-Mode

• XView - eXtreme View with real-time adaptive algorithm

• MView - combined standard and steered ultrasound imaging to detect all anatomical structures

• TVM - Tissue Velocity Mapping for LV motion analysis

• VPan - eXtended field of view

• Advanced CnTI™ - Contrast Tuned Imaging for contrast media procedures

• XStrain™ - Strain-Strain Rate top analysis technique for myocardial function evaluation

• XStrain™4D - Strain-Strain Rate top volumetric analysis technique for myocardial function evaluation

• RF-QIMT - Quality Intima Media Thickness for early detection of cardio-vascular diseases

• Integrated stress echo

• Visual comparison-to simultaneously compare saved images/clips from different exams (follow-up)

• Extended export capability: PC (Windows®, Mac®), mobile devices

• Easy networking, standard and wireless

• 4 USB ports, integrated CD/DVD driver

• DICOM and IHE compliance

• IHE compliance (Integrating the Healthcare Enterprise)

• MyLab™Desk3 software package for image management solution
