MINDRAY DP-50 PORTABLE ULTRASOUND

Mindray DP-50 Ultrasound Features

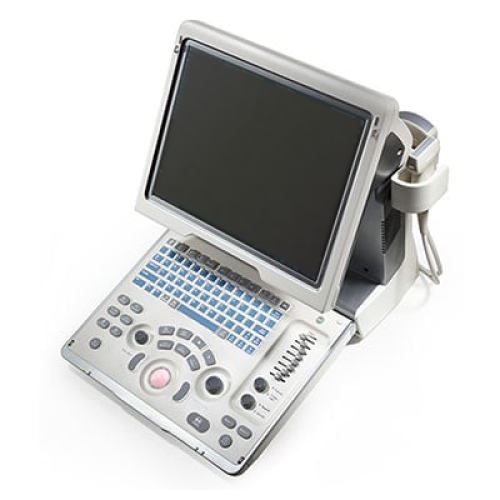

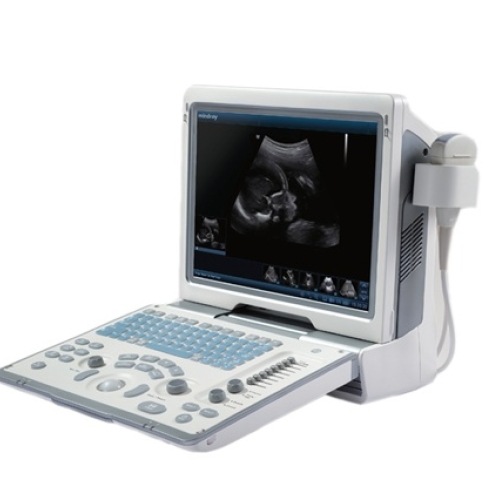

The Mindray DP-50 is a portable ultrasound system The DP-50 offers high-quality black and white digital ultrasound imagery. The system offers an X-treme engine along with high-speed processing. The Ultrasound system offers a wide range of applications including; urology, obstetrics, gynecology, small parts, orthopedics, and emergency use. Mindray Ultrasound has advanced imaging technologies such as iBeam, iClear, Tissue Harmoni imaging, TissueSpecific imaging, b Sterr, and Trapezoid imaging. The Mindray DP-50 is a compact lightweight system that comes with a 15-inch LCD screen, a backlit control panel, and a Lithium-ion battery that can run up to 120 mins. The Ultrasound comes with a quick save option, making it easy to save images to a USB or transfer them to a local server.

• Sleek, streamlined, compact shape.
• User-friendly keyboard and controls.
• Lightweight system for enhanced mobility.
• Black and White.
• 15” tilting wide-angle tilting display.
• 2 USB ports.
• Harmonic Imaging.
• iClear speckle reduction.
• iTouch auto-optimization.

Mindray DP-50 Ultrasound Specifications

Dimensions

• Unfolded: (W x H x D) 415mm (16.34in) x 396mm (15.59in) x 476mm (18.74in)
• Folded: (W x H x D) 415mm (16.34in) x 378mm (14.88in) x 190mm (7.48in)
• Weight: 7.7kg (without battery)

Electrical Power

Output

• Voltage: 100 – 240V~
• Frequency: 50/60Hz
• Input current: 1.5 – 0.8A

Output

• Output power: 500W

Battery

• Lithium-ion Battery Pack: 14.8V, 660mAh
• Charge time: <3 hours (connected to AC power supply, with the system powered off)
• Endurance time: > 120 min

Boot Time

• Boot time: = 23s
• Wake-up Time (from Standby): = 5.8s

Operating Environment

• Ambient temperature: 0°C ~ 40°C
• Relative Humidity: 30% ~ 85% (no condensation)
• Atmospheric pressure: 700hPa ~ 1060 hPa

Storage & Transportation Environment

• Ambient temperature: 20°C ~ 55°C
• Relative humidity: 30% ~ 95% (no condensation)
• Atmospheric pressure: 700 hPa ~1060 hPa

Standard Configuration

• Display: 15 in LCD, High resolution 1024 x 768
• Contrast and Brightness: Adjustable
• Screen Saver: time presettable
• Angle adjustable: 30°
• Control panel: Alphanumeric keys, Function keys
• User-defined keys: Function presettable
• 8-segment TGC Trackball: color & speed presettable
• Key Backlight: Brightness & Volume presettable
• Integrated Speakers Indicators: Power/Battery/Standby/ HDD status
