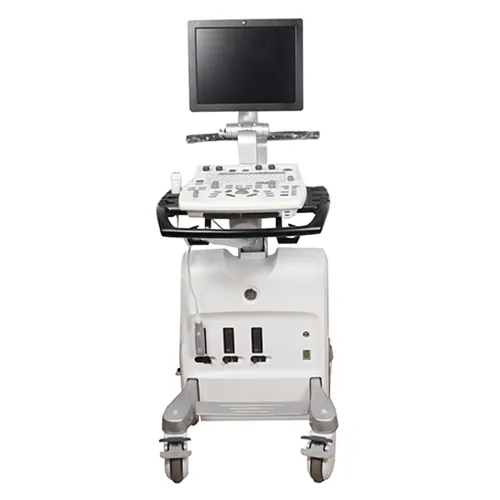

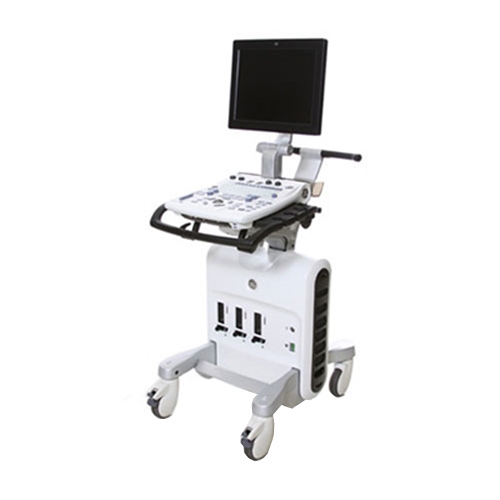

GE VIVID S5 CARDIOVASCULAR ULTRASOUND

GE Vivid S5 Ultrasound Features

The GE Vivid S5 is an Ultrasound system for Cardiovascular imaging. The Vivid S5 can be shared with other applications; Musculoskeletal, Abdominal, Pediatric, and Obstetrics. The Vivid S5 provides is known for its speed in producing quality images. The Ultrasound system offers an easy-to-maneuver ergonomic design, making for a more efficient, less tree situation. The GE Vivid S5 offers a flexible system. This allows the control panel and the keyboard to be moved around and adjusted when needed. The system offers imaging modes that include 2D Mode, Color Doppler Mode, M-Mode, PW/CW Doppler, and LVO contract. The system offers additional packages for Stress Echo for measuring the stress on a patient’s heart.

• Color Doppler Ultrasound
• 2-D, M-Mode, PW/CW Doppler
• Coded Octave Imaging (Harmonics)
• ECG Module & 3-lead cable
• Anatomical M-Mode Color Angio
• EchoPac System post-processing and data archiving
• High-Resolution 15″ monitor
• Fully Digital
• Integrated Digital Stress Echo (optional)

GE Vivid S5 Ultrasound Specifications

Dimensions

• Depth: 70 cm/27.6 in
• Width: 55 cm/21.7 in
• Height: 123 cm/48.4 into 143 cm/56.3 in
• Minimum height with folded screen: 95 cm/37.4 in
• Weight: <70 kg/154 lbs

Electrical Power

• Mains-line Operation
• Inputing rating: 100-120/230 VAC
• Power: VA
• Frequency: 50/60 Hz
• Two isolated AC outlets

Display Screen

• High-resolution, wide field-of-view, flat 15 inch TFT LCD screen
• 1024 x 768 pixels with 256 shades of gray and 16.7 million simultaneous colors available
• Scanner software supports display resolution of 800 x 600 pixels

Peripherals

• USB black and white video printer with control from system panel
• USB color video printer with control from system panel
• USB Inkjet printer, supporting ink-saving mode
• External MOD 5.25 inch drive
• USB flash drive for exam export
• USB flash memory card
• USB wireless network interface accessories
• External USB Hard Disk – USB 2.0 RAID 1 – Mirrors the contents of one hard disk onto another – Effective size: 1TB

Console

• Probe and gel holder
• Hand rest and handles
• Four swivel wheels – front wheel brakes
• Real wheels direction lock

Inputs and Outputs

• DVI/VGA video output
• Audio out
• Four USB-2 connectors – Two at the rear and two at the front to support video printers, MOD, flash memory cards/li>
• Lan Ethernet

Connectivity

• DICOM 3.0: Yes
• DICOM SR_Cardiac: Yes
• DICOM SR_Vascular: Yes
• DICOM SR_OB/GYN: Yes
• JPEG, WMV, & AVI: Yes
• USB: Yes
• HDD/SDD: 80GB
• DVD/CD RW: Yes
• Wireless LAN: Yes
