BPR SWISS SMART PORT PORTABLE DENTAL UNIT

The lightness of being - Portable dental care unit for maximum efficiency

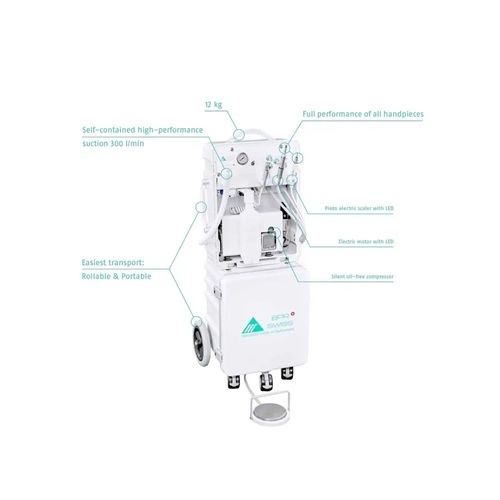

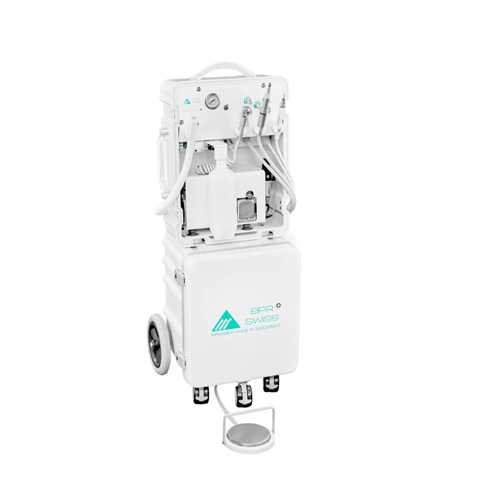

The smartly designed SMART-PORT is the portable dental care unit par excellence. It integrates the most important functions of a dental unit in a single 12-kilogram lightweight case. Unmatched worldwide with full performance of handpieces and suction. Anytime. Everywhere.

The SMART-PORT works self-sufficiently, thanks to its integrated quiet, oil-free compressor and suction. To start the unit up, simply connect it to the power supply and the portable dentist unit is immediately operational. Through the use of various contra-angles, speeds of between 0-200,000 rpm can be achieved, allowing for the optimal adaptation to various treatment scenarios. Both the handpieces and the suction (300 l/min!) deliver unique worldwide, full power continuously.

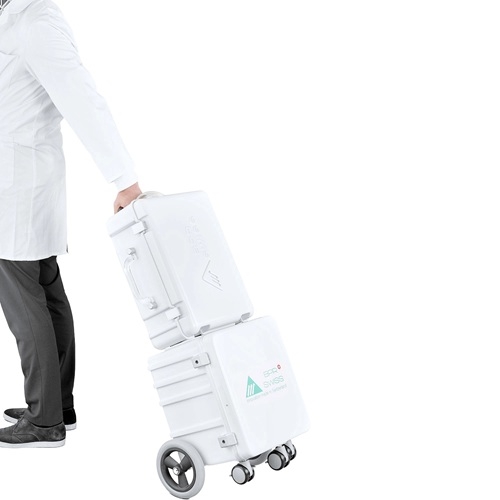

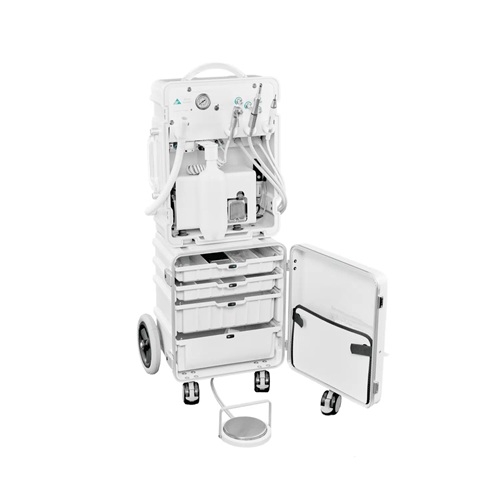

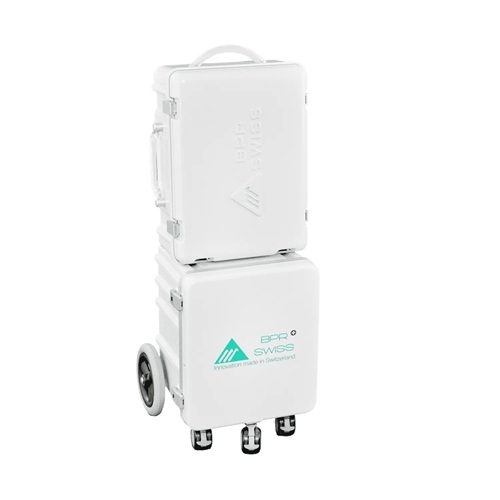

The SMART-PORT stands for, firstly, easiest transport; secondly, carefree setup and dismantling; and thirdly, full treatment performance in continuous operation. Rolling on the Denta-Trolley, which also transports consumables and instruments, the 12 kg portable dental care unit is transported to the treatment site. Thanks to the smart design and hygiene concept, assembly and disassembly are carefree, with optimum hygiene and efficiency.

Upon arriving at the treatment site, this unique portable dental care unit, because of its unmatched performance and features, covers the same range of treatment scenarios as traditional stationary treatment units. As a result, the SMART-PORT enables a comparable highest treatment quality as in a dental clinic during treatment at the patient's site.

Technical Data

• Handpiece pressure: 3.0-4.0 bar
• Each instrument is individually adjustable
• Weight SMART-PORT: 12.0 kg
• Weight DENTA-TROLLEY: 8 kg (for consumables/instruments)
• Dimensions: 380 x 205 x 530 mm

Warranty: 2 years

Options: Contra-angles, Vacu-Bags, air polisher module, additional electrical motor, DENTA-CASE etc.

Features

• 1 Three-way syringe (air/water/spray) with sterilisable tips (hose and tips detachable)
• 1 Electric micromotor with LED light (0-40,000)
• 1 Electric scaler with LED light
• Instrument hoses detachable
• Spray adjustment regulators for each instrument
• Integrated spray water system for syringe and instruments (check valve prevents the back flow of water)
• 1 Spray water tank: 0.75 litre
• 1 High-performance suction hose 300 l/min. Continuously adjustable. With the patent-pending BPR Swiss technology. Adapter for saliva ejector tips and oral-dry-cup
• 1 Suction fluid container: 1 litre (automatic overflow protection)
• Pressure regulator-filter
• Sturdy, air- and water-tight plastic construction, will not scratch, dent or corrode
• Detachable front cover
• Disc type foot control
• Integrated silent compressor – oil-free: Max. Pressure: 4 bar;
• Accessories: Including DENTA-TROLLEY with drawers for instruments and consumables
