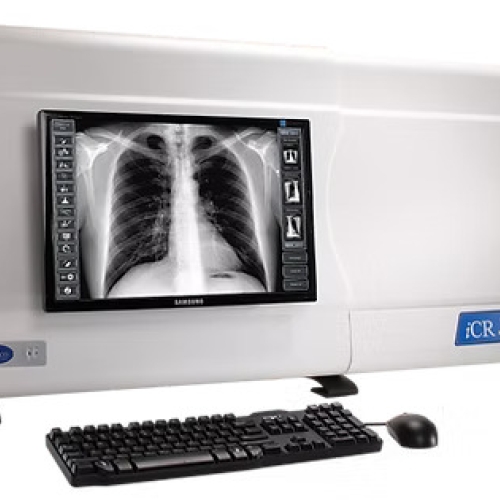

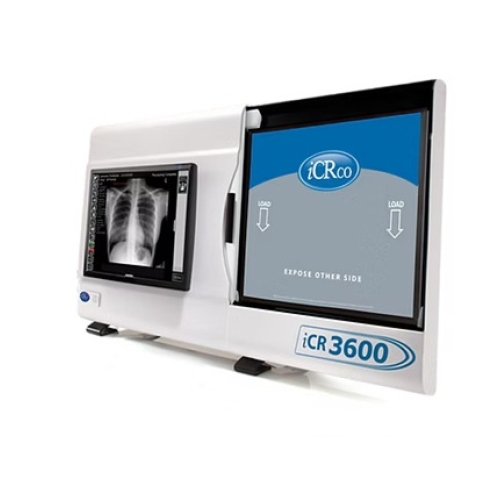

NEW ICRCO ICR 3600 CR SYSTEM
The iCR3600™ a rugged, dependable, single-plate scanner is known for it's image quality and reliability. iCR3600 has earned global acclaim from clinics, hospitals, emergency response services, the military, mobile facilities, and non-destructive testing.
Physicians can achieve amazing workflow at a much lower cost with its integrated pairing with the robust and feature-rich image processing XC™ software. XC provides superior quality images every time with an option to further manipulate the images.
XC™ Acquisition Software Features :
- XC - Intuitive touchscreen acquisition
- ICE-3 Processing - Automated image characteristics analysis for maximum image enhancement
- Image Display State: Automated enhancement of image display at the point of acquisition
- Smart search, sort, and filter options
- Integration with front office management systems like RIS and EMR
- Full set of annotation and measurement tools
- User-preferred settings and privileges
iCRco iCR 3600 CR SPECIFICATIONS:
Grayscale resolution 16 bits/pixel source file, 65536 shades of gray
Image access time 35 seconds (average mixed plates)
Plate throughput 94 plates per hour mixed cassette sizes
Cassette sizes 14” x 17” (35 x 43 cm), 14” x 14” (35 x 35 cm),
10” x 12” (25 x 30 cm), 8” x 10” (20 x 25 cm)
Odd plates and flexible plates using glass cassette system are accepted
Weight 78 lbs (35 kg)

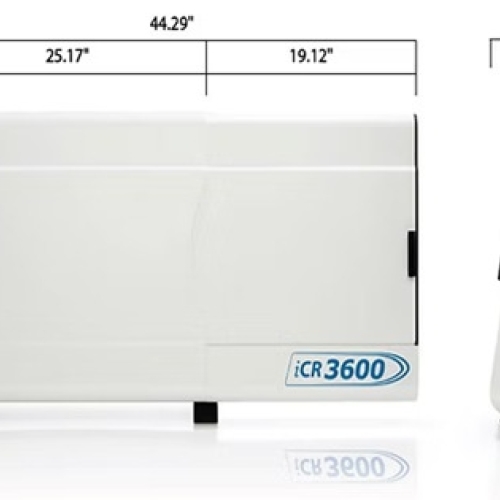

Dimensions W44” x D12” x H23” (W112 x D31 x H59 cm), Wall mountable
Power source 100-240V AC/ 2.5A max; 47-63Hz (Universal power supply)
Heat generation Typical 125W, maximum 330W
Operating conditions Temperature; 0-40°C/32-105°F, Temperature change: 0.5°C/min,
Humidity: 15%-95% RH, Magnetic fields: max 1260 μT
(in conformance with EN 61000-4-8: level 3), 10 A/m)
New Icrco Icr 3600 Cr System
- Product Code: IC678851
NEW ICRCO ICR 3600 CR SYSTEM
The iCR3600™ a rugged, dependable, single-plate scanner is known for it's image quality and reliability. iCR3600 has earned global acclaim from clinics, hospitals, emergency response services, the military, mobile facilities, and non-destructive testing.
Physicians can achieve amazing workflow at a much lower cost with its integrated pairing with the robust and feature-rich image processing XC™ software. XC provides superior quality images every time with an option to further manipulate the images.
XC™ Acquisition Software Features :
- XC - Intuitive touchscreen acquisition
- ICE-3 Processing - Automated image characteristics analysis for maximum image enhancement
- Image Display State: Automated enhancement of image display at the point of acquisition
- Smart search, sort, and filter options
- Integration with front office management systems like RIS and EMR
- Full set of annotation and measurement tools
- User-preferred settings and privileges
iCRco iCR 3600 CR SPECIFICATIONS:
Grayscale resolution 16 bits/pixel source file, 65536 shades of gray
Image access time 35 seconds (average mixed plates)
Plate throughput 94 plates per hour mixed cassette sizes
Cassette sizes 14” x 17” (35 x 43 cm), 14” x 14” (35 x 35 cm),
10” x 12” (25 x 30 cm), 8” x 10” (20 x 25 cm)
Odd plates and flexible plates using glass cassette system are accepted
Weight 78 lbs (35 kg)
Dimensions W44” x D12” x H23” (W112 x D31 x H59 cm), Wall mountable
Power source 100-240V AC/ 2.5A max; 47-63Hz (Universal power supply)
Heat generation Typical 125W, maximum 330W
Operating conditions Temperature; 0-40°C/32-105°F, Temperature change: 0.5°C/min,
Humidity: 15%-95% RH, Magnetic fields: max 1260 μT
(in conformance with EN 61000-4-8: level 3), 10 A/m)
- Brand: iCRco
- Availability: In Stock
