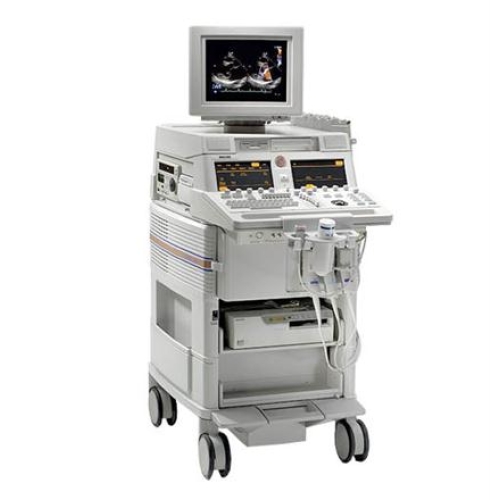

PHILIPS HP SONOS 5500 ULTRASOUND

Philips HP Sonos 5500 Features

The Philips HP Sonos 5500 is an ultrasound that can be used for advanced diagnostics. The HP Sonos 5500 ultrasound uses Color Doppler with PW and CW Doppler to create clear images. The system also offers fusion harmonic imaging, contrast imaging, and high-definition color flow. Producing 2D and 3D imagery for applications such as; cardiac, abdominal, vascular, small parts, EMED, great exams, and anesthesia. The ultrasound system is comparable with ten different transducers/probes.

• Imaging: B-Mode, M-Mode, Color Doppler, Colorization, Spectral steered PW/CW Doppler
• 13.5″ CRT color monitor
• ECG/M-mode including 3 lead ECG cable
• CINE loop
• Acoustic Zoom
• Trapezoidal imaging
• Stress echo
• Lateral Gain Control
• Three electronic switching probe parts
• Integrated SVHS recorder
• Soft echo enhancement
• Fusion Harmonics Imaging
• Cardiac and Vascular calls/reports software
• High Frame Rate Scanning (Up to 300 Hz)
• Lateral Gain Control, Continuous Loop Review
• Intelligent Acoustic Quantification
• Dynamic Elevating Beam Former
• Curved Linear support for abdominal studies
• Tissue Doppler, Color Kinesis

Philips HP Sonos 5500 Specifications

Dimensions

• Height: 57 in
• Width: 24.5 in
• Depth 36 in
• Weight: 478 lbs

Probes / Transducers

• Blind CW probe (1.9 MHz)
• S4 Adult cardiac phased array probe (2 – 4 MHz)
• Adult cardiac phased array probe (1.8 – 3.6 MHz)
• C5-2 Abdominal/OB curved linear array probe with OB calls / reports software (2 – 6 MHz)
• Endovaginal curved linear array probe (3 – 7 MHz)
• E6-519 Omni-plane II TE phased array probe (4 – 6 MHz)
• Biplane Pediatric TE phased array probe (5 – 9 MHz)
• Pediatric pharmacy probe (3 – 11 MHz)
• Linear Array (7.5 / 5.5 MHz)
• 11-3L Wide band linear Array (3 – 11 MHz)
