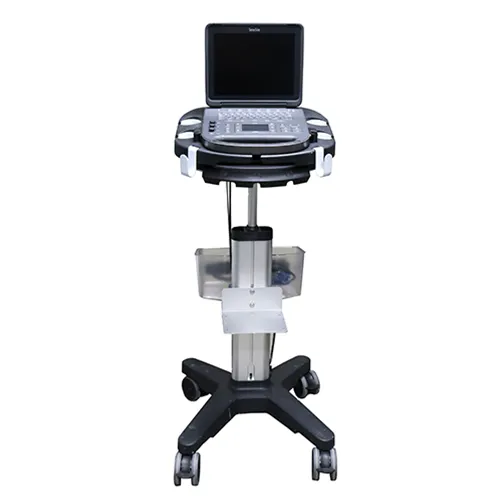

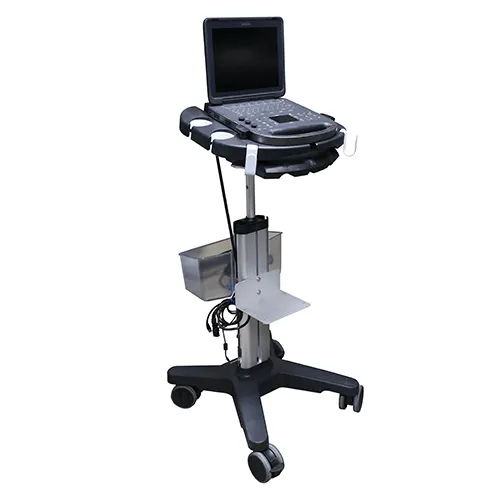

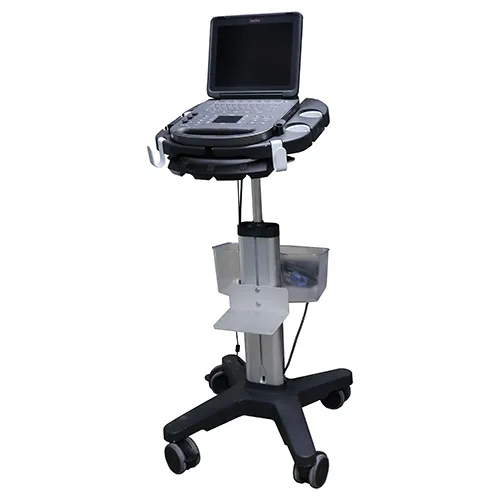

SONOSITE EDGE II PORTABLE ULTRASOUND

Sonosite Ultrasound Features

The SonoSite Edge II is a portable ultrasound known for its durability. The Sonosite Edge II can provide ultrasonic Imaging for Abdominal, Cardiovascular, Stress Echo, Transcranial, Musculoskeletal, Obstetric, Gynecology, Urology, and any basic Point-of-Care use. The Ultrasound system includes DirectClear technology that improves the penetration and contrast resolution. Unlike the system’s predecessor the Edge, the Edge II has a 12-inch LCD touchscreen display to make it easier to make adjustments to the imaging modes. The Ultrasound was built with the same architecture as the previous version, making it comparable with many of the same probes and transducers. The SonoSite Edge II’s imaging modes include; 2D, PW, CW, Color Velocity Doppler, Power Doppler, and Tissue Doppler. Another Ultrasound is the SonoSite Edge.

• Durable, Lightweight design
• 12-inch LCD touchscreen display
• Boot-up time is these than 25 seconds
• Battery life is up to 4 hours
• SonoADAPT Tissue Optimization
• SonoHD2 Imaging Technology
• Dual Imaging
• ColorHD technology
• DICOM image management

SonosSite Edge II Specifications

Dimensions

• Height: 2.5 in (6.4 cm)
• Length: 12.8 in (32.6 cm)
• Width: 12.1 in (30.7 cm)
• Weight: 9.21 lbs (4.18 kg) (with battery)

General Specifications

• Display: 12.1 in (30.7 cm) Diagonal LCD
• Architecture: All digital broadband
• Dynamic Range: Up to 165dB
• Gray Scale: 256 shades

Power Supply

• The system operates via battery or AC Power
• Rechargeable lithium battery
• AC: universal power adapter, 100-240 VAC, 50/60 Hz input, 15 VDC output
• Less than 25 sec. from power-on to scanning

Imaging Modes

• 2D / Tissue Harmonic Imaging / M-Mode
• Velocity Color Doppler / Color Power Doppler
• PW, PW Tissue Doppler, and CW
• Doppler angle, correct after freeze

Imaging Processing System

• SonoADAPT Tissue Optimization
• SonoHD2 Imaging Technology
• Dual Imaging, Duplex Imaging, 2x pan/zoom capability, Dynamic range and gain
• ColorHD Technology

Steep Needle Profiling

• C35x – Nerve, MSK, Spine
• HFL38xi – Nerve, MSK, Breast, Small Parts, Arterial, Venous
• HFL50x – Nerve, MSK, Breast, Small Parts
• L25x – Nerve, MSK, Arterial, Venous
• HSL25x – Nerve, MSK, Arterial, Venous
• L38xi – Nerve
• rC60xi – Nerve, MSK

User Interface & Remappable Controls

• Softkeys to drive advanced features
• Programmable A and B keys: each can be assigned by the user for increased ease of use
• Low profile keyboard, sealed completely to the edge for maximum infection control
• Softkeys to drive advanced features
• Programmable A and B keys: each can be assigned by the user for increased ease of use
• Low profile keyboard, sealed completely to the edge for maximum infection control
• Trackpad with a select key for easy operation and navigation
• Doppler controls: angle, steer, scale, baseline, gain, and volume
• Image acquisition keys: review, report, clip store, save
• Dedicated AutoGain and exam keys to allow quick activation
• Color controls: size/position, angle, scale

Transducers Broadband/Multifrequency

• DirectClear Technology (rC60xi, rP19x)
• Armored Cable Technology (Optional on rC60xi, rP19x, L38xi, L52x)
• Linear Array, Curved Array, Phased Array, Multiplane TEE, and Micro-Convex
• Centerline marker for linear transducers

Transducer Exam Types

• abdominal, breast, cardiology, GYN, lung, musculoskeletal, neonatal, nerve, ob, ophthalmic, orbital, small parts, spine, superficial, TCD, arterial, venous

Durability

• Drop-tested at 3 feet/91.4 cm
