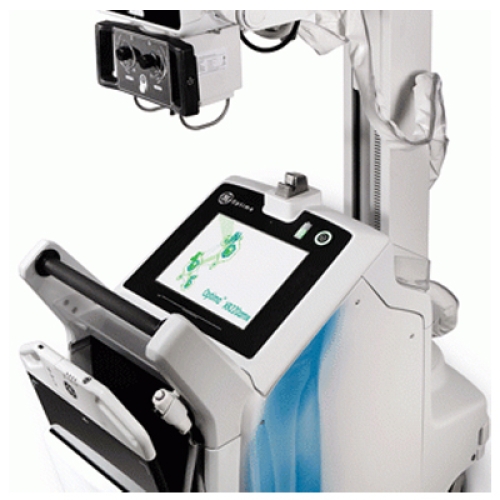

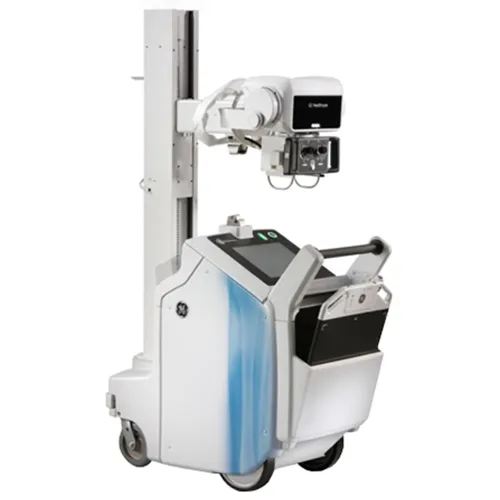

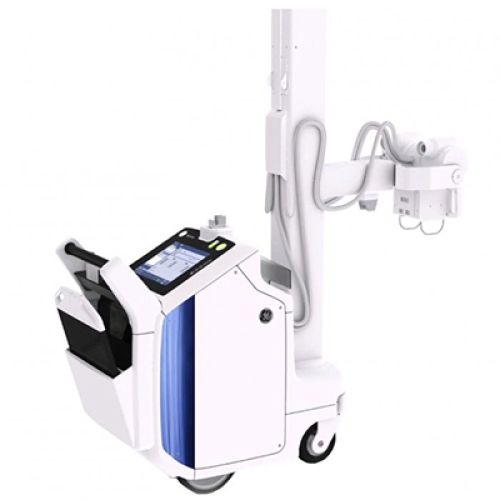

GE OPTIMA XR220AMX PORTABLE X-RAY MACHINE

GE Optima XR220amx Features

• FlashPad Lightweight detector designed for mobile use weighs less than 4.5 kg (10 lbs.) including battery
• “Stand-by” mode eliminates boot-up cycles and allows exposure within 25 seconds
• Designed for 24/7 availability. Use with battery or make and process exposures while the unit is charging
• The detector can support up to 160 Kg (352 lbs.) of distributed load for bariatric applications
• The detector battery charges automatically while the detector is in the bin
• Automatic charging algorithms allow the system to be re-charged even if batteries are not fully drained
• 15kW (nominal) generator and available 30kW(nominal) option

GE Optima XR220amx Specifications

Wireless Digital Detector

• Detector battery can take up to 50 exposures per hour and provide enough power for 3 hours of use on a single charge
• Single panel (non-tiled) amorphous silicon detector with a Cesium Iodide scintillator
• Image area: 40.4 cm x 40.4 cm (15.9 in x15.9 in)
• Active matrix: 2024 x 2024 pixels
• Pixel Pitch: 200 microns
• Typical upper dynamic range: 7.8mR
• Typical DQE: @ 0lp/mm: 68%)
• Two handgrips

Detector Environmental Conditions

Temperature

• Operating: 15°C to 35°C
• Non-Operating: -0°C to 50°C (maximum change 20°C per hour)

Humidity

• Operating: 10% to 80% RH, noncondensing(max. change 30% per hour)
• Non-Operating: 10% to 95% RH, noncondensing (max. change 30% per hour)

Power

• Capable of 100-240 V nominal, 50/60 Hz operation
• System battery status display

X-Ray Source

• Nominal Tube Voltage (Radiographic) 40 ~ 150 kV
• Nominal Focal Spot size (IEC 60336):
  • Large Focus: 1.2 mm
  • Small Focus: 0.6 mm
• Anode Rotation Speed (minimal): 3200 min-1
• Permanent Filtration: 0.9 mm Al/75 kV IEC60522: 1999
• Maximum X-ray Tube Current
  • Large Focus: 500 mA
  • Small Focus: 200 mA
• Maximum Continuous Heat Dissipation: Without Air-circulator: 170 W (238 HU/s)
• Maximum anode heat units: 140 kHU
• Exposure time: 4.0 msec – 6.0 sec
