MINDRAY PM-9000 EXPRESS

Mindray PM-9000 Express Features

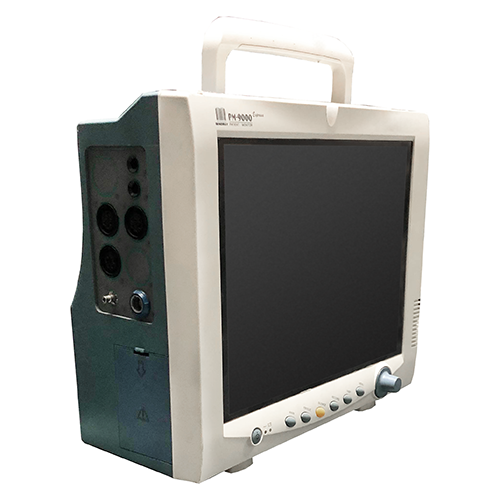

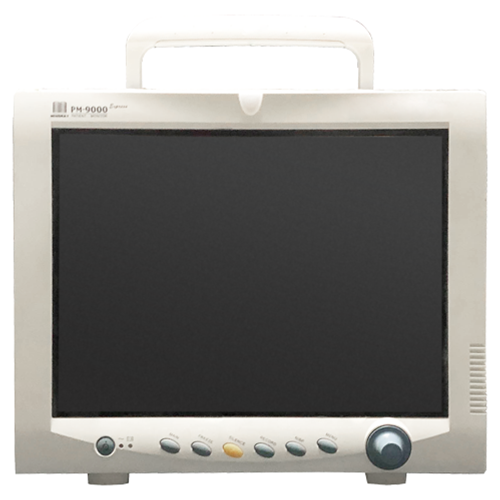

The Mindray PM9000 Express is a patient monitor that can fit any need. The PM-9000 Express provides ECG, Respiration Rate, NIBP, SpO2, dual temperature, IBP, EtCo2, and Multiple gas analysis for all patients, from Neonatal to adults. With quick action buttons on the front of the patient monitor, it is easy to adjust the parameters. The Mindray PM9000 is a durable, lightweight monitor that can go from bedside to transport monitor in minutes. The Mindray patient monitor can display up to 8 waveforms at once and can hold up to 96 hours of trending data.

• 12-inch Display that can show up to 8 waveforms at once
• 96 hours of trending data
• NIBP listing can include up to 800 measurements

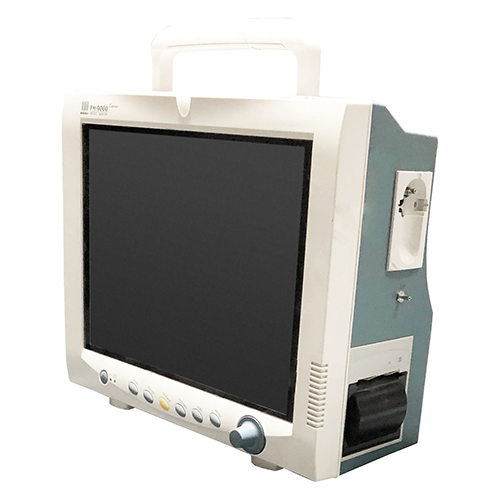

• Built-in, 3-trace recorder for printing real-time and historical data
• Lithium-ion battery with 5 hours of continuous work

Mindray PM-9000 Express Specifications

Dimensions

• Height: 10.6” (27 cm)
• Width: 12.5” (31.8 cm)
• Depth: 5.4” (13.7 cm)
• Weight: 16.5 lb (=7.5 kg)

Display

• Type: Color TFT LCD
• Size: 12.1 inches (diagonal)
• Resolution: 800×600 pixels

Recorder

• Type: Thermal dot array
• Horizontal resolution: 160 dots/cm (at 25 mm/s recording rate)
• Vertical resolution: 80 dots/cm
• Width of the recorder paper: 50 mm
• Length of the recorder paper: 30 m
• Recording rate: 25 mm/s, 50 mm/s
• Recorded waveforms: 2

Data Storage

• Trend data: Long trend: 96 hours, resolution 1min, 5 min or 10 min.; Short trend: 1 hour, resolution 1 s or 5 s.
• Alarm events: 70 alarm events and associated waveforms (with user-selectable waveform lengths 8s, 16, or 32).
• ARR events: 80 ARR events and associated waveforms with 8s wavelength.
• NIBP measurements: 800 NIBP groups, including systolic pressures, mean pressures, diastolic pressures, and measurement time.

ECG

• Lead Type: 3, 5, or 12-Lead
• Measurement range: Neonate: 15 to 350 BPM; Pediatric: 15 to 350 BPM; Adult: 15 to 300 BPM
• Sensitivity selection: 1.25mm/mV (×0.125), 2.5mm/mV (×0.25), 5mm/mV (×0.5), 10mm/mV (×1), 20mm/mV (×2) and auto
• Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
• Heart Rate Resolution: 1 BPM
• Heart Rate Accuracy: ±1BPM or ±1%, whichever is greater
• Sensitivity: 200µV (lead II)
• Arrhythmia Analysis: ASYSTOLE, VFIB/VTAC, PVC, COUPLET, VT>2, BIGEMINY, TRIGEMINY, R ON T, MISSED BEATS, TACHY, BRADY, PNC and PNP

RESP

• Measurement Technique: Thoracic impedance
• Lead: Optional: lead I and lead II; default lead II
• RR Measurement range: Adult: 0 to 120 BrPM; Pediatric/neonate: 0 to 150 BrPM
• RR Resolution: 1 BrPM
• RR Accuracy: 7 to 150 BrPM: ±2 BrPM or ±2%, whichever is greater

SpO2

• Compatible Modules: Mindray/Masimo/Nellcor

IBP

• Measurement Technique: Auto oscillation
• Displayed Parameters: Systolic pressure, diastolic pressure, and mean pressure
• Mode of operation: Manual, auto, and continuous
• Measurement interval in auto mode: 1/2/3/4/5/10/15/30/60/90/120/180/240/480 minutes
• Measurement time in continuous mode: 5 minutes

TEMP

• Number of channels: 2
• Displayed parameters: T1, T2 and TD
• Measurement range: 32 to 122°F (0 to 50°C)
• Resolution: 0.1°C
• Precision: 0.1°C (excluding the sensor): ±0.2°C (including the YSI 400 series sensor)
• Update period: 1s

CO

• Measurement Technique: Thermal dilution
• Calculated Parameter: CO, hemodynamics
• Measurement Range: CO: 0.1 to 20l/min; TB: 23 to 43°C; TI: 0 to 27°C
• Resolution: CO: 0.1 l /min; TB, TI: 0.1°C

CO2

• Measurement technique: Infrared absorption technique
• Measurement mode: Sidestream, micro stream, or mainstream (optional)
• Displayed parameter: EtCO2, FiCO2, Respiration Rate
• Compatible Modules: Mindary/Oridion/Welch Allyn
• CO2 measurement range: 0 to 99mmHg

AG

• Measurement technique: Infrared absorption
• Measurement mode: Side stream
• Gas Type: CO2, N2O, O2 (optional), Des, Iso, Enf, Sev, Hal
