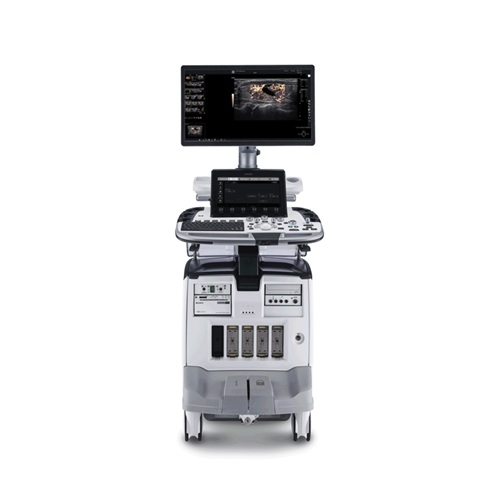

GE LOGIQ E10 ULTRASOUND

GE Logiq E10 Features

The GE Logiq E10 is a state-of-the-art ultrasound imaging system that provides exceptional diagnostic accuracy across various clinical applications. Its advanced cSound architecture ensures precise and consistent imaging, while its innovative design enhances healthcare professionals’ workflow efficiency. Ideal for abdominal, vascular, obstetric, gynecologic, pediatric, and cardiac imaging, the Logiq E10 delivers reliable performance and unparalleled image quality.

• cSound Imaging Technology: Offers real-time data processing with 11,750,000 channels for superior image clarity.
• 22-Inch OLED Display: High-resolution monitor with anti-glare and wide viewing angles for optimal visualization.
• Wide Clinical Application: Supports abdominal, OB/GYN, vascular, small parts, and pediatric imaging.
• Advanced 4D Imaging: Real-time 4D volume imaging for enhanced diagnostic capabilities.
• Speckle Reduction Imaging (SRI-HD): Improves image quality by reducing noise for better lesion detection.
• Auto Optimization: Automatically adjusts imaging parameters for consistent and optimized results.
• Integrated Connectivity: Features HDMI, USB, and Ethernet ports for seamless data sharing and storage.

GE Logiq E10 Specifications

Dimensions

• Height: 51 in (1300 mm)
• Width: 23 in (585 mm)
• Depth: 35.5 in (900.9 mm)
• Weight: 278 lbs (126 kg).

Power AC

• Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Power Consumption: Maximum 0.9 KVA with peripherals.

Display

• Screen Size: 22 inches
• Resolution: 1920 × 1080 pixels
• Screen Type: OLED, anti-glare, wide viewing angles
• Touch Screen: 12.1-inch high-resolution interactive color touch display.

Imaging Capabilities

• Operating Modes: B-Mode, M-Mode, Color Flow Mode, B-Flow, Power Doppler Imaging, and more
• 4D Imaging: Real-time and static 3D/4D volume imaging
• Shear Wave Elastography: Quantitative tissue stiffness measurement
• Strain Elastography: For tissue deformation analysis
• Extended Field of View: LOGIQView for wide imaging coverage.

System Features

• Probe Ports: 4 active probe ports, 2 inactive storage ports
• Data Storage: 1 TB HDD, 128 GB SSD, and integrated DVD-R Multi Drive
• Connectivity: HDMI, USB 3.0, Ethernet, DICOM support, and wireless LAN (optional)
• Audio: Integrated speakers with sub-woofer for premium sound.
