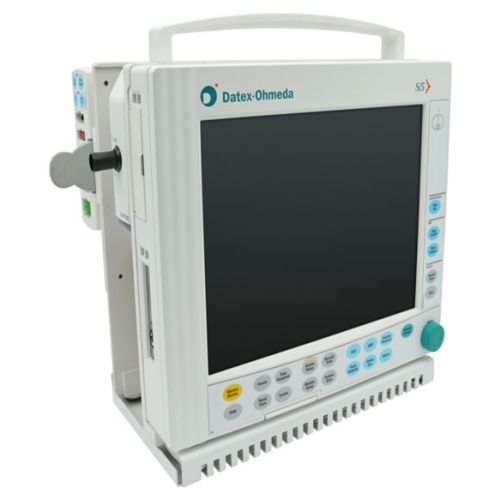

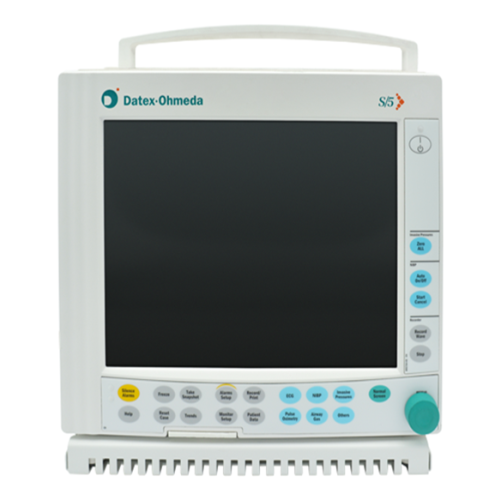

GE DATEX OHMEDA S/5 ANESTHESIA MONITOR
GE Datex Ohmeda S/5 Anesthesia Monitor Features
The Datex-Ohmeda S/5 Monitor is a multi-parameter monitor. Offering a full range of monitoring parameters including ECG, SPo2, NIBP Temperature CO2, and 5 agent gas analysis. The S/5 Monitor is all you need for effortless patient monitoring in the OR and beyond- a full range of monitoring parameters, and intuitive use, The Ohmeda S5 can support multiple screens along with a dedicated alarm system and advanced reporting options. The workstation is configurable, with transparent device integration, and data transfer. The monitor has an open architecture which means it can be used with any anesthesia delivery machine.
- Central units and displays are physically separate components
- 4 display options with integrated monitor controls: 15” or 17” high-resolution color video display at 10.4” or 15” flat panel color LCD display
- User-configurable display layout and colors
- Support for up to 8 Waveforms on screen
- Support for user-configurable second and third screens with different waveforms and numerical information
- Anesthesia-dedicated Alarm System
- Alarms display and adjustment page
- 10-minute graphical mini trends referenced to set alarm limits
- Automatic alarm limits functions
- 6 user-configurable modes and a special Cardiac Bypass Mode
- 24-hour Numerical and Graphical trends
- Split screen capability to show ST, Spirometry Loop, EEG, EP, or MiniTrends permanently
- 4 user-configurable Graphical and Numerical trends
GE Datex Ohmeda S/5 Anesthesia Monitor Specifications
General
- ECG, NIBP, SpO2, Temp, 2-IBP, Rec, CO2, and 5 Agent. Color Screen
Dimensions
- Height: 13.4 inches (340 mm)
- Width: 13.2 inches (335 mm)
- Depth: 8.1 inches (205 mm)
- Weight (without modules): 24.2 lb (11 kg)
Power
- Rated voltage range and frequencies: 100 to 240v ±10%, 50/60 Hz
- Maximum power consumption: 140 VA
- Protection class: Class I
- Grounding: Hospital grade
Display
- Display size: 12.1 in diagonal
- Display Type: Active matrix color TFT LCD
- Display resolution: SVGA resolution, 800 x 600
- Number of traces: up to 8
- Display layout and colors: User-configurable. Integrated Command Board with direct function keys, menu keys, and ComWheel° for selections and adjustments in menus
Battery
- Type: Built-in NiMH battery (2 pcs)
- Capacity: Up to 1.5 h typical on a full charge at 23°C
- Recharging: When connected to mains power
- Charging time: 10 hours to full capacity
- Battery operation alarm
- Indicator: Battery bar displayed on the screen
Trends
- Graphical: All parameters, selectable times between 30 min to 72 h
- Numerical: Continuously measured parameters sampled every 5 minutes, NIBP and PCWP values updated after each measurement. Also, the marker triggers numerical trend updating
- Trend cursor: In both graphical and numerical trends
Ge Datex Ohmeda S/5 Anesthesia Monitor
- Product Code: GE678855
GE DATEX OHMEDA S/5 ANESTHESIA MONITOR
GE Datex Ohmeda S/5 Anesthesia Monitor Features
The Datex-Ohmeda S/5 Monitor is a multi-parameter monitor. Offering a full range of monitoring parameters including ECG, SPo2, NIBP Temperature CO2, and 5 agent gas analysis. The S/5 Monitor is all you need for effortless patient monitoring in the OR and beyond- a full range of monitoring parameters, and intuitive use, The Ohmeda S5 can support multiple screens along with a dedicated alarm system and advanced reporting options. The workstation is configurable, with transparent device integration, and data transfer. The monitor has an open architecture which means it can be used with any anesthesia delivery machine.
- Central units and displays are physically separate components
- 4 display options with integrated monitor controls: 15” or 17” high-resolution color video display at 10.4” or 15” flat panel color LCD display
- User-configurable display layout and colors
- Support for up to 8 Waveforms on screen
- Support for user-configurable second and third screens with different waveforms and numerical information
- Anesthesia-dedicated Alarm System
- Alarms display and adjustment page
- 10-minute graphical mini trends referenced to set alarm limits
- Automatic alarm limits functions
- 6 user-configurable modes and a special Cardiac Bypass Mode
- 24-hour Numerical and Graphical trends
- Split screen capability to show ST, Spirometry Loop, EEG, EP, or MiniTrends permanently
- 4 user-configurable Graphical and Numerical trends
GE Datex Ohmeda S/5 Anesthesia Monitor Specifications
General
- ECG, NIBP, SpO2, Temp, 2-IBP, Rec, CO2, and 5 Agent. Color Screen
Dimensions
- Height: 13.4 inches (340 mm)
- Width: 13.2 inches (335 mm)
- Depth: 8.1 inches (205 mm)
- Weight (without modules): 24.2 lb (11 kg)
Power
- Rated voltage range and frequencies: 100 to 240v ±10%, 50/60 Hz
- Maximum power consumption: 140 VA
- Protection class: Class I
- Grounding: Hospital grade
Display
- Display size: 12.1 in diagonal
- Display Type: Active matrix color TFT LCD
- Display resolution: SVGA resolution, 800 x 600
- Number of traces: up to 8
- Display layout and colors: User-configurable. Integrated Command Board with direct function keys, menu keys, and ComWheel° for selections and adjustments in menus
Battery
- Type: Built-in NiMH battery (2 pcs)
- Capacity: Up to 1.5 h typical on a full charge at 23°C
- Recharging: When connected to mains power
- Charging time: 10 hours to full capacity
- Battery operation alarm
- Indicator: Battery bar displayed on the screen
Trends
- Graphical: All parameters, selectable times between 30 min to 72 h
- Numerical: Continuously measured parameters sampled every 5 minutes, NIBP and PCWP values updated after each measurement. Also, the marker triggers numerical trend updating
- Trend cursor: In both graphical and numerical trends
- Brand: GE
- Availability: In Stock
USD 2,882.00
