he perfect combination of speed and accuracy for high productivity contour cutting

Summa invented contour cutting in 1993. Since then, the technology has literally transformed the industry and become the single most important feature in vinyl cutting.

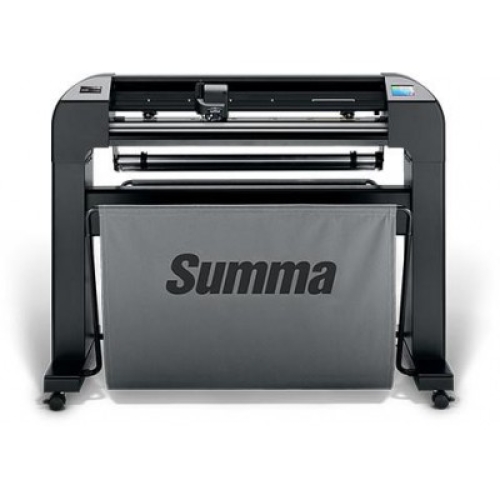

OPOS-CAM™ represents the fourth generation evolution of Summa's revolutionary OPOS contour cutting alignment system – a factory upgrade option now available on all new Summa S2 T75, S2 T140 and S2 T160 contour cutting plotters.

Precision-engineered to increase workflow efficiency when contour cutting printed graphics, signs, labels, vehicle wraps, decals and more, OPOS-CAM is the ideal choice for volume-driven environments that require ultra-fast yet meticulous automated cutting for short or long run jobs.

By combining advanced camera optics technology with Summa's highly intelligent CameraControl recognition software, OPOS-CAM scores lightning-fast marker-recognition speeds (10 times faster than competing systems) for a wide array of media, including laminate materials.

Coupled with Summa's state-of-the-art TrueTangential™ cutting head, all-powerful servomotors and exclusively patented MicroSprocket™ drive, Summa T Series operators experience unprecedented speed, confidence and accuracy - the kind of performance others can only dream about.

MODELSS2 TC75S2 TC140S2 TC160

CUT TYPETrue Tangential with OPOS-CAM and Drag Knife Cutting Mode Capability

CUT WIDTHS  S2 TC75 30-inch (76 cm)S2 TC140 53.1-inch (135 cm)S2 TC160 62.2-inch (158 cm), Extended Mode: width of the                                    material

CUT SPEEDAll S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal

AXIAL SPEEDUp to 4 G

MAXIMUM ACCELERATIONUp to 5.5 G diagonal

REPEATABILITYWithin ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long

TRACKING164 ft. (50 m) long

CUT FORCE0-600 grams of down-force, in 5 gram increments

DISPLAY LANGUAGEEnglish; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese

CONNECTIVITYUSB; Ethernet

POWER REQUIREMENTSAC 100V to 240V ±10% 48-62Hz, 85 VA maximum

WEIGHTS2 TC75 152 lbs (69 kg)S2 TC140 214 lbs (98 kg)S2 TC160 251 lbs (114 kg)

OPERATING TEMPERATURE59˚ to 95˚F (15˚ to 35˚C)

OPERATIONAL ACCESSORIES Motorized Take-Up Roller for Summa S2 140 and S2 160

                                                                Media Rack for Summa S Class S2 140 and S2 160

WARRANTY (USA)Three-year parts and labor limited warranty, toll-free technical support
