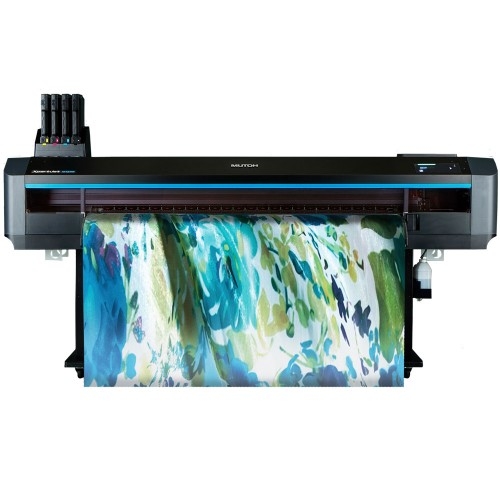

Mutoh XpertJet 1642WR Pro Sublimation Printer

SPECIFICATIONS

Model

1642WR

Print Method

On-demand piezo drive system

Head height

Four-level adjustment of 1.5mm, 2.0mm, 2.5mm, and 4.0mm

Number of heads

2 staggered

Max. roll width

1,625mm

Max. media thickness

0.4mm - 1.0mm

Media diameter

Φ200 mm or less

Core diameter

2 inches or 3 inches

Max. media weight

30kg or less

Max. printable width

1,615mm

Max. print length

1500m

Ink type

Dye-sublimation ink DS3

Colour

4-Color (Black, Cyan, Magenta, Yellow)

Ink volume

1000g

Print resolution

Maximum 1200dpi

Interface

Ethernet (10BASE-T / 1000BASE-TX)

Power supply

Voltage: AC 100V～120V ±10% / AC 200V～240V ±10%　Frequency: 50/60Hz ±1Hz　　

Operational environment

Temperature: 20℃～32℃ Humidity: 40%～60% No condensing

Accuracy guaranteed

Temperature: 22℃～30℃ Humidity: 40%～60% No condensing

Power consumption during operation

AC100V～120V, 1450W or below / AC200V～240V, 1470W or below

Power consumption sleep mode

AC100V～120V, 23W or below / AC200V～240V, 20W or below

External dimensions (W) x (D) x (H)

Main body:2770mmx895mmx1428mm(cover closed) /(when installing 2200ml ink bag cases:1712mm)

Weight

Main body: 137kg | Stand: 32kg
