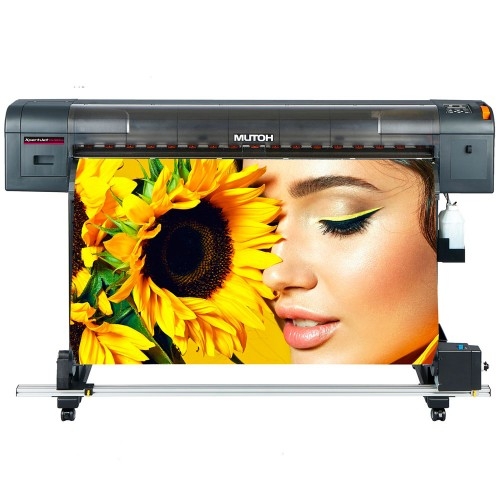

Mutoh XpertJet 1341SR Pro

Print methodOn-demand piezo drive system

Head heightThree-level adjustment of 1.5mm, 2.0mm, and 2.5mm

Number of heads1

Max. roll width1,371mm

Max. media thickness0.3mm(Low), 0.8mm(Middle), 1.3mm(High)

Media diameterΦ150 mm or less

Core diameter2 inches or 3 inches

Max. media weight19kg or less

Max. printable width1,361mm

Max. print length200m

Ink typeMS31

Colour4-Color (Black, Cyan, Magenta, Yellow)

Ink volume220ml/1000ml

Print resolutionMaximum 1200dpi

InterfaceEthernet (10BASE-T / 100BASE-TX)

Power supplyVoltage: AC 100V～120V ±10% / AC 200V～240V ±10%　Frequency: 50/60Hz ±1Hz　　

Operational environmentTemperature: 20℃～32℃ Humidity: 40%～60% No condensing

Accuracy guaranteedTemperature: 22℃～30℃ Humidity: 40%～60% No condensing

Power consumption during operationAC100V～120V/AC200V～240V: 1560W or less (with heater ON)

Power consumption sleep modeAC100V～120V/AC200V～240V: 21W or less

External dimensions (W) x (D) x (H)Printer mounted on stand:W1,916mm x D685mm x H1,218mm (when cover closed)

Weight86.0 kg (printer: 66.0kg Stand: 20.0kg)

RIP softwareVerteLith (MUTOH genuine RIP software)
