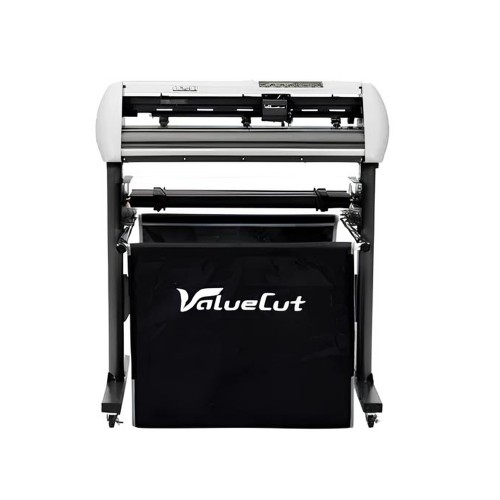

Mutoh ValueCut 2-600

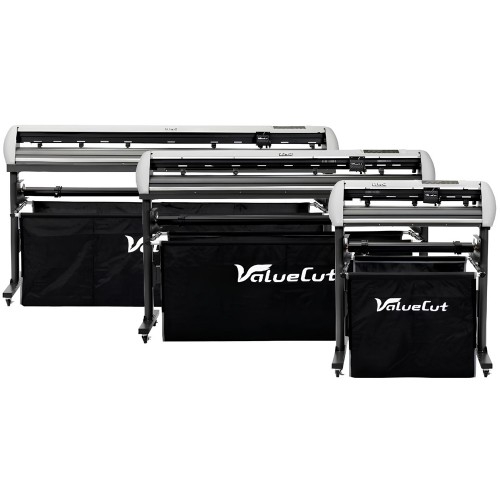

For producing signs, vinyl graphics, and stickers, MUTOH ValueCut 2 professional-grade vinyl cutters/vinyl plotters provide ease of use with superior cutting speed and cutting force.

SPECIFICATIONS

Model

VC2-600

Max. Media Width

770mm

Max. Cutting Width

610mm

Min. Media Width

50mm

Max. Cutting Length

50m

No. Pinch Rollers

3

Acceptable Media Thickness

0.8mm

Driver Motor

DC Servo Control

Cutting Force

5g - 600g

Max Cutting Speed

1530mm/s (45°)

Acceleration

4.2G

Offset

0-1.0mm

Memory Buffer

32MB/16MB (when using AASII)

Interface

USB, Serial, Ethernet

Command Type

HP-GL, HP-GL/2

Mechanical Resolution

0.006mm

Software Resolution

0.025mm 　　

Distance Accuracy

±0.254mm or ±0.1% of move, whichever is greater

Repeatability

±0.1mm

Control Panel

LCD

Diameter of Blade

2.5mm

No. of Attachable Pen

1

Available Tool

Cutter, Pen

Operational Temp.

15°C-30°C

Operational Humidity

25%-75%

Power Supply

AC100-240V, 50/60Hz (auto switching)

Power Consumption

Max. 110W

Dimensions (WxDxH)

950x486x412mm

Net Weight

18kg

Media Basket

Optional
