Original Vutek GS Jetpacks Print Head 45083572 45093679 45095093

Printer compatibility: VUTEk GS2000 / GS2000 Pro / GS2000LX / GS2000LX Pro / GS3200 / GS3200 Pro / GS3250 / GS3250 Pro / GS3250LX / GS3250LX Pro / GS3250r / GS5000r / QS2 Pro / QS3 Pro

DP part number : PPHVU12817

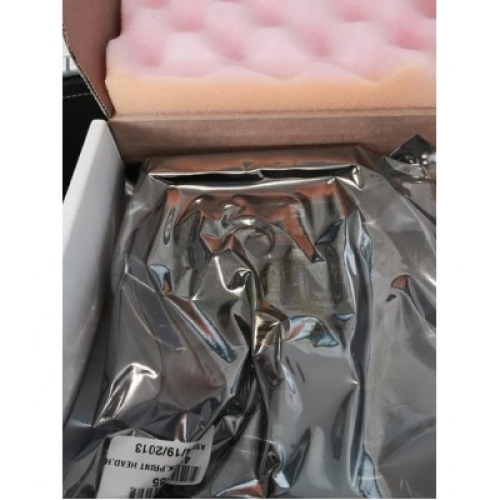

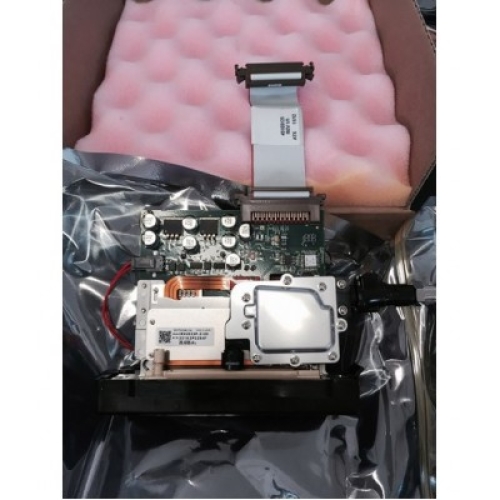

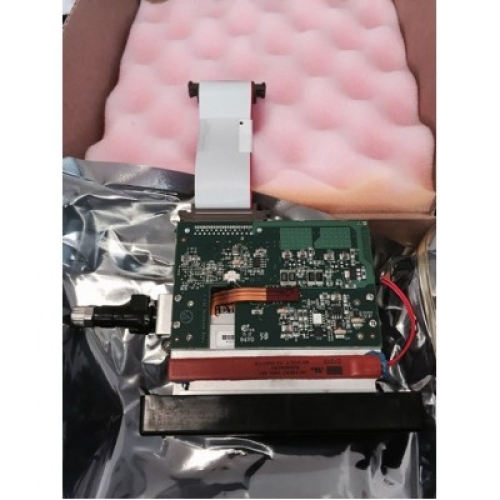

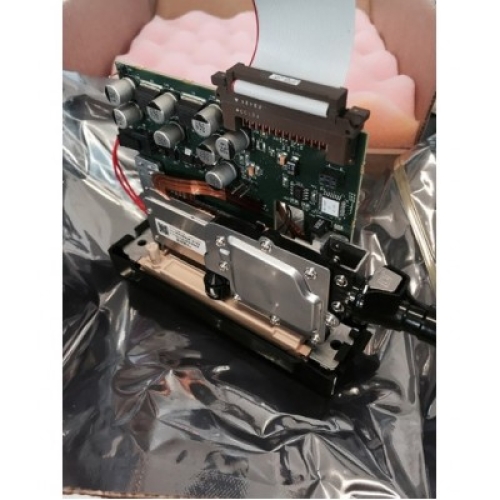

This ASM, Jetpack Print Head Grey Scale Platinum is suitable for VUTEk GS-series printers. This printhead includes the heating element and the smoothing electronic board. The jetpack also includes a set of two Jet Clamps (part number 45083572 / 45093679 / 45095093) and screws to install and aligne the printheads on the Vutek printer. This is the original VUTEk part (number replacing numbers 45083572 / 45093679 / 45095093 / 45093679). This is the latest upgraded head that comes with the connector.

Technical Specifications

- Drop size: 12pl

- Grey Scale levels: 7

- Nozzles: 508 nozzles

- Firing Frequency: 18 kHz

- Active Print Width: 72 mm

- Damper: integrated, quick dry break connector
