It’s rare for an engineer to start with a completely blank page to create a next-generation printer design that meets the complex and demanding needs of technical and production printing environments. Epson has done just that to develop a platform that could take your technical and graphics printing business to the next level. Introducing the SureColor® T7770D—a groundbreaking production printer that’s everything a large-format printer should be.
Engineered to deliver breakthrough performance, the 44-inch-wide SureColor T7770D features industry-leading 2.64" PrecisionCore® MicroTFP printhead technology, delivering fastest in class print speeds1. Plus it prints posters and POP displays at speeds over 300 sq2/hr2, A1/D-size prints in as little as 16 seconds2, and CAD and technical drawings at production-class speeds over 1,400 ft2/hr2. An innovative Adobe® Embedded Print engine with four onboard Intel Atom® CPUs quickly processes complicated PDF data and accurately reproduces transparent design layers at speeds up to three times faster than previous generations. Featuring an innovative, purpose-built, reliable design with complete front operation, this innovative printer seamlessly produces crisp, detailed prints from virtually anywhere in the workspace—even when pushed against the wall. From vivid posters to crisp CAD drawings, the SureColor T7770D prints with incredible precision and stunning color using vibrant UltraChrome® XD3 Ink with Red ink. And with its array of convenient, customizable features—such as simple automatic roll loading and versatile media handling, including a dual roll/take-up system—this workhorse printer will easily integrate into almost any production workflow to revolutionize business productivity.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel, drop-on-demand |
| Ink Type | UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) |
| Nozzle Configuration | 9,600 nozzles (1,600 x 6 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle |
| Maximum Resolution | 2400 x 1200 dpi |
| Real-Time Black Ink Selection | Dedicated Photo and Matte Black Ink channels selected automatically based on media type |
| Print Speed | CAD (B0 Size Plain Paper): Over 1400 sq ft/hr A1 / D Size (Plain Paper): 16 sec Poster (Glossy): Over 300 sq ft/hr |
| Printer Language/Drivers | Epson Professional Print Drivers (Included)ESC/P raster, HP-GL/2*, HP RTL*, Adobe PostScript 3, Adobe PDF 1.7 Adobe Embedded Print Engine (Included) |
| Memory (Built-In) | 4 GB |

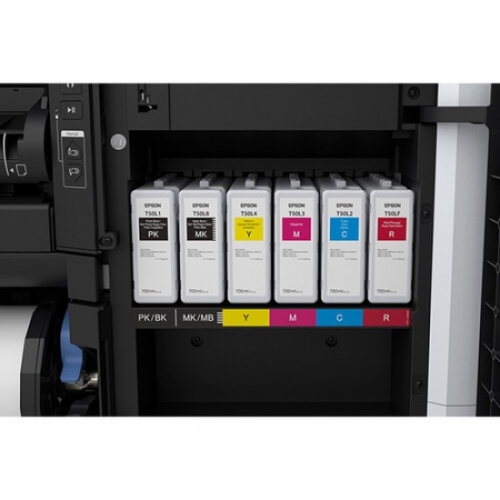

| In-Box Cartridge Fill Volume | Colors (C, M, Y, R) 240 mL each Black (MK, PK) 240 mL each |
| Retail Cartridge Fill Volume | Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL Black (MK, PK) 110 mL, 350 mL or 700 mL |

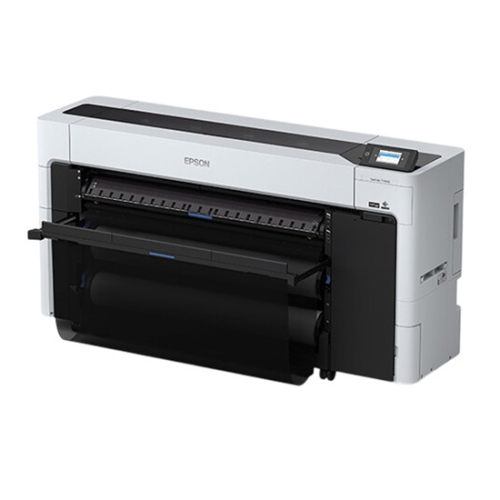

| Number of Input Rolls | 2 (Input Roll #1 can be used optionally as a take-up reel) |
| Take-Up Reel | Included |
| Take-Up Reel Configuration | Roll print-side in or print-side out (selectable) |
| Minimum Roll Width | Minimum 10" |
| Maximum Roll Width | Up to 44" |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual (replaceable) |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lbs |
| Roll Media Thickness | 0.07 mm to 0.8 mm |
| Roll Paper Remaining | Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel. |
| Single Sheet, Front or Rear Loading | Up to 44" wide |
| Minimum Sheet Width | 8" |
| Minimum Sheet Length | 8" |
| Sheet Media Max. Thickness | up to 1.5mm (Rigid Posterboard) |
| Line Accuracy | ±0.1% or ±0.26 mm (whichever is greater) |
| Margin | Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths |
| Top/Bottom | Roll Paper: Min. 3 mm top/ 3 mm bottom Cut Sheet: Min. 3 mm top and 12.7 mm bottom |
| BorderFree Sizes | 10", 13", 16", 17", 20", 24", 36", or 44" wide |
| Articulating LCD Display | 4.3" Touchscreen |
| USB Expansion Port | Optional RFID Card Reader |
| Printer Interfaces | SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE802.11b/ g/n/ac, USB memory stick*, 960 GB (SSD) Optional |
| Maximum Printable Length | 298 ft |
| Minimum Line Width | 0.08 mm |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/ 2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Temperature | Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C) |
| Relative Humidity | Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation) |
| Acoustic Noise Level | Operating: 49.6 dBA Sleep: 6.6 dBA |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL 62368-1). Compliant with FCC Class B Requirements. |
| Power Consumption | Printing: Approx. 70 W Ready: Approx. 32 W Sleep: 2 W Power Off (Stand By): 0.3 W |
| Electrical Requirements | Voltage: AC 110–240 V Frequency: 50–60 Hz Current: 3.4 A |
| Dimensions (W x D x H) | 73" X 20" X 39" (Storage and Operating) |
| Dimensions (W x D x H) | 73" X 32" X 39" (Paper Basket Extended) |

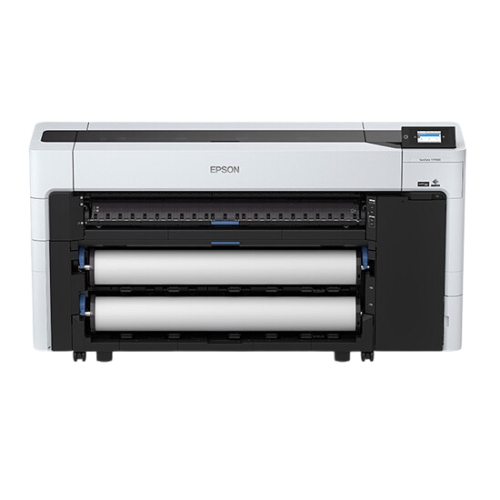

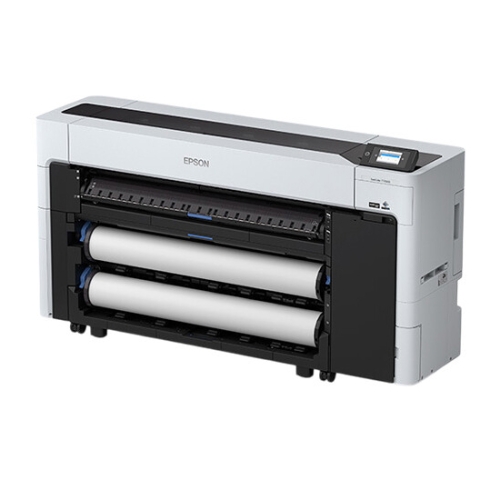

Epson SureColor T7770D 44" Large-Format Dual-Roll CAD/Technical Printer
- Product Code: EP54442
It’s rare for an engineer to start with a completely blank page to create a next-generation printer design that meets the complex and demanding needs of technical and production printing environments. Epson has done just that to develop a platform that could take your technical and graphics printing business to the next level. Introducing the SureColor® T7770D—a groundbreaking production printer that’s everything a large-format printer should be.
Engineered to deliver breakthrough performance, the 44-inch-wide SureColor T7770D features industry-leading 2.64" PrecisionCore® MicroTFP printhead technology, delivering fastest in class print speeds1. Plus it prints posters and POP displays at speeds over 300 sq2/hr2, A1/D-size prints in as little as 16 seconds2, and CAD and technical drawings at production-class speeds over 1,400 ft2/hr2. An innovative Adobe® Embedded Print engine with four onboard Intel Atom® CPUs quickly processes complicated PDF data and accurately reproduces transparent design layers at speeds up to three times faster than previous generations. Featuring an innovative, purpose-built, reliable design with complete front operation, this innovative printer seamlessly produces crisp, detailed prints from virtually anywhere in the workspace—even when pushed against the wall. From vivid posters to crisp CAD drawings, the SureColor T7770D prints with incredible precision and stunning color using vibrant UltraChrome® XD3 Ink with Red ink. And with its array of convenient, customizable features—such as simple automatic roll loading and versatile media handling, including a dual roll/take-up system—this workhorse printer will easily integrate into almost any production workflow to revolutionize business productivity.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel, drop-on-demand |
| Ink Type | UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) |
| Nozzle Configuration | 9,600 nozzles (1,600 x 6 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle |
| Maximum Resolution | 2400 x 1200 dpi |
| Real-Time Black Ink Selection | Dedicated Photo and Matte Black Ink channels selected automatically based on media type |
| Print Speed | CAD (B0 Size Plain Paper): Over 1400 sq ft/hr A1 / D Size (Plain Paper): 16 sec Poster (Glossy): Over 300 sq ft/hr |
| Printer Language/Drivers | Epson Professional Print Drivers (Included)ESC/P raster, HP-GL/2*, HP RTL*, Adobe PostScript 3, Adobe PDF 1.7 Adobe Embedded Print Engine (Included) |
| Memory (Built-In) | 4 GB |
| In-Box Cartridge Fill Volume | Colors (C, M, Y, R) 240 mL each Black (MK, PK) 240 mL each |
| Retail Cartridge Fill Volume | Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL Black (MK, PK) 110 mL, 350 mL or 700 mL |
| Number of Input Rolls | 2 (Input Roll #1 can be used optionally as a take-up reel) |
| Take-Up Reel | Included |
| Take-Up Reel Configuration | Roll print-side in or print-side out (selectable) |
| Minimum Roll Width | Minimum 10" |
| Maximum Roll Width | Up to 44" |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual (replaceable) |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lbs |
| Roll Media Thickness | 0.07 mm to 0.8 mm |
| Roll Paper Remaining | Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel. |
| Single Sheet, Front or Rear Loading | Up to 44" wide |
| Minimum Sheet Width | 8" |
| Minimum Sheet Length | 8" |
| Sheet Media Max. Thickness | up to 1.5mm (Rigid Posterboard) |
| Line Accuracy | ±0.1% or ±0.26 mm (whichever is greater) |
| Margin | Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths |
| Top/Bottom | Roll Paper: Min. 3 mm top/ 3 mm bottom Cut Sheet: Min. 3 mm top and 12.7 mm bottom |
| BorderFree Sizes | 10", 13", 16", 17", 20", 24", 36", or 44" wide |
| Articulating LCD Display | 4.3" Touchscreen |
| USB Expansion Port | Optional RFID Card Reader |
| Printer Interfaces | SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE802.11b/ g/n/ac, USB memory stick*, 960 GB (SSD) Optional |
| Maximum Printable Length | 298 ft |
| Minimum Line Width | 0.08 mm |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/ 2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Temperature | Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C) |
| Relative Humidity | Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation) |
| Acoustic Noise Level | Operating: 49.6 dBA Sleep: 6.6 dBA |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL 62368-1). Compliant with FCC Class B Requirements. |
| Power Consumption | Printing: Approx. 70 W Ready: Approx. 32 W Sleep: 2 W Power Off (Stand By): 0.3 W |
| Electrical Requirements | Voltage: AC 110–240 V Frequency: 50–60 Hz Current: 3.4 A |
| Dimensions (W x D x H) | 73" X 20" X 39" (Storage and Operating) |
| Dimensions (W x D x H) | 73" X 32" X 39" (Paper Basket Extended) |
- Brand: Epson
- Availability: In Stock
USD 3,300.00
