Epson delivers a first-of-its-kind design that redefines innovation, speed and versatility for its class: the all-in-one SureColor® T5770DM. This multifunction printer features an integrated 36" wide dual-light scanner that enables both high-speed scanning, at up to 10 inches per second (black-and-white) and 4.5 inches per second (color)1, and copying for documents up to 36" wide. What’s more, there is no additional footprint vs. single-function T5770 Series printers. The scanner’s dual light source reduces the appearance of wrinkles on the original document, and predefined modes help optimize scan quality based on image type. With a compact design that includes full front operation, the T5770DM fits where other printers don’t.
The T5770DM delivers A1/D-size prints in as fast as 16 seconds2 and features integrated wireless connectivity, so you can easily print from virtually anywhere in your home or office as well as scan a variety of file formats to your mobile device using the Epson Smart Panel®3 app. Additionally, the printer’s vibrant UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership. Add it all up, and the T5770DM is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel, drop-on-demand |
| Ink Type | UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) |
| Nozzle Configuration | 9,600 nozzles (1,600 x 6 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle |
| Maximum Resolution | 2400 x 1200 dpi |
| Real-Time Black Ink Selection | Dedicated Photo and Matte Black Ink channels selected automatically based on media type |
| Print Speed | A1/D-Size (Plain Paper): 16 sec A0-Size (Plain Paper): 32 sec (Speed Mode) A0-Size (Glossy): 108 sec (Speed Mode) |
| Printer Language/Drivers | Epson Professional Print Drivers (included), Epson ESC/P® raster, Adobe® PostScript® 3™ , Adobe PDF 1.7, Adobe Embedded Print Engine (included) |
| Memory (Built-In) | 6GB Printer + 3GB Scanner |
| In-Box Cartridge Fill Volume | Colors (C, M, Y, R) 240 mL each Black (MK, PK) 240 mL each |
| Retail Cartridge Fill Volume | Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL Black (MK, PK) 110 mL, 350 mL or 700 mL |
| Maximum Copies | Up to 99 |
| Reduction/Enlargement | 25% – 755% |
| Scanner Type | RGB Color Filter CIS |
| Scan/Copy Resolution | Up to 600 dpi, reprint 2400 x 2100 dpi |
| Scan Speed | Up to 4.5 ips (color) Up to 10 ips (monochrome) |
| Maximum Scan Width | Up to 36" |
| Maximum Scan Length | Up to 120" (300 dpi) |
| Scan Media Type | Plain Paper, Recycled Paper, Coated Paper, Glossy Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Newspaper, Flyer, Drafting Paper, Carrier Sheet |
| Maximum Copies | Up to 99 |
| Reduction/Enlargement | 25% – 755% |
| File Type Support | JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF |
| Printer Interfaces | SuperSpeed USB 3.0, 100Base-TX/1000Base-T, IEEE 802.11 b/g/n/ ac, USB memory stick, 960GB (SSD), Adobe Embedded Print Engine, Articulating LCD Display, 4.3" touchscreen and Optional RFID card reader (USB Expansion Port) |
| Standard Connectivity | SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz) |
| Number of Input Rolls | 2 (Input Roll #1 can be used optionally as a take-up reel) |
| Take-Up Reel | Included |
| Take-Up Reel Configuration | Roll print-side in or print-side out (selectable) |
| Minimum Roll Width | Minimum 10" |
| Maximum Roll Width | Up to 36" |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual (replaceable) |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lb |
| Roll Media Thickness | 0.07 mm to 0.8 mm |
| Roll Paper Remaining | Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel. |
| Single Sheet, Front or Rear Loading | Up to 36" wide |
| Minimum Sheet Width | 8" |
| Minimum Sheet Length | 8" |
| Sheet Media Max. Thickness | Up to 0.8 mm |
| Posterboard | 0.8 mm – 1.5 mm (rigid posterboard only) |
| Line Accuracy | ±0.1% or ±0.26 mm (whichever is greater) |
| Margin | Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths |
| Top/Bottom | Roll Paper: Min. 3 mm top/ 3 mm bottomCut Sheet: Min. 3 mm top and 12.7 mm bottom |
| BorderFree Sizes | 10", 13", 16", 17", 20", 24" or 36" wide |
| Maximum Printable Length | 298 ft |
| Minimum Line Width | 0.08 mm |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/ 2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation) |
| Acoustic Noise Level | Operating: 49.6 dBA Sleep: 6.6 dBA |
| Power Requirements | Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 3.4 A |
| Power Consumption | Printing: Approx. 90 W Ready: Approx. 44 W Sleep: 2 W Power Off (Standby): 0.3 W |
| Safety Approvals | USA and Canada (NRTL Certified, CSA/UL 62368-1) Compliant with FCC Class B Requirements |
| Dimensions (W x D x H) | 65" x 20" x 39" (storage and operating) 65" x 33" x 39" (paper basket extended) |
| Weight | 331 lb |

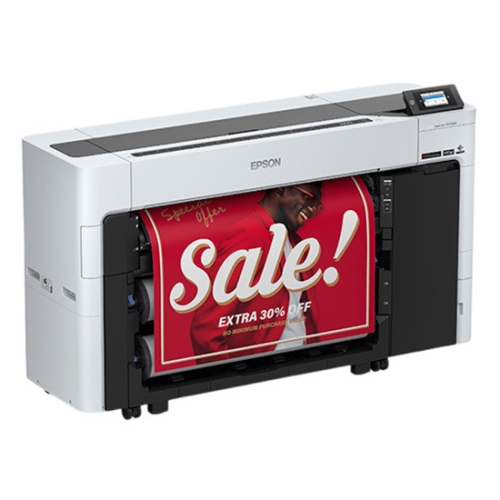

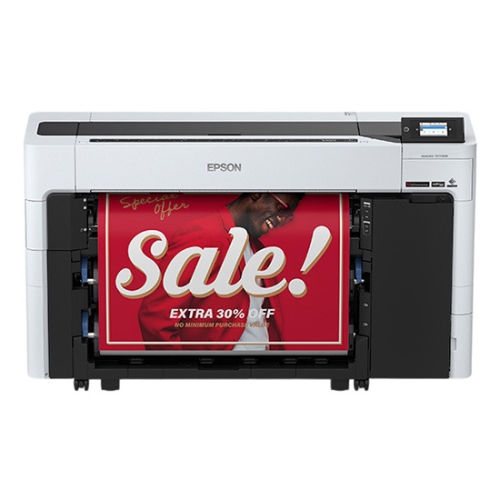

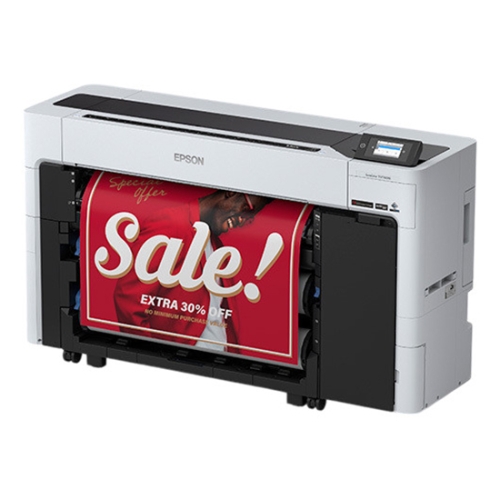

Epson SureColor T5770DM 36" Large Format Multifunction CAD/Technical Printer
- Product Code: EP54442
Epson delivers a first-of-its-kind design that redefines innovation, speed and versatility for its class: the all-in-one SureColor® T5770DM. This multifunction printer features an integrated 36" wide dual-light scanner that enables both high-speed scanning, at up to 10 inches per second (black-and-white) and 4.5 inches per second (color)1, and copying for documents up to 36" wide. What’s more, there is no additional footprint vs. single-function T5770 Series printers. The scanner’s dual light source reduces the appearance of wrinkles on the original document, and predefined modes help optimize scan quality based on image type. With a compact design that includes full front operation, the T5770DM fits where other printers don’t.
The T5770DM delivers A1/D-size prints in as fast as 16 seconds2 and features integrated wireless connectivity, so you can easily print from virtually anywhere in your home or office as well as scan a variety of file formats to your mobile device using the Epson Smart Panel®3 app. Additionally, the printer’s vibrant UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership. Add it all up, and the T5770DM is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel, drop-on-demand |
| Ink Type | UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black) |
| Nozzle Configuration | 9,600 nozzles (1,600 x 6 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle |
| Maximum Resolution | 2400 x 1200 dpi |
| Real-Time Black Ink Selection | Dedicated Photo and Matte Black Ink channels selected automatically based on media type |
| Print Speed | A1/D-Size (Plain Paper): 16 sec A0-Size (Plain Paper): 32 sec (Speed Mode) A0-Size (Glossy): 108 sec (Speed Mode) |
| Printer Language/Drivers | Epson Professional Print Drivers (included), Epson ESC/P® raster, Adobe® PostScript® 3™ , Adobe PDF 1.7, Adobe Embedded Print Engine (included) |
| Memory (Built-In) | 6GB Printer + 3GB Scanner |
| In-Box Cartridge Fill Volume | Colors (C, M, Y, R) 240 mL each Black (MK, PK) 240 mL each |
| Retail Cartridge Fill Volume | Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL Black (MK, PK) 110 mL, 350 mL or 700 mL |
| Maximum Copies | Up to 99 |
| Reduction/Enlargement | 25% – 755% |
| Scanner Type | RGB Color Filter CIS |
| Scan/Copy Resolution | Up to 600 dpi, reprint 2400 x 2100 dpi |
| Scan Speed | Up to 4.5 ips (color) Up to 10 ips (monochrome) |
| Maximum Scan Width | Up to 36" |
| Maximum Scan Length | Up to 120" (300 dpi) |
| Scan Media Type | Plain Paper, Recycled Paper, Coated Paper, Glossy Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Newspaper, Flyer, Drafting Paper, Carrier Sheet |
| Maximum Copies | Up to 99 |
| Reduction/Enlargement | 25% – 755% |
| File Type Support | JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF |
| Printer Interfaces | SuperSpeed USB 3.0, 100Base-TX/1000Base-T, IEEE 802.11 b/g/n/ ac, USB memory stick, 960GB (SSD), Adobe Embedded Print Engine, Articulating LCD Display, 4.3" touchscreen and Optional RFID card reader (USB Expansion Port) |
| Standard Connectivity | SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz) |
| Number of Input Rolls | 2 (Input Roll #1 can be used optionally as a take-up reel) |
| Take-Up Reel | Included |
| Take-Up Reel Configuration | Roll print-side in or print-side out (selectable) |
| Minimum Roll Width | Minimum 10" |
| Maximum Roll Width | Up to 36" |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual (replaceable) |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lb |
| Roll Media Thickness | 0.07 mm to 0.8 mm |
| Roll Paper Remaining | Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel. |
| Single Sheet, Front or Rear Loading | Up to 36" wide |
| Minimum Sheet Width | 8" |
| Minimum Sheet Length | 8" |
| Sheet Media Max. Thickness | Up to 0.8 mm |
| Posterboard | 0.8 mm – 1.5 mm (rigid posterboard only) |
| Line Accuracy | ±0.1% or ±0.26 mm (whichever is greater) |
| Margin | Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths |
| Top/Bottom | Roll Paper: Min. 3 mm top/ 3 mm bottomCut Sheet: Min. 3 mm top and 12.7 mm bottom |
| BorderFree Sizes | 10", 13", 16", 17", 20", 24" or 36" wide |
| Maximum Printable Length | 298 ft |
| Minimum Line Width | 0.08 mm |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/ 2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation) |
| Acoustic Noise Level | Operating: 49.6 dBA Sleep: 6.6 dBA |
| Power Requirements | Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 3.4 A |
| Power Consumption | Printing: Approx. 90 W Ready: Approx. 44 W Sleep: 2 W Power Off (Standby): 0.3 W |
| Safety Approvals | USA and Canada (NRTL Certified, CSA/UL 62368-1) Compliant with FCC Class B Requirements |
| Dimensions (W x D x H) | 65" x 20" x 39" (storage and operating) 65" x 33" x 39" (paper basket extended) |
| Weight | 331 lb |
- Brand: Epson
- Availability: In Stock
USD 5,500.00
