Enhance the way you work with the all-new the SureColor T5170M 36" wide MFP printer. Featuring a 36" wide printer with an integrated scanner in a sleek, ultra-small footprint2 up to 15% smaller than its competitors12, the T5170M allows for seamless team collaboration. Engineered for productivity, the SureColor T5170M delivers A1/D-size prints in as fast as 31 seconds1, supports a variety of media—including rolls and sheets—and features integrated wireless and Wi-Fi Direct® connectivity5 for easy printing from virtually anywhere in your home or office with a smart device4. From blueprints and technical documents to renderings and graphics, the T5170M consistently delivers durable, precise prints with Epson® PrecisionCore® MicroTFP® printhead technology and archival-quality, all-pigment-based UltraChrome® XD2 inks.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 4-channel drop on demand |
| Ink Type | UltraChrome XD2 pigment ink; 4-color (C, M, Y, K) |
| Line Accuracy | ±0.1% or ±0.26 mm |
| Nozzle Configuration | Black: 800 nozzles (800 nozzles x 1 channel) Color: 2400 nozzles (800 nozzles x 3 channels) |
| Droplet Technology | Smallest Droplet Size: 4 picoliters; Variable-Sized Droplet Technology can produce up to 3 different sizes per line |
| Maximum Resolution | 2400 x 1200 dpi |
| Print Speed | A1/D-size print: 31 seconds |
| Printer Language/Drivers | Epson ESC/P® raster HP-GL/2, HP RTL *1 |
| Scanner Sensor | CIS Sensor (Sheetfed) |
| Scan/Copy Resolution | Up to 600 dpi, reprint 2400 x 2100 dpi |
| Scan Speed | Up to 1.5 ips (Color) Up to 4.5 ips (Monochrome) |
| Maximum Scan Width | Up to 36" |
| Maximum Scan Length | Up to 8.9' |
| Scan Media Type | Plain Paper, Recycled Paper, Coated Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Carrier Sheet |
| Maximum Copies | Up to 99 |
| Reduction/Enlargement | 25% to 400% |
| File Type Support | JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF |
| Scan Modes | Scan to Network Folder, FTP Server, Secure FTP Server, Mail Server, Secure Mail Server, USB Memory Stick |
| In-Box Cartridge Fill Volume | Colors (C, M, Y): 26 mL Black (K): 50 mL |
| Retail Cartridge Fill Volume | Colors (C, M, Y): 26 mL or 50 mL Black (K): 50 mL or 80 mL |
| Single Top-Loading Roll | 36" wide |
| 2" Core Diameter | User-adjustable roll media adapters |
| Roll Cutting | High-speed internal rotary cutter; auto or manual |
| Maximum Roll Diameter | Up to 4.3" |
| Media Thickness | Up to 8.6 mi |
| Roll Paper Remaining | The amount of remaining paper can be controlled from the control panel |
| Single-Sheet, Top-Loading | Up to 36" wide |
| Auto Sheet Feeder | Up to 11" x 17"; up to 50 sheets |
| Minimum Sheet Size (1 Sheet and ASF) | 8.27" x 11" |
| Media Thickness | 10.2 mil |
| Maximum Paper Width | 36" |
| Left and Right Margins | 0 mm to 3 mm each |
| Maximum Printable Length | Limited by application, OS and driver/RIP used |
| Minimum Paper Width | Roll: 13"/Sheet: 8.27" |
| User Interface Display | 4.3" touchscreen |
| Memory | 1GB (printer) + 8GB (scanner) |
| Printer Interfaces | SuperSpeed USB*1, Wired Ethernet 100BASE-TX/1000BASE-T, Wireless LAN IEEE 802.11 b/g/n, USB memory stick, Wi-Fi Direct5 |
| Operating Systems | Mac® OS X® (10.6.8 or later) Windows ® 10, 8.1, 7 (32-bit, 64-bit) |
| Weight and Dimensions (W x D x H) | With Stand 50" x 24" x 39" 122 lb (56 kg) |
| Acoustic Noise Level | Operating: Approx. 49 dB(A) Sleep: Approx. 32 dB(A) |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Operating (Recommended): 59 ˚F to 77 ˚F (15 ˚C to 25˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 45% – 60% (no condensation) Storage: 5% – 85% (no condensation) |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL62368-1) |
| Electrical Requirements | Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 1.4 A |

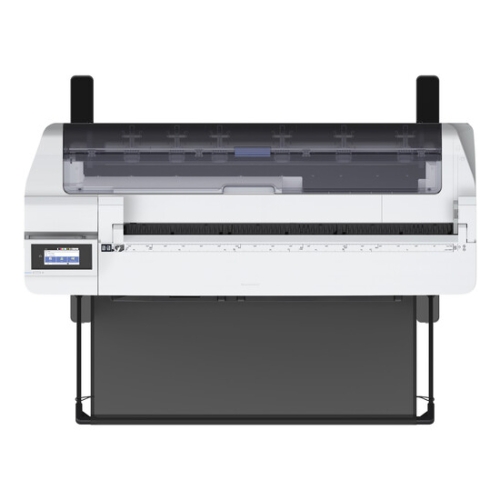

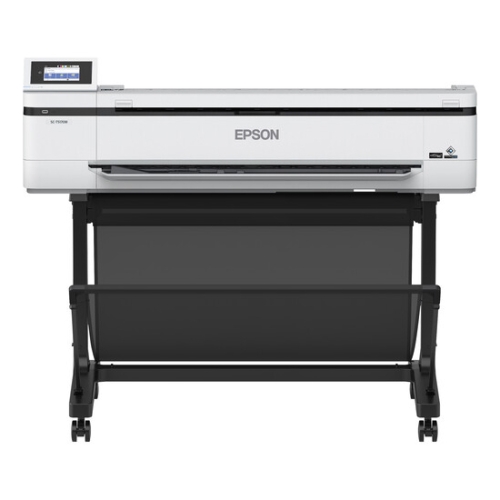

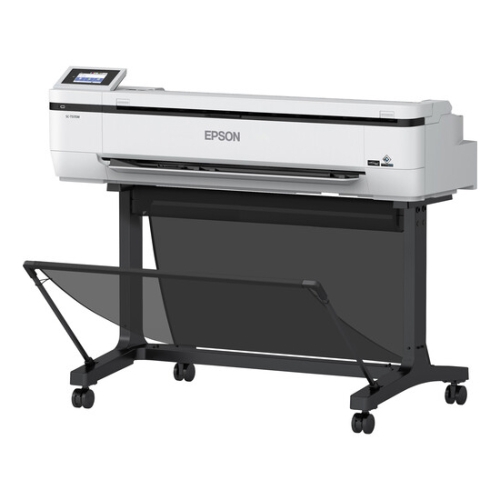

Epson SureColor T5170M 36" Wireless Printer with Integrated Scanner
- Product Code: EP54439
Enhance the way you work with the all-new the SureColor T5170M 36" wide MFP printer. Featuring a 36" wide printer with an integrated scanner in a sleek, ultra-small footprint2 up to 15% smaller than its competitors12, the T5170M allows for seamless team collaboration. Engineered for productivity, the SureColor T5170M delivers A1/D-size prints in as fast as 31 seconds1, supports a variety of media—including rolls and sheets—and features integrated wireless and Wi-Fi Direct® connectivity5 for easy printing from virtually anywhere in your home or office with a smart device4. From blueprints and technical documents to renderings and graphics, the T5170M consistently delivers durable, precise prints with Epson® PrecisionCore® MicroTFP® printhead technology and archival-quality, all-pigment-based UltraChrome® XD2 inks.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 4-channel drop on demand |
| Ink Type | UltraChrome XD2 pigment ink; 4-color (C, M, Y, K) |
| Line Accuracy | ±0.1% or ±0.26 mm |
| Nozzle Configuration | Black: 800 nozzles (800 nozzles x 1 channel) Color: 2400 nozzles (800 nozzles x 3 channels) |
| Droplet Technology | Smallest Droplet Size: 4 picoliters; Variable-Sized Droplet Technology can produce up to 3 different sizes per line |
| Maximum Resolution | 2400 x 1200 dpi |
| Print Speed | A1/D-size print: 31 seconds |
| Printer Language/Drivers | Epson ESC/P® raster HP-GL/2, HP RTL *1 |
| Scanner Sensor | CIS Sensor (Sheetfed) |
| Scan/Copy Resolution | Up to 600 dpi, reprint 2400 x 2100 dpi |
| Scan Speed | Up to 1.5 ips (Color) Up to 4.5 ips (Monochrome) |
| Maximum Scan Width | Up to 36" |
| Maximum Scan Length | Up to 8.9' |
| Scan Media Type | Plain Paper, Recycled Paper, Coated Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Carrier Sheet |
| Maximum Copies | Up to 99 |
| Reduction/Enlargement | 25% to 400% |
| File Type Support | JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF |
| Scan Modes | Scan to Network Folder, FTP Server, Secure FTP Server, Mail Server, Secure Mail Server, USB Memory Stick |
| In-Box Cartridge Fill Volume | Colors (C, M, Y): 26 mL Black (K): 50 mL |
| Retail Cartridge Fill Volume | Colors (C, M, Y): 26 mL or 50 mL Black (K): 50 mL or 80 mL |
| Single Top-Loading Roll | 36" wide |
| 2" Core Diameter | User-adjustable roll media adapters |
| Roll Cutting | High-speed internal rotary cutter; auto or manual |
| Maximum Roll Diameter | Up to 4.3" |
| Media Thickness | Up to 8.6 mi |
| Roll Paper Remaining | The amount of remaining paper can be controlled from the control panel |
| Single-Sheet, Top-Loading | Up to 36" wide |
| Auto Sheet Feeder | Up to 11" x 17"; up to 50 sheets |
| Minimum Sheet Size (1 Sheet and ASF) | 8.27" x 11" |
| Media Thickness | 10.2 mil |
| Maximum Paper Width | 36" |
| Left and Right Margins | 0 mm to 3 mm each |
| Maximum Printable Length | Limited by application, OS and driver/RIP used |
| Minimum Paper Width | Roll: 13"/Sheet: 8.27" |
| User Interface Display | 4.3" touchscreen |
| Memory | 1GB (printer) + 8GB (scanner) |
| Printer Interfaces | SuperSpeed USB*1, Wired Ethernet 100BASE-TX/1000BASE-T, Wireless LAN IEEE 802.11 b/g/n, USB memory stick, Wi-Fi Direct5 |
| Operating Systems | Mac® OS X® (10.6.8 or later) Windows ® 10, 8.1, 7 (32-bit, 64-bit) |
| Weight and Dimensions (W x D x H) | With Stand 50" x 24" x 39" 122 lb (56 kg) |
| Acoustic Noise Level | Operating: Approx. 49 dB(A) Sleep: Approx. 32 dB(A) |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Operating (Recommended): 59 ˚F to 77 ˚F (15 ˚C to 25˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 45% – 60% (no condensation) Storage: 5% – 85% (no condensation) |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL62368-1) |
| Electrical Requirements | Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 1.4 A |
- Brand: Epson
- Availability: In Stock
USD 2,500.00
Tags:Epson Printer
