As a high-volume print shop, you need powerful, versatile printing solutions that can tackle every job with unparalleled speed and efficiency. Now, with breakthrough resin ink, delivering astounding quality prints at true production speeds has never been more convenient.
Introducing the SureColor® R5070 — an all-new, high-performance signage printing solution, only from Epson®.
The first of its kind to feature multi-purpose resin ink, this 64" roll-to-roll signage printer consistently provides professional quality vinyl, banner, vehicle wrap and other traditional signage prints at remarkable speeds. Designed to keep up with fast-paced print shops, the R5070 offers immediate lamination, user-replaceable PrecisionCore® printheads and ultra low-cost inks for ease and savings unlike ever before.
SPECIFICATION :
| Printing Technology | Advanced PrecisionCore TFP® 12-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology |
| Ink Type | UltraChrome® RS with High-Density Black ink; 6-color+ Optimizer |
| Production Edition Ink Configuration | C, M, Y, K, LC, LM, OP, ML |
| UltraChrome RS Ink (1,500 mL x 1 each) | • Black T48E120 • Cyan T48E220 • Magenta T48E320 • Yellow T48E420 • Light Magenta T48E520 • Light Cyan T48E620 • Optimizer (OP) T48E720 • Maintenance Liquid (ML) T48E820 |
| Nozzle Configuration | Color and monochrome heads; 1,600 nozzles |
| Droplet Technology | Variable Droplet Technology |
| Maximum Resolution | 1200 x 2400 dpi |
| Printer Language/Drivers | Epson ESC/P® raster |
| Ink Supply Tank Fill Volume | 1,500 mL (1 of each color); 6 colors total |
| Single Roll-to-roll | 64" wide |
| Media Core | 2" or 3" core diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | 1 mm thick |
| Take-up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Roll Paper Width | 10" to 60" |
| Weight and Dimensions (W x D x H) | 116" x 41" x 70" (2,949 mm x 1,045 mm x 1,774 mm) Weight: 990 lbs (449kg) |
| Acoustic Noise Level | Approx 66.1 dB |
| Temperature | Operating: 59 F to 86 F (15 C to 30 C) |
| Relative Humidity Operating | 20 – 80% (no condensation) Operating (recommended): 40 – 60% (no condensation) |
| Printer Interfaces | Hi-Speed USB 2.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 10 and 8.1 |
| Epson Edge Print | Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection |
| Recommended PC Specifications | 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC200-240V Frequency: 50/60 Hz Current: 16A x 2 |
| Power Consumption | Printing: Approx 4.6 kW Standby: Approx 220 W Sleep Mode: Approx 44 W Power Off: Approx 1.0 W |

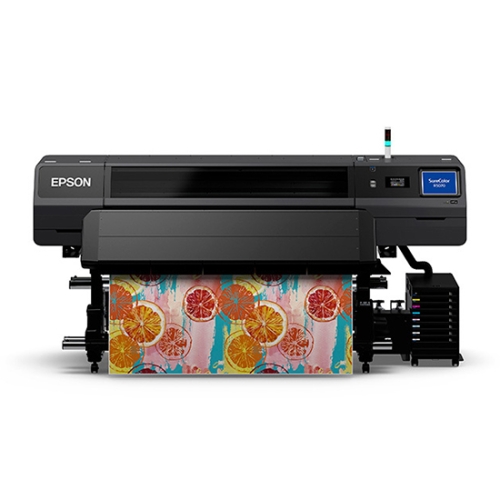

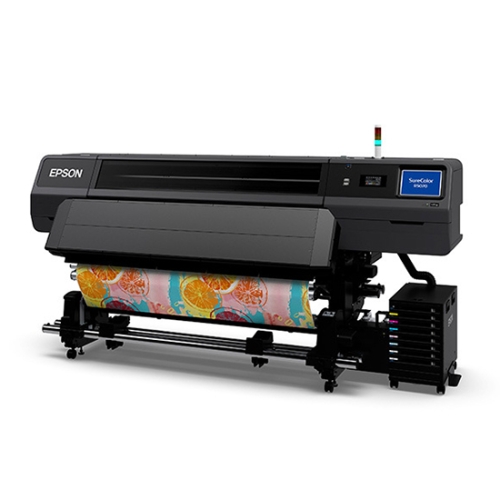

Epson SureColor R5070 64" Roll-to-Roll Resin Signage Printer
- Product Code: EP54421
As a high-volume print shop, you need powerful, versatile printing solutions that can tackle every job with unparalleled speed and efficiency. Now, with breakthrough resin ink, delivering astounding quality prints at true production speeds has never been more convenient.
Introducing the SureColor® R5070 — an all-new, high-performance signage printing solution, only from Epson®.
The first of its kind to feature multi-purpose resin ink, this 64" roll-to-roll signage printer consistently provides professional quality vinyl, banner, vehicle wrap and other traditional signage prints at remarkable speeds. Designed to keep up with fast-paced print shops, the R5070 offers immediate lamination, user-replaceable PrecisionCore® printheads and ultra low-cost inks for ease and savings unlike ever before.
SPECIFICATION :
| Printing Technology | Advanced PrecisionCore TFP® 12-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology |
| Ink Type | UltraChrome® RS with High-Density Black ink; 6-color+ Optimizer |
| Production Edition Ink Configuration | C, M, Y, K, LC, LM, OP, ML |
| UltraChrome RS Ink (1,500 mL x 1 each) | • Black T48E120 • Cyan T48E220 • Magenta T48E320 • Yellow T48E420 • Light Magenta T48E520 • Light Cyan T48E620 • Optimizer (OP) T48E720 • Maintenance Liquid (ML) T48E820 |
| Nozzle Configuration | Color and monochrome heads; 1,600 nozzles |
| Droplet Technology | Variable Droplet Technology |
| Maximum Resolution | 1200 x 2400 dpi |
| Printer Language/Drivers | Epson ESC/P® raster |
| Ink Supply Tank Fill Volume | 1,500 mL (1 of each color); 6 colors total |
| Single Roll-to-roll | 64" wide |
| Media Core | 2" or 3" core diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | 1 mm thick |
| Take-up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Roll Paper Width | 10" to 60" |
| Weight and Dimensions (W x D x H) | 116" x 41" x 70" (2,949 mm x 1,045 mm x 1,774 mm) Weight: 990 lbs (449kg) |
| Acoustic Noise Level | Approx 66.1 dB |
| Temperature | Operating: 59 F to 86 F (15 C to 30 C) |
| Relative Humidity Operating | 20 – 80% (no condensation) Operating (recommended): 40 – 60% (no condensation) |
| Printer Interfaces | Hi-Speed USB 2.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 10 and 8.1 |
| Epson Edge Print | Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection |
| Recommended PC Specifications | 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC200-240V Frequency: 50/60 Hz Current: 16A x 2 |
| Power Consumption | Printing: Approx 4.6 kW Standby: Approx 220 W Sleep Mode: Approx 44 W Power Off: Approx 1.0 W |
- Brand: Epson
- Availability: In Stock
USD 12,000.00
