Epson® professional photo and graphics printers built around our revolutionary PrecisionCore® MicroTFP printhead technology have set the benchmark for high-end print quality. With the SureColor® P8570DL, Epson brings that same technology to high-speed production, photo and graphic art printing—with an equally extraordinary design. Featuring the smallest footprint in its class1 and all-front-operation, this high-performance printer fits where other printers can’t. Its innovative 6-color aqueous-pigment ink set delivers the widest color gamut in its class2. This printer pairs simple, carefree operation with new levels of versatility and media flexibility, as well as a dual-roll configuration, to help you do more with less—all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer—it’s a powerful option for high-volume shops and fleets. The SureColor P8570DL uses 6-color UltraChrome® PRO6 Ink with Gray and a high-capacity 1.6-liter ink pack system to produce vivid, beautiful output that rivals comparable 8-color printers.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel drop on-demand printhead |
| Ink Type | UltraChrome PRO6 pigment ink; 6-ink, 6-color ink configuration: Cyan, Magenta, Yellow, Matte Black, Photo Black and Gray |
| Nozzle Configuration | 9600 nozzles (400 nozzles x 24 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per line |
| Maximum Resolution | 2400 x 1200 dpi |
| Production Print Speed | Premium Glossy Photo Paper 170 gsm Speed: 361 ft2 /hr Quality: 195 ft2 /hr Max. Quality: 89 ft2 /hr Plain Paper Draft: 1,571 ft2 /hr Speed: 1,200 ft2 /hr High Quality: 213 ft2 /hr |
| Printer Language/Drivers | Epson ESC/P® , Adobe PostScript 3™ , Adobe PDF 1.7 |
| Memory/Built In | 4 GB |
| Ink packs are not included with this printer | 1.6 L per color x 6 colors total (ink sold separately) |
| Ink Pack Fill Volume | 1.6 L per color available x 6 colors total |
| Dual Front-Loading Rolls | Two 10" to 44" wide |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual |
| Minimum Auto Cut Length | 8.66" |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lb |
| Media Thickness | 0.07 mm to 0.80 mm (roll and sheet media) |
| Roll Paper Remaining | Printable barcode tracking system – The amount of remaining media can be controlled and monitored from the front panel |
| Top/Bottom Margins (mm) | Normal: 20/15 (Premium Luster Photo Paper); Option: Top 3, 15, 20, 45/Bottom 3, 15 |
| Left/Right Margins | 3 mm each side; 0.24" total; or 0" at BorderFree® width |
| Integrated Take-Up Reel | Auto forward and backward; light- based media sensor with inner and outer winding options |
| BorderFree Print Widths | 10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24", 28.7", 33.1", 36", 40.6", 44" |
| Single Sheet, Front or Rear Loading | up to 44" wide |
| Minimum Sheet Width | 8" |
| Maximum Sheet Width | 44" |
| Media Thickness | 0.07 mm to 0.8 mm |
| Posterboard | 0.8 mm to 1.5 mm |
| Top/Bottom Margins | 3 mm/15 mm |
| Top/Bottom Margins with Centering On | 15 mm/15 mm |
| Left/Right Margins | 3 mm each side; 6 mm or 0.24" total; or 0" at BorderFree sizes |
| Line Accuracy | ±0.1% of specified length (±0.26 mm min.) |
| Minimum Sheet Size (Single Sheet) | 8.5" x 11" |
| Maximum Printable Length | 298' |
| Minimum Paper Width | Roll: 10"/Sheet: 8" |
| Articulating LCD Display | 4.3" Touchscreen |
| Printer Interfaces | SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE 802.11 b/g/n/ac, USB memory stick, 960 GB SSD Optional |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Dimensions (W x D x H) | 73" x 19.6" x 38.4" (Storage and Operating) |
| Dimensions (W x D x H) | 73" x 32.6" x 38.4" (Paper Basket Extended) |
| Weight | 364 lb |
| Acoustic Noise Level | Operating: 49.6 dBA according to ISO 7779 |
| Temperature | Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 45% – 60% (no condensation) Storage: 5% – 85% (no condensation) |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL 62368-1). Compliant with FCC Class B Requirements. |
| Electrical Requirements | Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 3.4 A – 1.6 A |
| Power Consumption | Printing: Approx. 70 W Ready: Approx. 32 W |

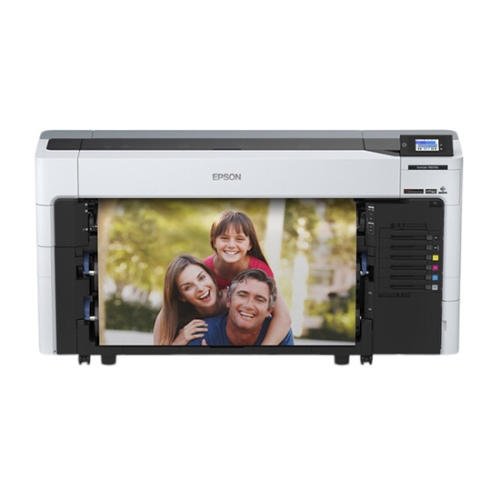

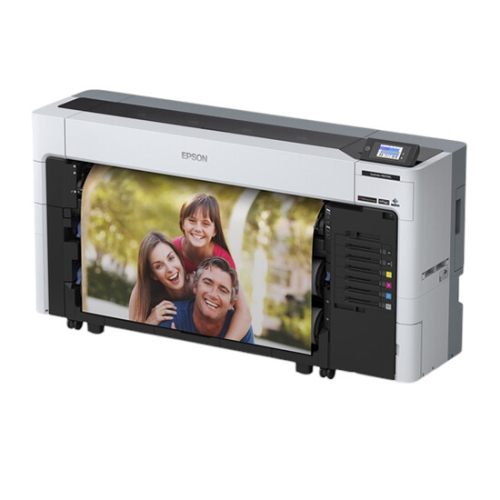

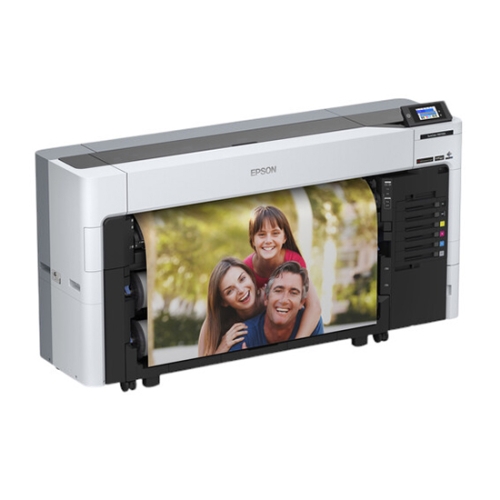

Epson SureColor P8570DL 44" Wide-Format Dual Roll Printer with High-Capacity 1.6L Ink Pack System
- Product Code: EP54419
Epson® professional photo and graphics printers built around our revolutionary PrecisionCore® MicroTFP printhead technology have set the benchmark for high-end print quality. With the SureColor® P8570DL, Epson brings that same technology to high-speed production, photo and graphic art printing—with an equally extraordinary design. Featuring the smallest footprint in its class1 and all-front-operation, this high-performance printer fits where other printers can’t. Its innovative 6-color aqueous-pigment ink set delivers the widest color gamut in its class2. This printer pairs simple, carefree operation with new levels of versatility and media flexibility, as well as a dual-roll configuration, to help you do more with less—all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer—it’s a powerful option for high-volume shops and fleets. The SureColor P8570DL uses 6-color UltraChrome® PRO6 Ink with Gray and a high-capacity 1.6-liter ink pack system to produce vivid, beautiful output that rivals comparable 8-color printers.
SPECIFICATION :
| Printing Technology | PrecisionCore MicroTFP 6-channel drop on-demand printhead |
| Ink Type | UltraChrome PRO6 pigment ink; 6-ink, 6-color ink configuration: Cyan, Magenta, Yellow, Matte Black, Photo Black and Gray |
| Nozzle Configuration | 9600 nozzles (400 nozzles x 24 channels) |
| Droplet Technology | Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per line |
| Maximum Resolution | 2400 x 1200 dpi |
| Production Print Speed | Premium Glossy Photo Paper 170 gsm Speed: 361 ft2 /hr Quality: 195 ft2 /hr Max. Quality: 89 ft2 /hr Plain Paper Draft: 1,571 ft2 /hr Speed: 1,200 ft2 /hr High Quality: 213 ft2 /hr |
| Printer Language/Drivers | Epson ESC/P® , Adobe PostScript 3™ , Adobe PDF 1.7 |
| Memory/Built In | 4 GB |
| Ink packs are not included with this printer | 1.6 L per color x 6 colors total (ink sold separately) |
| Ink Pack Fill Volume | 1.6 L per color available x 6 colors total |
| Dual Front-Loading Rolls | Two 10" to 44" wide |
| 2" or 3" Core Diameter | User-adjustable roll media spindles |
| Roll Cutting | High-speed internal rotary cutter; auto or manual |
| Minimum Auto Cut Length | 8.66" |
| Maximum Roll Diameter | Up to 6.69" |
| Maximum Roll Weight | 27 lb |
| Media Thickness | 0.07 mm to 0.80 mm (roll and sheet media) |
| Roll Paper Remaining | Printable barcode tracking system – The amount of remaining media can be controlled and monitored from the front panel |
| Top/Bottom Margins (mm) | Normal: 20/15 (Premium Luster Photo Paper); Option: Top 3, 15, 20, 45/Bottom 3, 15 |
| Left/Right Margins | 3 mm each side; 0.24" total; or 0" at BorderFree® width |
| Integrated Take-Up Reel | Auto forward and backward; light- based media sensor with inner and outer winding options |
| BorderFree Print Widths | 10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24", 28.7", 33.1", 36", 40.6", 44" |
| Single Sheet, Front or Rear Loading | up to 44" wide |
| Minimum Sheet Width | 8" |
| Maximum Sheet Width | 44" |
| Media Thickness | 0.07 mm to 0.8 mm |
| Posterboard | 0.8 mm to 1.5 mm |
| Top/Bottom Margins | 3 mm/15 mm |
| Top/Bottom Margins with Centering On | 15 mm/15 mm |
| Left/Right Margins | 3 mm each side; 6 mm or 0.24" total; or 0" at BorderFree sizes |
| Line Accuracy | ±0.1% of specified length (±0.26 mm min.) |
| Minimum Sheet Size (Single Sheet) | 8.5" x 11" |
| Maximum Printable Length | 298' |
| Minimum Paper Width | Roll: 10"/Sheet: 8" |
| Articulating LCD Display | 4.3" Touchscreen |
| Printer Interfaces | SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE 802.11 b/g/n/ac, USB memory stick, 960 GB SSD Optional |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later |
| Dimensions (W x D x H) | 73" x 19.6" x 38.4" (Storage and Operating) |
| Dimensions (W x D x H) | 73" x 32.6" x 38.4" (Paper Basket Extended) |
| Weight | 364 lb |
| Acoustic Noise Level | Operating: 49.6 dBA according to ISO 7779 |
| Temperature | Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 45% – 60% (no condensation) Storage: 5% – 85% (no condensation) |
| Safety Standards | USA and Canada (NRTL Certified, CSA/UL 62368-1). Compliant with FCC Class B Requirements. |
| Electrical Requirements | Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 3.4 A – 1.6 A |
| Power Consumption | Printing: Approx. 70 W Ready: Approx. 32 W |
- Brand: Epson
- Availability: In Stock
USD 4,800.00
