The SureColor® P20570 redefines large-format 64" production and fine art printing. From professional photography to fine art reproductions to graphic design, this advanced printer represents the pinnacle of professional printing technology for the demanding needs of multiple markets. It combines a high-performance 12-channel PrecisionCore® Micro TFP® printhead with Nozzle Verification Technology and UltraChrome® PRO12 Ink—including Orange, Green and Violet—in a high-capacity 1.6 L ink pack system, for the widest color gamut in its class1 and industry-leading print permanence.
SPECIFICATION :
| Printing Technology | PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control |
| Ink Type | UltraChrome PRO12 aqueous pigment ink; 12-color ink set |
| Ink Colors | • Photo Black T56E120 • Cyan T56E220 • Vivid Magenta T56E320 • Yellow T56E420 • Light Cyan T56E520 • Vivid Light Magenta T56E620 • Gray T56E720 • Matte Black T56E820 • Light Gray T56E920 • Orange T56EA20 • Green T56EB20 • Violet T56ED20 |
| Nozzle Configuration | 9,600 nozzles (800 nozzles x 12 colors) |
| Maximum Resolution | 2400 X 1200 dpi |
| Minimum Ink Droplet Volume | 3.5 picoliters |
| Print Speeds | Draft mode: 1,314 ft 2 /hr Photo-quality: 200 ft 2 /hr |
| Printer Language/Drivers | Standard: Epson ESC/P ® raster photographic drivers Optional Expansion Unit: Adobe® PostScript® 3, Adobe PDF 1.7 |
| Memory | 6GB |
| Ink Pack Fill Volume | 1.6 L per color available x 12 colors total |
| BorderFree® Sizes | 64", 60", 54", 44", 40.5", 36", 33.1", 28.7", 24", 23.4", 20", 17", 16", 13", 11.8", 10" |
| Maximum Printable Length | 298 feet |
| Maximum Reel Diameter | 7.48" with Auto Take-Up Reel Unit option |
| Maximum Reel Weight | 52 lb with Auto Take-Up Reel Unit option |
| Maximum Roll Diameter | 6.69" |
| Maximum Roll Weight | 52 lb |
| Roll Paper Thickness | 0.08 mm to 1.5 mm |
| Roll Paper Width | 10" to 60" |
| Roll Paper Remaining | Barcode management |
| Minimum Margins (Roll Paper) | With border: 3 mm top/left/right margins, 14 mm bottom margin BorderFree: 0 mm top/left/right/bottom margins |
| Minimum Margins (Cut Sheet) | With border: 3 mm top/left/right margins, 14 mm bottom margin BorderFree: 3 mm top, 14 mm bottom, 0 mm left/right margin |
| Paper Feed Method | Friction Feed |
| Paper Path | Roll (single roll); Cut sheet (manual feed); Poster board (manual feed) |
| Paper Thickness (Manual) | Cut sheet: 0.08 mm to 0.8 mm; Posterboard: 0.8 mm to 1.5 mm |
| Paper Width (Cut Sheet) | 8.27" to 44" |
| Printer Interfaces | SuperSpeed USB, 100Base-TX/1000Base-T; Optional 960GB SSD HD with encryption function |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 10.12 - 10.15, 11 or later Windows ® 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Server® 2022/2019/2016/2012 R2/2012/2008 R2/2008 |
| Weight and Dimensions (W X D X H) | 107.9" x 38.5" x 45.1" (Printing) 107.9" x 29.9" x 45.1" (Stowed) Weight: 494 lb |
| Acoustic Noise Level | Sound Power Level: Not greater than 7 B(A) Sound Pressure Level: Not greater than 55 dB(A) |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Storage: 5% – 85% (no condensation) |
| Standards and Approvals | NRTL Certified CSA/UL 62368-1 (United States and Canada) Compliant with Class A requirements USA (FCC), Canada (ICES-003) |
| Electrical Requirements | Voltage: AC 100 V – 240 V Frequency: 50 Hz – 60 Hz Rated Current: AC 100 V – 240 V (3.4 A-1.6 A) |
| Power Consumption | Operating: Approx. 95 W Standby: Approx. 0.3 W Ready: Approx. 40 W Sleep: Approx. 2.2 W |

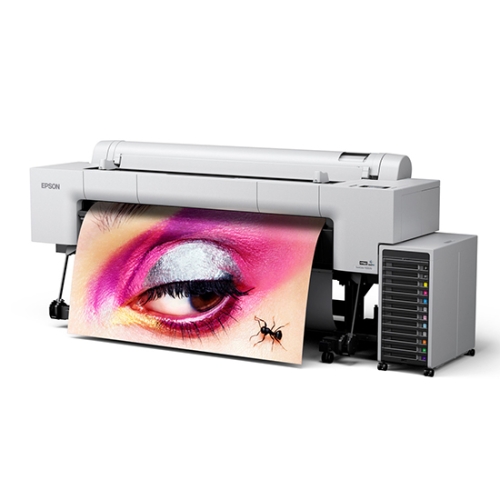

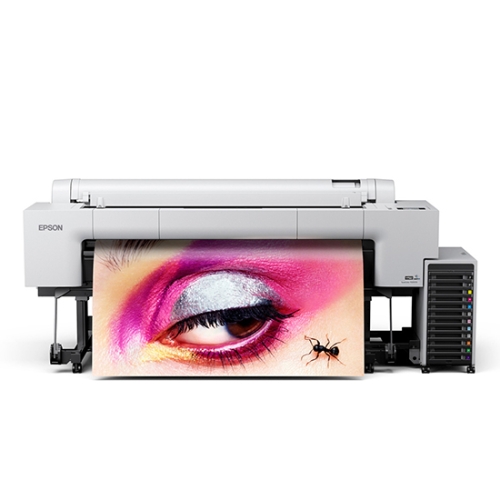

Epson SureColor P20570 64" Professional Printer
- Product Code: EP54412
The SureColor® P20570 redefines large-format 64" production and fine art printing. From professional photography to fine art reproductions to graphic design, this advanced printer represents the pinnacle of professional printing technology for the demanding needs of multiple markets. It combines a high-performance 12-channel PrecisionCore® Micro TFP® printhead with Nozzle Verification Technology and UltraChrome® PRO12 Ink—including Orange, Green and Violet—in a high-capacity 1.6 L ink pack system, for the widest color gamut in its class1 and industry-leading print permanence.
SPECIFICATION :
| Printing Technology | PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control |
| Ink Type | UltraChrome PRO12 aqueous pigment ink; 12-color ink set |
| Ink Colors | • Photo Black T56E120 • Cyan T56E220 • Vivid Magenta T56E320 • Yellow T56E420 • Light Cyan T56E520 • Vivid Light Magenta T56E620 • Gray T56E720 • Matte Black T56E820 • Light Gray T56E920 • Orange T56EA20 • Green T56EB20 • Violet T56ED20 |
| Nozzle Configuration | 9,600 nozzles (800 nozzles x 12 colors) |
| Maximum Resolution | 2400 X 1200 dpi |
| Minimum Ink Droplet Volume | 3.5 picoliters |
| Print Speeds | Draft mode: 1,314 ft 2 /hr Photo-quality: 200 ft 2 /hr |
| Printer Language/Drivers | Standard: Epson ESC/P ® raster photographic drivers Optional Expansion Unit: Adobe® PostScript® 3, Adobe PDF 1.7 |
| Memory | 6GB |
| Ink Pack Fill Volume | 1.6 L per color available x 12 colors total |
| BorderFree® Sizes | 64", 60", 54", 44", 40.5", 36", 33.1", 28.7", 24", 23.4", 20", 17", 16", 13", 11.8", 10" |
| Maximum Printable Length | 298 feet |
| Maximum Reel Diameter | 7.48" with Auto Take-Up Reel Unit option |
| Maximum Reel Weight | 52 lb with Auto Take-Up Reel Unit option |
| Maximum Roll Diameter | 6.69" |
| Maximum Roll Weight | 52 lb |
| Roll Paper Thickness | 0.08 mm to 1.5 mm |
| Roll Paper Width | 10" to 60" |
| Roll Paper Remaining | Barcode management |
| Minimum Margins (Roll Paper) | With border: 3 mm top/left/right margins, 14 mm bottom margin BorderFree: 0 mm top/left/right/bottom margins |
| Minimum Margins (Cut Sheet) | With border: 3 mm top/left/right margins, 14 mm bottom margin BorderFree: 3 mm top, 14 mm bottom, 0 mm left/right margin |
| Paper Feed Method | Friction Feed |
| Paper Path | Roll (single roll); Cut sheet (manual feed); Poster board (manual feed) |
| Paper Thickness (Manual) | Cut sheet: 0.08 mm to 0.8 mm; Posterboard: 0.8 mm to 1.5 mm |
| Paper Width (Cut Sheet) | 8.27" to 44" |
| Printer Interfaces | SuperSpeed USB, 100Base-TX/1000Base-T; Optional 960GB SSD HD with encryption function |
| Operating Systems | Mac® OS X® 10.9.5 or later, macOS® 10.12 - 10.15, 11 or later Windows ® 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Server® 2022/2019/2016/2012 R2/2012/2008 R2/2008 |
| Weight and Dimensions (W X D X H) | 107.9" x 38.5" x 45.1" (Printing) 107.9" x 29.9" x 45.1" (Stowed) Weight: 494 lb |
| Acoustic Noise Level | Sound Power Level: Not greater than 7 B(A) Sound Pressure Level: Not greater than 55 dB(A) |
| Temperature | Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Storage: 5% – 85% (no condensation) |
| Standards and Approvals | NRTL Certified CSA/UL 62368-1 (United States and Canada) Compliant with Class A requirements USA (FCC), Canada (ICES-003) |
| Electrical Requirements | Voltage: AC 100 V – 240 V Frequency: 50 Hz – 60 Hz Rated Current: AC 100 V – 240 V (3.4 A-1.6 A) |
| Power Consumption | Operating: Approx. 95 W Standby: Approx. 0.3 W Ready: Approx. 40 W Sleep: Approx. 2.2 W |
- Brand: Epson
- Availability: In Stock
USD 6,000.00
Tags:Epson Printer
