Supercharge your business’s productivity with the high-performance SureColor® F9570H. From the #1 dye-sublimation printer brand in North America1, this 64" dye-sublimation transfer printer features an advanced, user-replaceable 2.6" PrecisionCore® Micro TFP® printhead with Nozzle Verification Technology to deliver outstanding-quality prints at high speeds up to 1,590 ft2/hr2. In addition, UltraChrome® DS Ink technology provides exceptional color saturation and contrast, ideal for professional-quality apparel, promotional products, soft signage, décor and more. The SureColor F9570H features a high-capacity, hot-swappable Replaceable Ink Pack System—helping ensure seamless, round-the-clock production—and an expanded 6-color ink set with multiple configurations for your color needs: CMYK plus your choice of either Light Cyan and Light Magenta for enhanced smoothness, Fluorescent Pink and Fluorescent Yellow for added brightness, or Orange and Violet for an expanded color gamut.
SPECIFICATION :
| Printing Technology | PrecisionCore Micro TFP drop-on-demand, inkjet printhead with Nozzle Verification Technology |
| Ink Type | UltraChrome DS with Fluorescent Pink and Fluorescent Yellow, Orange and Violet, or Light Cyan and Light Magenta; 6-color |
| Ink Configuration | C, M, Y, HDK, plus Lc/Lm C, M, Y, HDK, plus Or/Vi C, M, Y, HDK, plus Fp/Fy |
| Nozzle Configuration | 1,600 nozzles per color x 6 colors |
| Droplet Technology | Variable-Sized Droplet Technology |
| Maximum Resolution | 600 x 1200 dpi |
| Ink Pack Fill Volume | Dual 1.6 L packs per color (hot- swappable) x 6 colors |
| Single Roll-to-Roll | Up to 64" wide |
| Roll Media Core | 2" or 3" diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | From 0.04 mm to 1 mm thick |
| Take-Up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Printer Interfaces | SuperSpeed USB 3.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 11, 10 and 8.1 Minimum PC Specifications: 3 GHz or higher quad-core CPU, 8GB RAM, 50GB SSD and high-speed Internet connection |
| Temperature | Operating: 59˚ F to 95˚ F (15˚ C to 35˚ C) Operating (Recommended): 59˚ F to 77˚ F (15˚ C to 25˚ C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 40% – 60% (no condensation) |
| Power Consumption | Printing: 1,040 W Idle: 360 W Sleep: 3.2 W |
| Weight and Dimensions (W x D x H) | Dimensions: 103" x 37" x 40" (2,620 mm x 929 mm x 1,020 mm) Weight: 721 lb (327 kg) |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC 100 V – 120 V / 200 V – 240 V Frequency: 50 Hz/60 Hz Current: 3.2 A – 6.8 A / 10 A – 12 A |

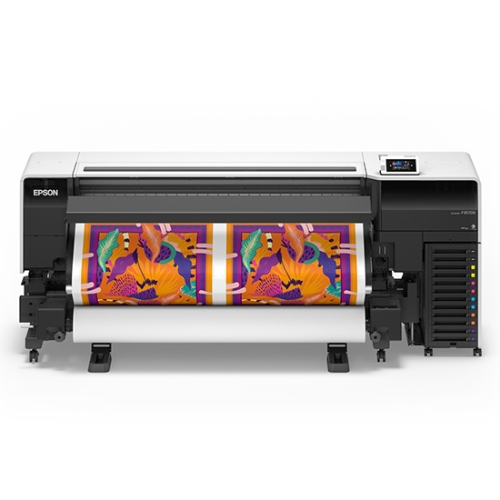

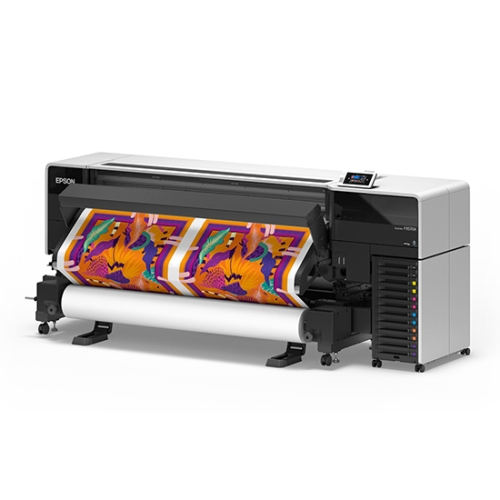

Epson SureColor F9570H Production Edition 64" Dye-Sublimation Printer
- Product Code: EP54411
Supercharge your business’s productivity with the high-performance SureColor® F9570H. From the #1 dye-sublimation printer brand in North America1, this 64" dye-sublimation transfer printer features an advanced, user-replaceable 2.6" PrecisionCore® Micro TFP® printhead with Nozzle Verification Technology to deliver outstanding-quality prints at high speeds up to 1,590 ft2/hr2. In addition, UltraChrome® DS Ink technology provides exceptional color saturation and contrast, ideal for professional-quality apparel, promotional products, soft signage, décor and more. The SureColor F9570H features a high-capacity, hot-swappable Replaceable Ink Pack System—helping ensure seamless, round-the-clock production—and an expanded 6-color ink set with multiple configurations for your color needs: CMYK plus your choice of either Light Cyan and Light Magenta for enhanced smoothness, Fluorescent Pink and Fluorescent Yellow for added brightness, or Orange and Violet for an expanded color gamut.
SPECIFICATION :
| Printing Technology | PrecisionCore Micro TFP drop-on-demand, inkjet printhead with Nozzle Verification Technology |
| Ink Type | UltraChrome DS with Fluorescent Pink and Fluorescent Yellow, Orange and Violet, or Light Cyan and Light Magenta; 6-color |
| Ink Configuration | C, M, Y, HDK, plus Lc/Lm C, M, Y, HDK, plus Or/Vi C, M, Y, HDK, plus Fp/Fy |
| Nozzle Configuration | 1,600 nozzles per color x 6 colors |
| Droplet Technology | Variable-Sized Droplet Technology |
| Maximum Resolution | 600 x 1200 dpi |
| Ink Pack Fill Volume | Dual 1.6 L packs per color (hot- swappable) x 6 colors |
| Single Roll-to-Roll | Up to 64" wide |
| Roll Media Core | 2" or 3" diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | From 0.04 mm to 1 mm thick |
| Take-Up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Printer Interfaces | SuperSpeed USB 3.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 11, 10 and 8.1 Minimum PC Specifications: 3 GHz or higher quad-core CPU, 8GB RAM, 50GB SSD and high-speed Internet connection |
| Temperature | Operating: 59˚ F to 95˚ F (15˚ C to 35˚ C) Operating (Recommended): 59˚ F to 77˚ F (15˚ C to 25˚ C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 40% – 60% (no condensation) |
| Power Consumption | Printing: 1,040 W Idle: 360 W Sleep: 3.2 W |
| Weight and Dimensions (W x D x H) | Dimensions: 103" x 37" x 40" (2,620 mm x 929 mm x 1,020 mm) Weight: 721 lb (327 kg) |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC 100 V – 120 V / 200 V – 240 V Frequency: 50 Hz/60 Hz Current: 3.2 A – 6.8 A / 10 A – 12 A |
- Brand: Epson
- Availability: In Stock
USD 17,000.00
