Supercharge your business’s productivity with the high-performance SureColor® F9570. From the #1 dye-sublimation printer brand in North America1, this versatile 64" dye-sublimation transfer printer was designed from the ground up to deliver worry-free reliability in high-volume environments. It features an advanced, user-replaceable 2.6" PrecisionCore® Micro TFP® printhead with Nozzle Verification Technology to deliver outstanding-quality prints at high speeds up 1,590 ft2/hr2. In addition, UltraChrome® DS Ink technology delivers exceptional color saturation and contrast that’s ideal for professional-quality apparel, promotional products, soft signage, décor and more. The SureColor F9570 comes with a 1-year limited warranty—and is backed by Epson’s world-class service and support—a high-capacity and hot-swappable Replaceable Ink Pack System, and fleet monitoring with the Epson Cloud Solution PORT®3 to help ensure seamless, round-the-clock production.
SPECIFICATION :
| Printing Technology | PrecisionCore Micro TFP drop-on-demand, inkjet printhead with Nozzle Verification Technology |
| Ink Type | UltraChrome DS with High-Density Black Ink; 4-color |
| Ink Configuration | C, M, Y, HDK |
| Nozzle Configuration | 1,600 nozzles per color x 4 colors |
| Droplet Technology | Variable-Sized Droplet Technology |
| Maximum Resolution | 600 x 1200 dpi |
| Ink Pack Fill Volume | C, M, Y and HDK: 1.6 L packs per color (hot-swappable) |
| Single Roll-to-Roll | Up to 64" wide |
| Roll Media Core | 2" or 3" diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | From 0.04 mm to 1 mm thick |
| Take-Up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Printer Interfaces | SuperSpeed USB 3.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 11, 10 and 8.1 Minimum PC Specifications: 3 GHz or higher quad-core CPU, 8GB RAM, 50GB SSD and high-speed Internet connection |
| Temperature | Operating: 59˚ F to 95˚ F (15˚ C to 35˚ C) Operating (Recommended): 59˚ F to 77˚ F (15˚ C to 25˚ C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 40% – 60% (no condensation) |
| Power Consumption | Printing: 1,030 W Idle: 355 W Sleep: 3.2 W |
| Weight and Dimensions (W x D x H) | Dimensions: 103" x 37" x 40" (2,620 mm x 929 mm x 1,020 mm) Weight: 716.5 lb (325 kg) |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC 100 V – 120 V / 200 V – 240 V Frequency: 50 Hz/60 Hz Current: 3.2 A – 6.8 A / 10 A – 12 A |

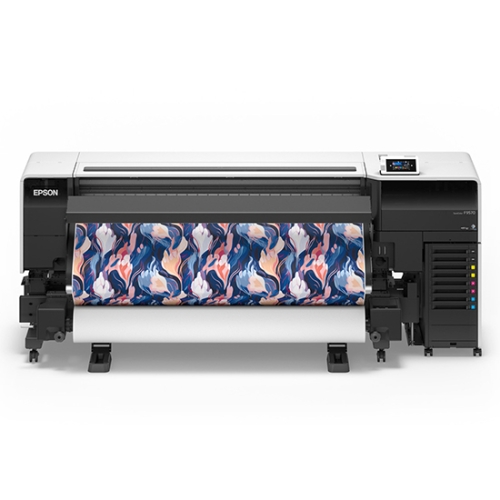

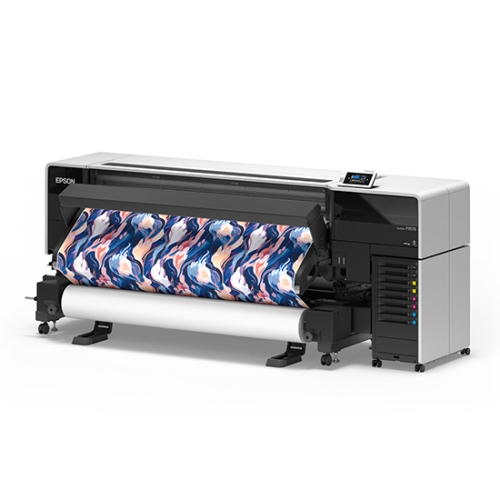

Epson SureColor F9570 Production Edition 64" Dye-Sublimation Printer
- Product Code: EP54410
Supercharge your business’s productivity with the high-performance SureColor® F9570. From the #1 dye-sublimation printer brand in North America1, this versatile 64" dye-sublimation transfer printer was designed from the ground up to deliver worry-free reliability in high-volume environments. It features an advanced, user-replaceable 2.6" PrecisionCore® Micro TFP® printhead with Nozzle Verification Technology to deliver outstanding-quality prints at high speeds up 1,590 ft2/hr2. In addition, UltraChrome® DS Ink technology delivers exceptional color saturation and contrast that’s ideal for professional-quality apparel, promotional products, soft signage, décor and more. The SureColor F9570 comes with a 1-year limited warranty—and is backed by Epson’s world-class service and support—a high-capacity and hot-swappable Replaceable Ink Pack System, and fleet monitoring with the Epson Cloud Solution PORT®3 to help ensure seamless, round-the-clock production.
SPECIFICATION :
| Printing Technology | PrecisionCore Micro TFP drop-on-demand, inkjet printhead with Nozzle Verification Technology |
| Ink Type | UltraChrome DS with High-Density Black Ink; 4-color |
| Ink Configuration | C, M, Y, HDK |
| Nozzle Configuration | 1,600 nozzles per color x 4 colors |
| Droplet Technology | Variable-Sized Droplet Technology |
| Maximum Resolution | 600 x 1200 dpi |
| Ink Pack Fill Volume | C, M, Y and HDK: 1.6 L packs per color (hot-swappable) |
| Single Roll-to-Roll | Up to 64" wide |
| Roll Media Core | 2" or 3" diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | From 0.04 mm to 1 mm thick |
| Take-Up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Printer Interfaces | SuperSpeed USB 3.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 11, 10 and 8.1 Minimum PC Specifications: 3 GHz or higher quad-core CPU, 8GB RAM, 50GB SSD and high-speed Internet connection |
| Temperature | Operating: 59˚ F to 95˚ F (15˚ C to 35˚ C) Operating (Recommended): 59˚ F to 77˚ F (15˚ C to 25˚ C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 40% – 60% (no condensation) |
| Power Consumption | Printing: 1,030 W Idle: 355 W Sleep: 3.2 W |
| Weight and Dimensions (W x D x H) | Dimensions: 103" x 37" x 40" (2,620 mm x 929 mm x 1,020 mm) Weight: 716.5 lb (325 kg) |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC 100 V – 120 V / 200 V – 240 V Frequency: 50 Hz/60 Hz Current: 3.2 A – 6.8 A / 10 A – 12 A |
- Brand: Epson
- Availability: In Stock
USD 14,500.00
