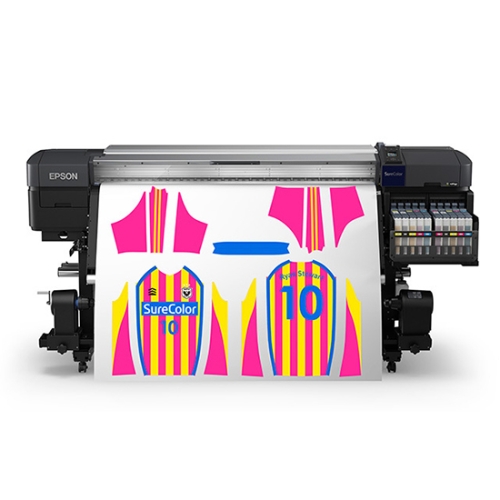

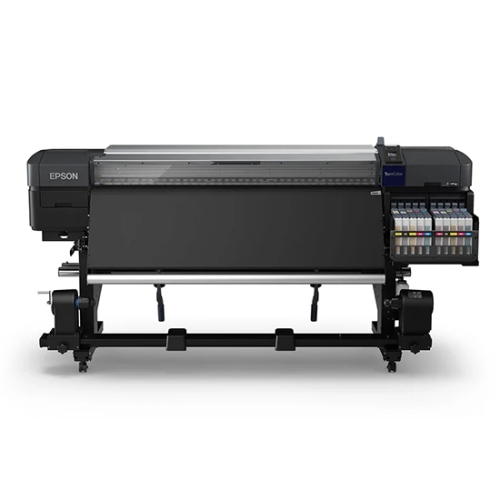

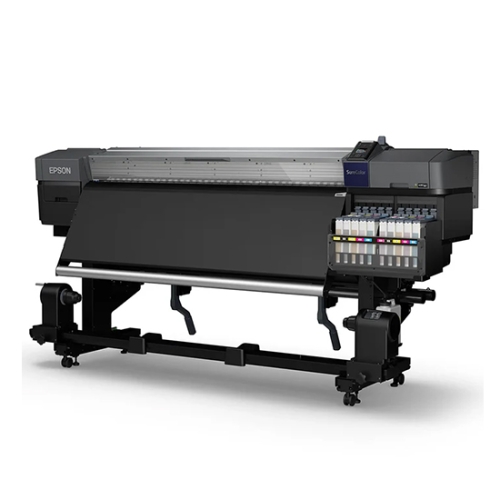

Produce vibrant apparel, soft signage, décor and more with the high-performance SureColor F9470H 64-inch printer. Purposefully designed for high-visibility dye-sublimation printing, the F9470H features the full spectrum of brilliant UltraChrome® DS6 ink, including Fluorescent Pink and Fluorescent Yellow, for exceptional color saturation and brightness. The perfect choice for high-volume, industrial environments, the F9470H includes dual PrecisionCore® TFP® printheads and delivers outstanding-quality prints at speeds up to 1,169 sqft/hour1. A truly turnkey solution, the F9470H arrives with Epson Edge® workflow software, highly accurate roll-to-roll media support system with advanced auto paper-tension control, and high-capacity ink tanks for seamless 24/7 production.
SPECIFICATION :
| Printing Technology | Dual advanced PrecisionCore® TFP® 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology |
| Maximum Resolution | 1440 x 720 dpi |
| Print Speed | • Speed: up to 1,169 sq ft/hr • Sports apparel: up to 568 sq ft/hr • Fashion/signage: up to 1,004 sq ft/hr |
| Minimum Ink Droplet Size | Variable Droplet Technology |
| Ink Type | UltraChrome DS6 ink technology; 5-color |
| Ink Configuration | C, M, Y, HDK, Fy, Fp |
| Replacement Ink | • High Density Black Ink Packs (T46C820) • Cyan Ink Packs (T46C220) • Magenta Ink Packs (T46C320) • Yellow Ink Packs (T46C420) • Fluorescent Pink Ink Packs (T46C520) • Fluorescent Yellow Ink Packs (T46C620) |
| Operating Systems | Windows® 10 and 8.1 |
| System Requirements | Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection |
| Temperature | Operating (recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C) Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C) |
| Humidity | Operating (recommended): 40 – 60% (no condensation) Operating: 20 – 80% (no condensation) |
| Sound Level | Less than 59 dB(A) according to ISO 7779 |
| Dimensions | 103" x 37" x 53" (2,620 mm x 934 mm x 1,332 mm) (W x D x H) |
| Weight | 639 lb (290 kg) |
| Eco Features | Epson UltraChrome DS Ink is certified by ECO PASSPORT by OEKO-TEX®, meaning it’s safe for adults, children and babies. RoHS compliant Epson America, Inc. is a SmartWay® Transport Partner Recyclable product |
| Ink Supply Fill Volume | • 3,000 mL each x CMYHDK • 2,000 mL each x FyFp |
| In-box Ink Fill Volume | • 2,000 mL each x CMYHDK • 1,000 mL each x FyFp |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Maximum Printable Width | Up to 63.6" |
| Left/Right Margins | 0.20" (0.40" total) |
| Single Roll-to-Roll / Top-loading Roll | 64" wide |
| Media Core | 2" or 3" core diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | From 45 gsm to 1 mm thick |
| Take-up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Printer Language | Epson ESC/P® raster |
| Interfaces | 1000Base-T Ethernet (1 port) Hi-Speed USB 2.0 (1 port) |
| Rated Voltage | AC 100 – 120 V; 200 – 240 V |
| Rated Frequency | 50 / 60Hz |
| Rated Current | 10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V |
| Power Consumption | • Printing: approx. 570 W or less • Power Off: approx 1.0 W • Sleep Mode: approx 17 W • Standby Heaters On: 340 W |
| Power Requirements | Requires two outlets |
Epson SureColor F9470H 64" Dye-Sublimation Inkjet Printer
- Product Code: EP54409
Produce vibrant apparel, soft signage, décor and more with the high-performance SureColor F9470H 64-inch printer. Purposefully designed for high-visibility dye-sublimation printing, the F9470H features the full spectrum of brilliant UltraChrome® DS6 ink, including Fluorescent Pink and Fluorescent Yellow, for exceptional color saturation and brightness. The perfect choice for high-volume, industrial environments, the F9470H includes dual PrecisionCore® TFP® printheads and delivers outstanding-quality prints at speeds up to 1,169 sqft/hour1. A truly turnkey solution, the F9470H arrives with Epson Edge® workflow software, highly accurate roll-to-roll media support system with advanced auto paper-tension control, and high-capacity ink tanks for seamless 24/7 production.
SPECIFICATION :
| Printing Technology | Dual advanced PrecisionCore® TFP® 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology |
| Maximum Resolution | 1440 x 720 dpi |
| Print Speed | • Speed: up to 1,169 sq ft/hr • Sports apparel: up to 568 sq ft/hr • Fashion/signage: up to 1,004 sq ft/hr |
| Minimum Ink Droplet Size | Variable Droplet Technology |
| Ink Type | UltraChrome DS6 ink technology; 5-color |
| Ink Configuration | C, M, Y, HDK, Fy, Fp |
| Replacement Ink | • High Density Black Ink Packs (T46C820) • Cyan Ink Packs (T46C220) • Magenta Ink Packs (T46C320) • Yellow Ink Packs (T46C420) • Fluorescent Pink Ink Packs (T46C520) • Fluorescent Yellow Ink Packs (T46C620) |
| Operating Systems | Windows® 10 and 8.1 |
| System Requirements | Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection |
| Temperature | Operating (recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C) Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C) |
| Humidity | Operating (recommended): 40 – 60% (no condensation) Operating: 20 – 80% (no condensation) |
| Sound Level | Less than 59 dB(A) according to ISO 7779 |
| Dimensions | 103" x 37" x 53" (2,620 mm x 934 mm x 1,332 mm) (W x D x H) |
| Weight | 639 lb (290 kg) |
| Eco Features | Epson UltraChrome DS Ink is certified by ECO PASSPORT by OEKO-TEX®, meaning it’s safe for adults, children and babies. RoHS compliant Epson America, Inc. is a SmartWay® Transport Partner Recyclable product |
| Ink Supply Fill Volume | • 3,000 mL each x CMYHDK • 2,000 mL each x FyFp |
| In-box Ink Fill Volume | • 2,000 mL each x CMYHDK • 1,000 mL each x FyFp |
| Maximum Paper Width | 64" |
| Minimum Paper Width | 11.8" |
| Maximum Printable Width | Up to 63.6" |
| Left/Right Margins | 0.20" (0.40" total) |
| Single Roll-to-Roll / Top-loading Roll | 64" wide |
| Media Core | 2" or 3" core diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | From 45 gsm to 1 mm thick |
| Take-up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Printer Language | Epson ESC/P® raster |
| Interfaces | 1000Base-T Ethernet (1 port) Hi-Speed USB 2.0 (1 port) |
| Rated Voltage | AC 100 – 120 V; 200 – 240 V |
| Rated Frequency | 50 / 60Hz |
| Rated Current | 10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V |
| Power Consumption | • Printing: approx. 570 W or less • Power Off: approx 1.0 W • Sleep Mode: approx 17 W • Standby Heaters On: 340 W |
| Power Requirements | Requires two outlets |
- Brand: Epson
- Availability: In Stock
USD 16,000.00
