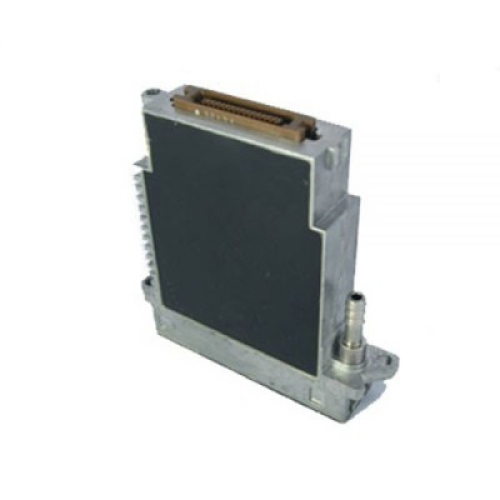

Konica 256 / 42pl Printhead

The Konica 256 / 42pl Printhead is an entry level, compact, shear mode, piezo on-demand print head that is usable in binary mode only. It is suitable for both wide format and industrial applications.The Konica 256 / 42pl Printhead has 256 nozzles with a droplet size of 42pl and a nozzle resolution of 180 dpi. It is compatible with oil based and solvent inks. This is Konica original print head and it includes the Head ID and the necessary waveform information.

To be used with:

Aestrik InWear S3304K2 / InWear S3308K2

Megagraphic Extreme Compact Solvent XK 320

LIYU PJ3204 / LIYU PJ3208

Remarks: Original

Specification:

Drive Mode: Piezo Drop-On-Demand

Nozzle Resolution: 180 dpi

Nozzle Number: 256 nozzles

Drop Volume: 42pl

Ink Compatibility: Oil Based and Solvent

Heater: not integrated
