Achieve industrial reliability and round-the-clock productivity, all at a low total cost of ownership, with the breakthrough SureColor® F10070 printer. Our most advanced dye-sublimation printer to date, the F10070 features four, all-new 4.7" PrecisionCore® printheads to deliver roll-to-roll performance at speeds up to 2,700 sqft/hr1. Designed with versatility in mind, the F10070 consistently produces astounding-quality textiles, apparel and more, using vibrant UltraChrome® DS Ink Technology. It also offers an array of features to maximize efficiency and minimize downtime, including user-replaceable printheads and a low-cost, high-capacity replaceable ink pack system that holds up to 20 L of ink per colour for longer print runs with less user intervention.
SPECIFICATION :
| Printing Technology | Four advanced PrecisionCore microTFP drop-on-demand, inkjet printheads with nozzle verficiation technology |
| Ink Type | UltraChrome® DS with High-Density Black ink; 4-color |
| Ink Configuration | C, M, Y, HDK |
| Nozzle Configuration | C, M, Y, and HDK: 3,200 nozzles each |
| Droplet Technology | Variable Droplet Technology |
| Maximum Resolution | 1200 x 1200 dpi |
| Printer Speed | Fashion/signage: Up to 2,700 sq ft/hr Sports apparel: Up to 1,600 sq ft/hr |
| Ink Pack Fill Volume | C, M, Y, and HDK: Dual 3 L or 10 L packs each (Hot Swap) |
| Included Ink in the Box | C, M, Y, HDK: 2 x 3 L ink packs each |
| Single Roll-to-Roll | Up to 76.7" wide |
| Roll Media Core | 2" or 3" diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 132 lb |
| Media Thickness | From 22 gsm to 1 mm thick |
| Take-Up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 76.7" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Printer Interfaces | Hi-Speed USB 3.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 10 and 8.1 Epson Edge Print Minimum PC Requirements: Core2 Duo 3.05 GHz CPU, 2GB RAM, 50GB free storage space, Internet connection Recommended PC Specifications 3 GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection |
| Weight and Dimensions (W x D x H) | 182" x 52" x 75" (4,607 mm x 1,303 mm x 1,886 mm) Weight: 1,625 lb (736 kg) |
| Temperature | Operating: 59˚ to 95˚F (15˚ to 35˚C) Operating (recommended): 59˚ to 77˚F (15˚ to 25˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 40% – 60% (no condensation) |
| Power Consumption | Printing: Approx. 3.9 kW or less |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC 200 – 240 V x 2 Frequency: 50/60 Hz Current: 16.0 A x 2 |

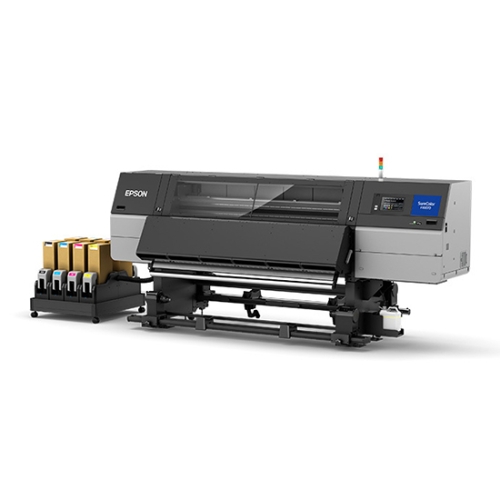

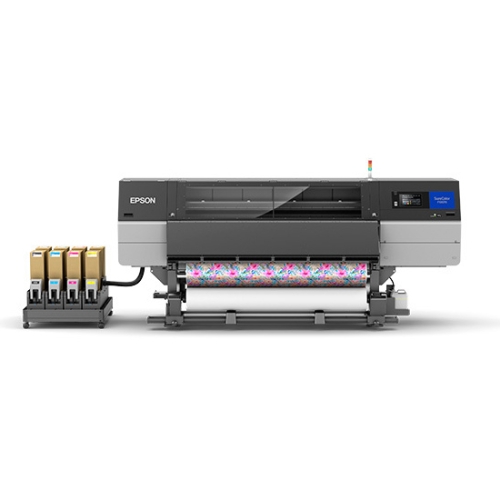

Epson SureColor F10070 Industrial Dye-Sublimation Printer
- Product Code: EP54401
Achieve industrial reliability and round-the-clock productivity, all at a low total cost of ownership, with the breakthrough SureColor® F10070 printer. Our most advanced dye-sublimation printer to date, the F10070 features four, all-new 4.7" PrecisionCore® printheads to deliver roll-to-roll performance at speeds up to 2,700 sqft/hr1. Designed with versatility in mind, the F10070 consistently produces astounding-quality textiles, apparel and more, using vibrant UltraChrome® DS Ink Technology. It also offers an array of features to maximize efficiency and minimize downtime, including user-replaceable printheads and a low-cost, high-capacity replaceable ink pack system that holds up to 20 L of ink per colour for longer print runs with less user intervention.
SPECIFICATION :
| Printing Technology | Four advanced PrecisionCore microTFP drop-on-demand, inkjet printheads with nozzle verficiation technology |
| Ink Type | UltraChrome® DS with High-Density Black ink; 4-color |
| Ink Configuration | C, M, Y, HDK |
| Nozzle Configuration | C, M, Y, and HDK: 3,200 nozzles each |
| Droplet Technology | Variable Droplet Technology |
| Maximum Resolution | 1200 x 1200 dpi |
| Printer Speed | Fashion/signage: Up to 2,700 sq ft/hr Sports apparel: Up to 1,600 sq ft/hr |
| Ink Pack Fill Volume | C, M, Y, and HDK: Dual 3 L or 10 L packs each (Hot Swap) |
| Included Ink in the Box | C, M, Y, HDK: 2 x 3 L ink packs each |
| Single Roll-to-Roll | Up to 76.7" wide |
| Roll Media Core | 2" or 3" diameter |
| Maximum Roll Diameter | Up to 9.8" |
| Maximum Roll Weight | Up to 132 lb |
| Media Thickness | From 22 gsm to 1 mm thick |
| Take-Up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Maximum Paper Width | 76.7" |
| Minimum Paper Width | 11.8" |
| Left/Right Margins | 0.20" (0.40" total) |
| Maximum Printable Width | Up to 63.6" |
| Printer Interfaces | Hi-Speed USB 3.0 (1 port) 1000Base-T Ethernet (1 port) |
| Operating Systems | Windows® 10 and 8.1 Epson Edge Print Minimum PC Requirements: Core2 Duo 3.05 GHz CPU, 2GB RAM, 50GB free storage space, Internet connection Recommended PC Specifications 3 GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection |
| Weight and Dimensions (W x D x H) | 182" x 52" x 75" (4,607 mm x 1,303 mm x 1,886 mm) Weight: 1,625 lb (736 kg) |
| Temperature | Operating: 59˚ to 95˚F (15˚ to 35˚C) Operating (recommended): 59˚ to 77˚F (15˚ to 25˚C) |
| Relative Humidity | Operating: 20% – 80% (no condensation) Operating (Recommended): 40% – 60% (no condensation) |
| Power Consumption | Printing: Approx. 3.9 kW or less |
| Electrical Requirements | Printer: Requires two outlets Voltage: AC 200 – 240 V x 2 Frequency: 50/60 Hz Current: 16.0 A x 2 |
- Brand: Epson
- Availability: In Stock
USD 42,500.00
Tags:Epson Printer
