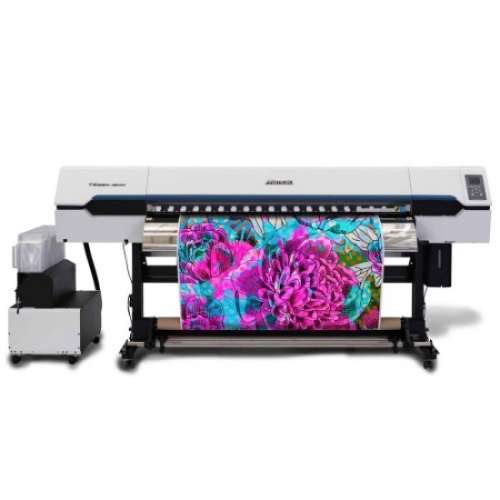

MIMAKI TS330-1600 SUBLIMATION PRINTER

SPECIFICATIONS

Model

TS330-1600

Print head

On-demand piezo head (2 staggered layout)

Print resolution

300, 600, 900, 1200 dpi

Print gap

By manual 3 levels (3.0/3.5/4.0 mm)

Ink

Type/Color: Sublimation ink Sb411 (Bl, M, Y, K, Lbl, Lm, Lk), Sb410 (Fp, Fy)
Capacity: 2L Ink pack / 10 kg Ink tank *1

Maximum print width

1,610 mm (63.4")

Media

Maximum width: 1,620 mm (63.8")
Thickness: 1 mm or lower
Roll diameter: φ250 mm or less
Roll weight: 45 kg or less
Roll inside diameter: 2 inch / 3 inch

Media cutting

Auto cutting by cutter of head unit *2

Interface

Ethernet 1000 BASE-T / (USB2.0 Hi-speed)

Certifications

VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM, EAC, KC, UKCA

Power supply

Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz

Power consumption

Max.: 1,440 W or less / Standard: 800 W

Operational environment

Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level

Dimensions (W×D×H)

3,170 x 820 x 1,305 mm (124.8 x 32.3 x 51.4")

Weight

240 kg (529.1 lb)
