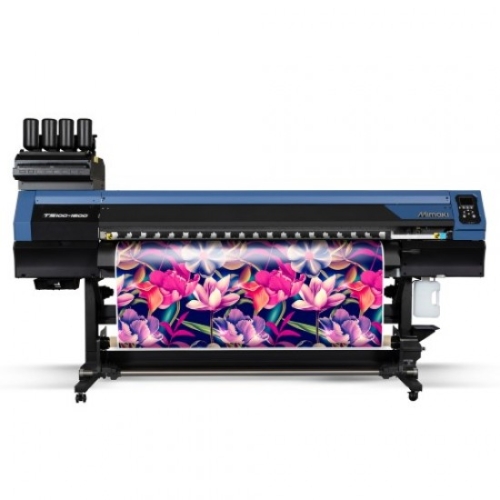

MIMAKI TS100-1600

Model

TS100-1600

Print head

Two staggered, on-demand piezo heads

Print resolution

360 dpi, 600 dpi, 720 dpi, 900 dpi

Print Speed (4 Color Mode)

753 SqFt/Hr

Maximum Print Area

63.3″ (1610.0 mm)

Maximum media width

63.8″ (1620 mm)

Maximum Media Thickness

up to 0.04″ (1 mm)

Maximum Media Weight

Up to 99.2 pounds (45 kg)

Ink Type

U.S. & Canada – Sb610 | Mexico, Central & South America- Sb610

Interface

1000 Base-T Ethernet cable or USB2.0 cable

Power supply

AC100~120V/ 200~240V±10%, 50/60Hz±1Hz

Power consumption

INLET 1/2: 1,440W or less (AC100V environment) 1,920W or less (AC200V environment)

Operational Environment

Temperature: 20° – 30°C
Humidity: 35 – 65 % RH (Non condensing)

Dimensions (W × D × H)

109.3 x 27.6 x 58.1″ (2,775 x 700 x 1,475 mm)

Weight

366lb (166kg)

Certifications

VCCI class A, FCC class A,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, ENERGY STAR®, RCM, EAC
