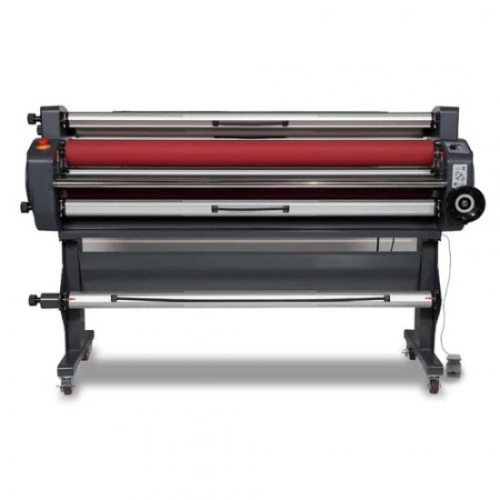

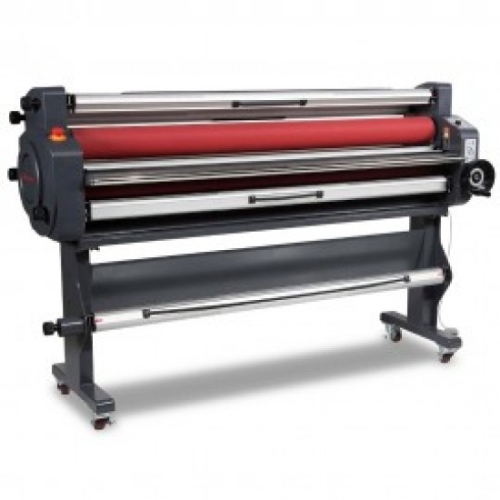

MIMAKI LA-160W

SPECIFICATIONS

Maximum processing width

62.2″ (1,580 mm)

Roller diameter

4.72″ (120 mm)

Processing thickness

1.38″ (35 mm max.)

Processing temperature

From room tempereture to 60 °C (140 °F)

Processing speed

0 to 295.3″ min (0 to 7500 mm/min)

Core diameter

3 inch

Power

USA: 120V | EU: 230V | other: 100V

Rated current

USA: 14A | EU: 8A | other: 15A

Power consumption

1800W or less

Preheating time

About 30 minutes

Pedal swich

One

Attachment shaft (with measure scale)

3″ x 5 pcs.

Dimensions (W×D×H)

78.7″ x 21.7″ x 50.4″ (2,000 x 550 x 1,280 mm)

Weight

451.9 lbs. (205 kg)
