Product Description

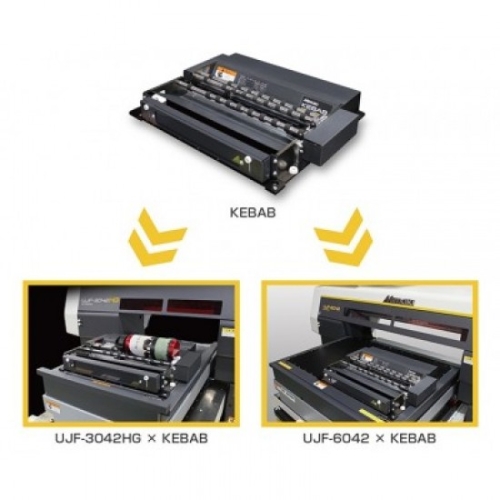

【UJF-3042HG / UJF-6042 OPTION】 Printing on cylindrical products
- 360-degree direct printing on cylindrical products!
- Printing on a wide range of material sizes
- Easy mounting on the UJF-3042HG, UJF-6042
- Expanding the possibility of decoration-printing on 3D object!
KEBAB Compatible printer model UJF-3042HG, UJF-6042 Rotary unit Rotary degree of
print material Over ±360 degree Rotation system Rollers under print material Print material Applicable objects Cylindrical objects (uneven surface may affect rotation) Printable size Diameter：10mm～110mm (0.39in～4.33in)
* When the diameter is less than 64mm, attach a suction table.
Length：30mm～330mm (1.18in～12.99in) Maximum weight of
print material 3kg (6.61lb) Printable area of UJF-3042HG on KEBAB Feeding direction (X): Entire surface of the material
Print head moving direction (Y): 300mm (11.81in) or narrower Interface Exclusive connector Installation
environment Temperature 20℃～35℃ Relative humidity 35～65％Rh Guaranteed
precision range 20℃～25℃ (Allowable rate of change of temperature: ±10℃/h) Dust level General office level Weight About 3kg (6.61lb) Dimensions（W×D×H） 410mm×330mm×57mm (16.14in×12.99in×2.24in)
- Some of the screens and printing samples in this website are artificial renderings.
- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of their respective owners.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
- 360-degree direct printing on cylindrical products!
- Printing on a wide range of material sizes
- Easy mounting on the UJF-3042HG, UJF-6042
- Expanding the possibility of decoration-printing on 3D object!
| KEBAB | ||
|---|---|---|
| Compatible printer model | UJF-3042HG, UJF-6042 | |
| Rotary unit | Rotary degree of print material | Over ±360 degree |
| Rotation system | Rollers under print material | |
| Print material | Applicable objects | Cylindrical objects (uneven surface may affect rotation) |
| Printable size | Diameter：10mm～110mm (0.39in～4.33in) * When the diameter is less than 64mm, attach a suction table. Length：30mm～330mm (1.18in～12.99in) | |
| Maximum weight of print material | 3kg (6.61lb) | |
| Printable area of UJF-3042HG on KEBAB | Feeding direction (X): Entire surface of the material Print head moving direction (Y): 300mm (11.81in) or narrower | |
| Interface | Exclusive connector | |
| Installation environment | Temperature | 20℃～35℃ |
| Relative humidity | 35～65％Rh | |
| Guaranteed precision range | 20℃～25℃ (Allowable rate of change of temperature: ±10℃/h) | |
| Dust level | General office level | |
| Weight | About 3kg (6.61lb) | |
| Dimensions（W×D×H） | 410mm×330mm×57mm (16.14in×12.99in×2.24in) | |
- Some of the screens and printing samples in this website are artificial renderings.
- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of their respective owners.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
Mimaki KEBAB UJF-3042HG / UJF-6042 OPTION
- Product Code: MM18584
Product Description
【UJF-3042HG / UJF-6042 OPTION】 Printing on cylindrical products
- 360-degree direct printing on cylindrical products!
- Printing on a wide range of material sizes
- Easy mounting on the UJF-3042HG, UJF-6042
- Expanding the possibility of decoration-printing on 3D object!
KEBAB Compatible printer model UJF-3042HG, UJF-6042 Rotary unit Rotary degree of
print material Over ±360 degree Rotation system Rollers under print material Print material Applicable objects Cylindrical objects (uneven surface may affect rotation) Printable size Diameter：10mm～110mm (0.39in～4.33in)
* When the diameter is less than 64mm, attach a suction table.
Length：30mm～330mm (1.18in～12.99in) Maximum weight of
print material 3kg (6.61lb) Printable area of UJF-3042HG on KEBAB Feeding direction (X): Entire surface of the material
Print head moving direction (Y): 300mm (11.81in) or narrower Interface Exclusive connector Installation
environment Temperature 20℃～35℃ Relative humidity 35～65％Rh Guaranteed
precision range 20℃～25℃ (Allowable rate of change of temperature: ±10℃/h) Dust level General office level Weight About 3kg (6.61lb) Dimensions（W×D×H） 410mm×330mm×57mm (16.14in×12.99in×2.24in)
- Some of the screens and printing samples in this website are artificial renderings.
- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of their respective owners.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
- 360-degree direct printing on cylindrical products!
- Printing on a wide range of material sizes
- Easy mounting on the UJF-3042HG, UJF-6042
- Expanding the possibility of decoration-printing on 3D object!
| KEBAB | ||
|---|---|---|
| Compatible printer model | UJF-3042HG, UJF-6042 | |
| Rotary unit | Rotary degree of print material | Over ±360 degree |
| Rotation system | Rollers under print material | |
| Print material | Applicable objects | Cylindrical objects (uneven surface may affect rotation) |
| Printable size | Diameter：10mm～110mm (0.39in～4.33in) * When the diameter is less than 64mm, attach a suction table. Length：30mm～330mm (1.18in～12.99in) | |
| Maximum weight of print material | 3kg (6.61lb) | |
| Printable area of UJF-3042HG on KEBAB | Feeding direction (X): Entire surface of the material Print head moving direction (Y): 300mm (11.81in) or narrower | |
| Interface | Exclusive connector | |
| Installation environment | Temperature | 20℃～35℃ |
| Relative humidity | 35～65％Rh | |
| Guaranteed precision range | 20℃～25℃ (Allowable rate of change of temperature: ±10℃/h) | |
| Dust level | General office level | |
| Weight | About 3kg (6.61lb) | |
| Dimensions（W×D×H） | 410mm×330mm×57mm (16.14in×12.99in×2.24in) | |
- Some of the screens and printing samples in this website are artificial renderings.
- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of their respective owners.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
- Brand: Mimaki
- Availability: In Stock
USD 1,700.00
Tags:Mimaki Printer
