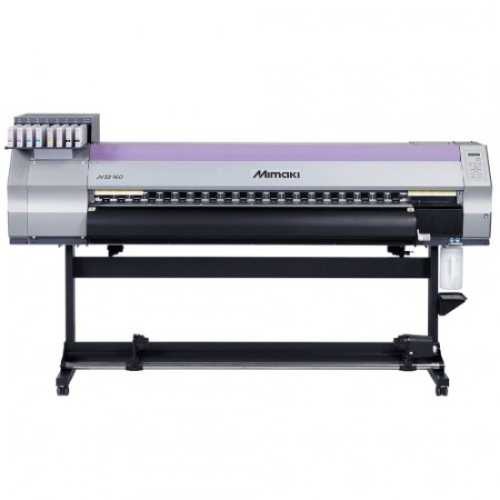

MIMAKI JV33-160

SPECIFICATIONS

Model

JV33-160

Head

On-demand Piezo head (180nozzles x 8 lines) x1 head

Maximum print width

1,610mm (63.3")

Printing resolution

540,720,1,440dpi

Printing mode (scan x feed)

540 x 720dpi, 540 x 900dpi, 540 x 1,080dpi
720 x 540dpi, 720 x 720dpi, 720 x 1,080dpi,
720 x 1,440dpi
1,440 x 1,440dpi

Ink

Ink:
Exclusive Solvent ink: ES3 ink, SS21 ink
Exclusive aqueous pigment ink
Exclusive Sublimation ink
Capacity:
4-color mode: 440cc cartridge x 2/color, 880cc/color
6-color mode: 440cc cartridge x 1/color, 440cc/color

Media

Size: 1,620mm (63.9")
Roll weight: Less than 25kg (55.1lbs.)
Print surface: Roll inside diameter
Roll inside diameter: 2 inch or 3 inch

Media cutting

Cutting on Y direction by cutter at the head

Media heater

Triple stage intelligent heater (Pre/Print/Post)

Media Take-up device

Roll take-up device (standard), inside/outside selectable

Interface

USB2.0

Applicable standards

VCCI Kelas A , FCC Kelas A, UL 60950-1
CE Marking (EMC directive, Low voltage directive),
CB report

Power

AC100~120V±10%, AC220~240V±10%, 50/60Hz±1Hz

Power consumption

Less than 1,440 VA

Operation environments

Usable temperature:20°C~35°C (64~95°F),
Humidity:35~65%RH (No condensation)

Dimensions (W x D x H)

2,538 x 739 x 1,424mm
(99.9" x 29.1" x 56.1")

Weight

160kg (353lbs.)
