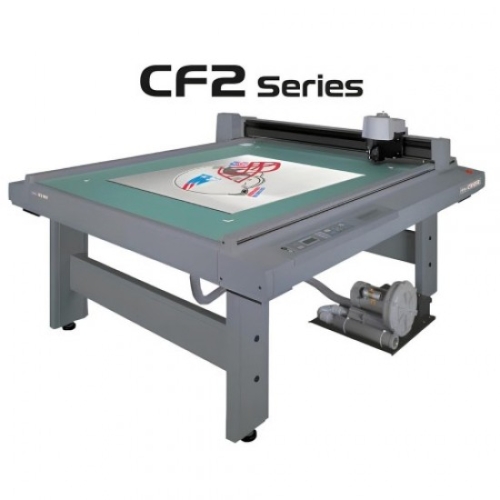

MIMAKI CF2-1218 FLATBED CUTTER

SPECIFICATIONS

Effective Plotting Area

CF2-0912: 47.2″ x 35.4″ (1200 x 900 mm)

CF2-1215: 59.1″ x 47.2″ (1500 x 1200 mm)

CF2-1218: 70.9″ x 47.2″ (1800 x 1200 mm)

Maximum Media Width

CF2-0912: 354.3″ (900 mm)

CF2-1215: 472.4″ (1200 mm)

CF2-1218: 472.4″ (1200 mm)

Maximum media thickness

CF2-0912: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm RT / RC: 20 mm)

CF2-1215: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm / RT / RC: 20 mm)

CF2-1218: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm / RT / RC: 20 mm)

Maximum Cut Speed

19.7″ (50cm)

Maximum Cut pressure (Metric grams)

Pen: 400g | Tangential: 1500g | High Pressure Tangential: 5000g | RC: 1500g

Cutter Types

Pen/swivel, Tangential, High-pressure Tangential, Reciprocating

Interface

RS-232C

Power supply

Single-phase (AC 100–120V / AC 220–240V±10%) 50/60Hz±1Hz”

Operational Environment

Temperature: 40° – 104° F (20-30° C)

Humidity: 35–75 % RH (Non condensing)

Dimensions (W × D × H)

CF2-0912: 69.3″ x 63.0″ x 43.3″ (176 x 160 x 110 cm)

CF2-1215: 81.1″ x 74.8″ x 43.3″ (206 x 190 x 110 cm)

CF2-1218: 92.9″ x 74.8″ x 43.3″ (236 x 190 x 110 cm)

Weight

CF2-0912: 308 lbs. (140 kg)

CF2-1215: 364 lbs. (165 kg)

CF2-1218: 397 lbs. (180 kg)
